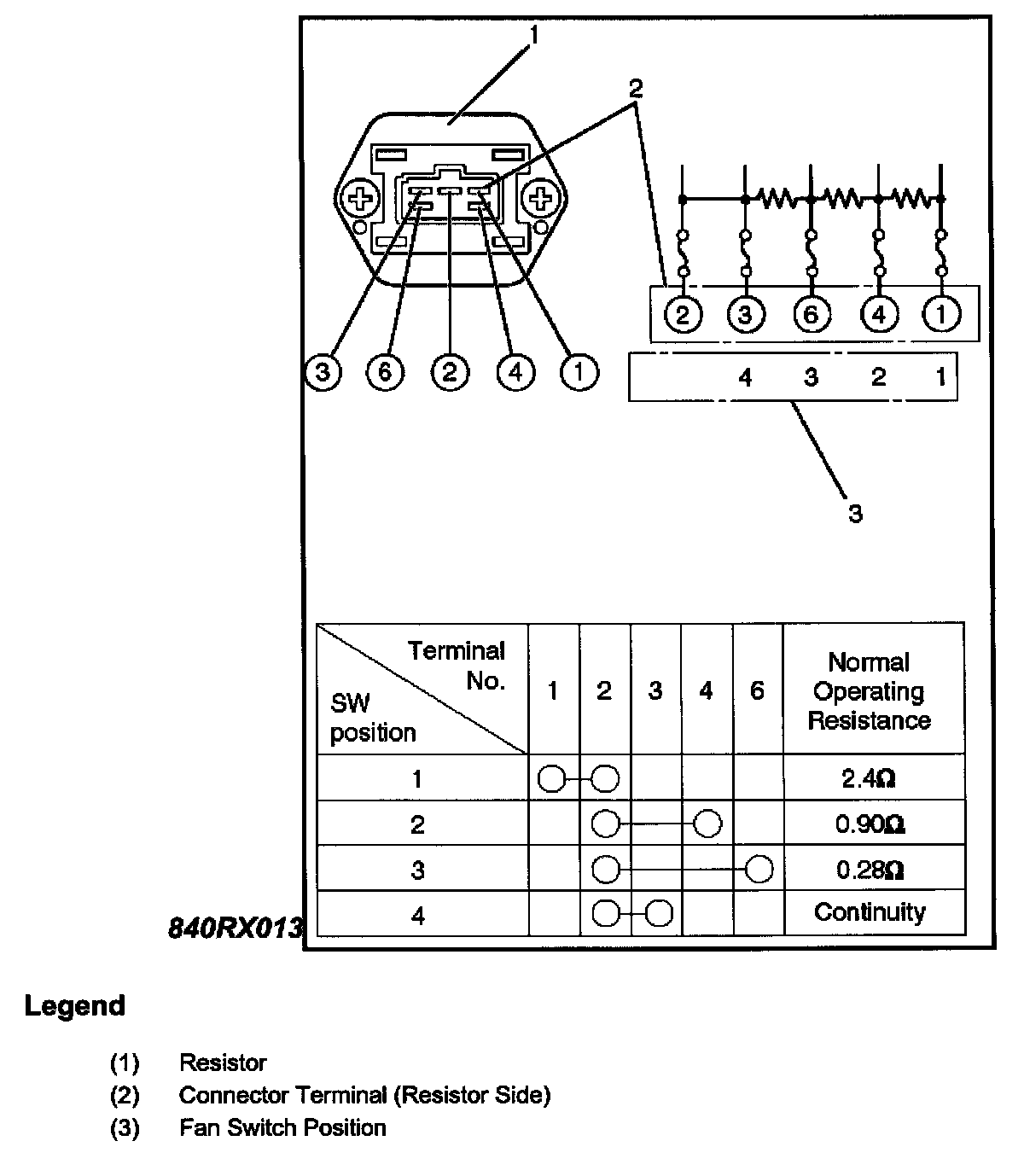

Blower Motor Resistor: Testing and Inspection




1. Disconnect the resistor (B-37) connector.
2. Check for continuity and resistance between the terminals of the resistors.
