Control Assembly: Description and Operation

Control Lever Assembly




The vehicle has cable-control-type to control by cable the mode and temperature of the heater unit and the mode door for the air source of the blower assembly.

Ventilation

Set "AIR SOURCE SELECT LEVER" to "FRESH" position and turn on the blower fan. Heating can be done in this lever position, sending in fresh air from outside. The blower fan also serves to deliver fresh outside air to the vehicle interior to assure adequate ventilation.

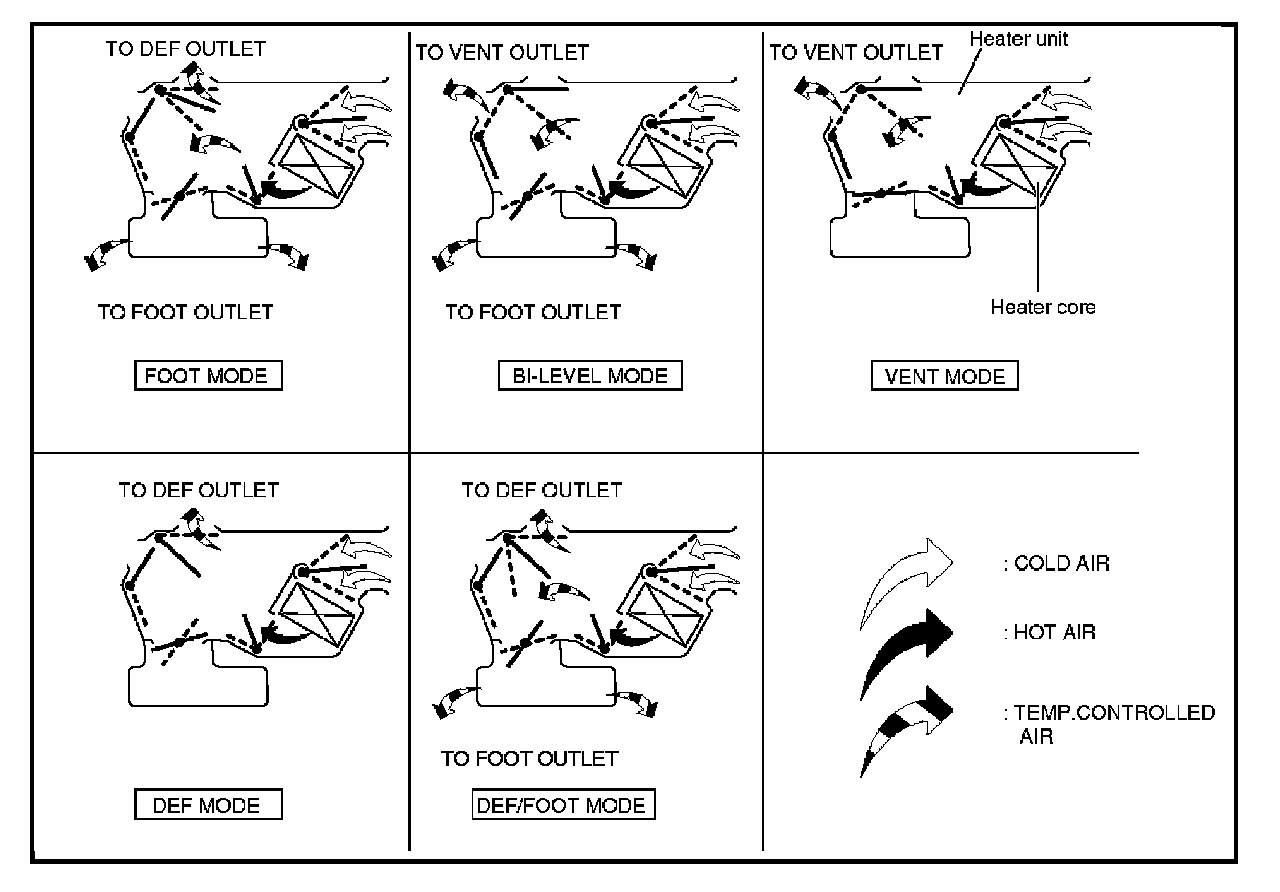

Air Select Lever




The air select knob allows you to direct heated air into the passenger compartment through different outlets.
1. Vent - In this position, air is discharged from the upper air outlet. Air quantity is controlled by the fan control lever.
2. Bi-level - In this position, air flow is divided between the upper air outlets and the floor air outlets, with warmed air delivered to the floor outlets than the air delivered to the upper air outlets when the temperature lever is in middle position.
3. Foot - In this position, air flow is delivered to the foot, while sending approx. a small amount of air to the windshield.
4. Def/Foot - In this position, airflow is delivered to the foot, while sending approx. 40% of total amount of air to the windshield.
5. Defrost - In this position, most of the air is delivered to the windshield and a small amount is delivered to the side windows.
Selecting this mode allows air conditioning system to work while the fan switch is turned to the on position, even is the A/C switch is off.

Moving the air source select lever to the "CIRC" position provides quickest heat delivery by closing the blower assembly mode door. In this position, outside air is not delivered to the passenger compartment.

Air Source Select Lever
The intake of the outside air and the circulation of the inside air are controlled by sliding this lever left or right.

Fan Control Lever
This controls the blower motor speed to regulate the amount of air delivered to the defrost, foot, and ventilation ducts:
1. Low
2. Medium Low
3. Medium High
4. High

Temperature Control Lever
When the temperature control knob is in the "COLD" position, the air mix door closes to block the flow air to the heater core.

When the temperature control knob is in the "HOT" position, the air mix door opens to allow air to pass through the heater core and heat the passenger compartment.

Placing the knob in the intermediate position will cause a lesser or greater amount of air to reach the heater core. In this mode the passenger compartment temperature can be regulated.

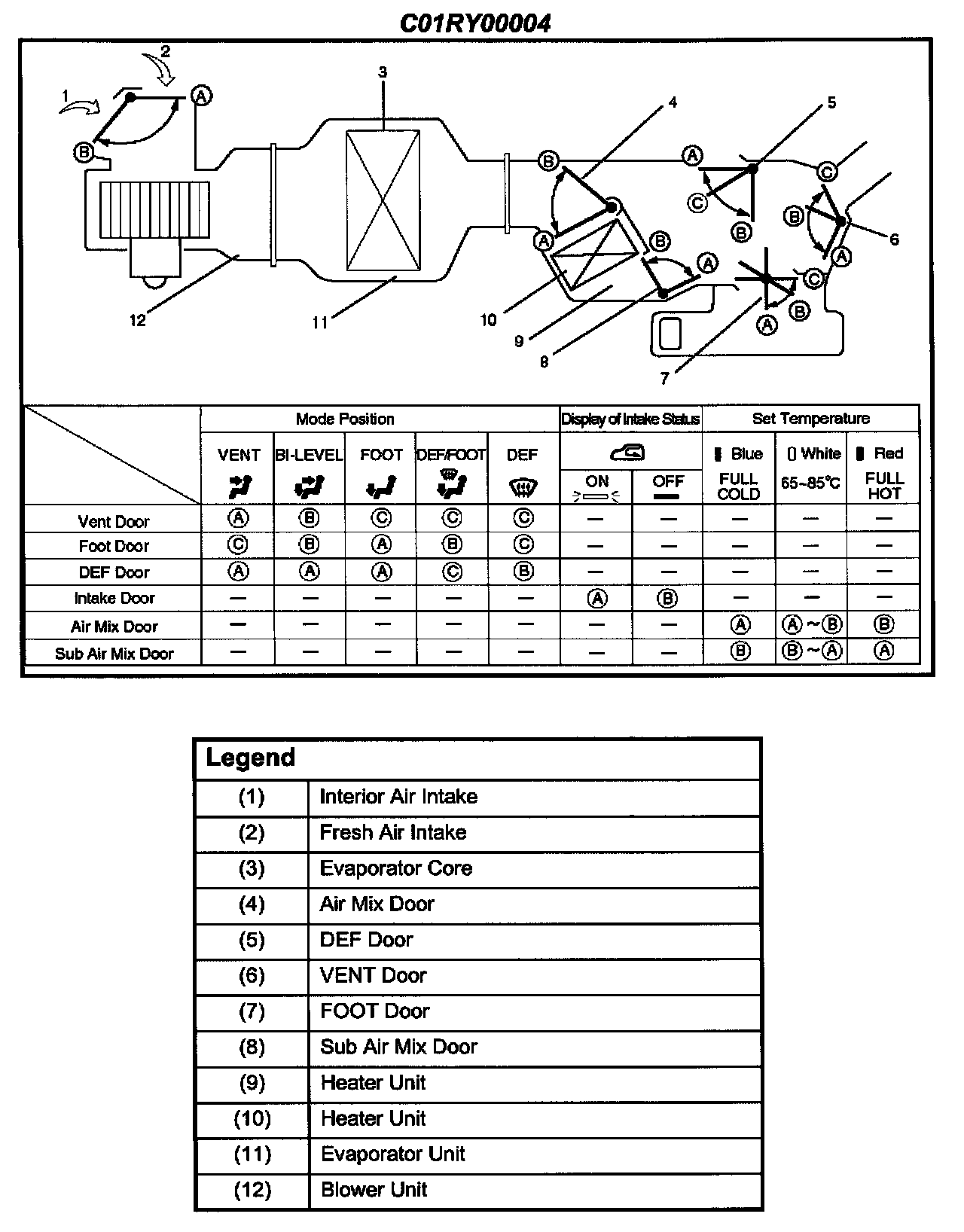

Part 1 Of 2:

Part 2 Of 2:

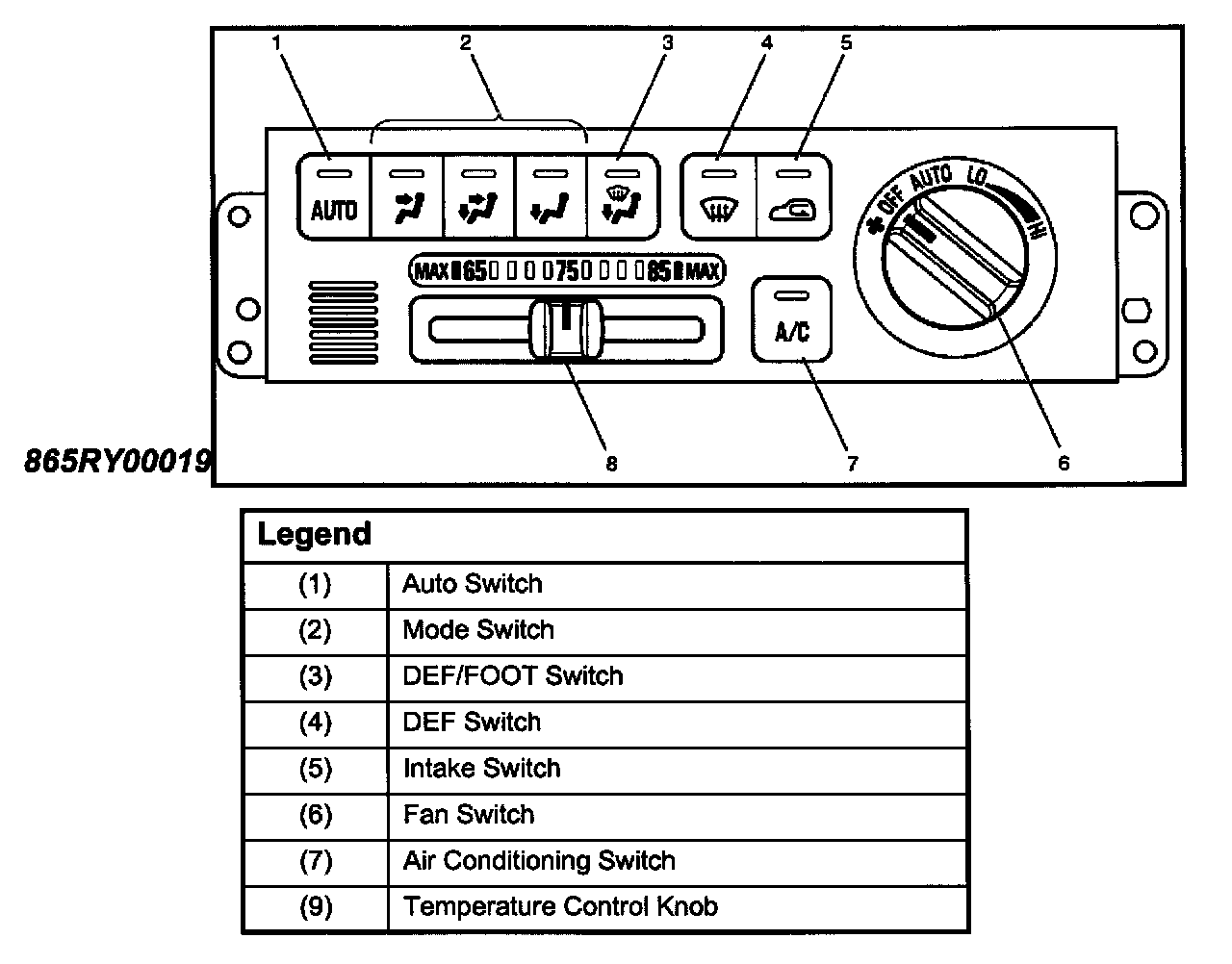

Operation and Functions of Control Panel Switches

Auto Switch
1. Pressing this switch turns on the automatic control mode. It resets all manual switches except that of the fan control. However, when the Manual REC is selected for the intake or the Manual Open is selected, the modes are maintained.
2. It causes the A/C (air conditioning) to enter the ON mode (this function is available only when the fan and the compressor are turned on due to the given temperature level of the outside air).

Indication
- The AUTO LED is turned off.
- Currently selected modes for the Mode and Intake are respectively indicated.
- The A/C LED remains turned on even if the compressor has been turned off due to the given temperature level of the outside air. Pressing the air conditioning switch in this state turns off the A/C LED.

Mode Switch
1. Pressing the VENT, B/L or FOOT switch selects the corresponding mode.
2. When the Auto is selected for the Mode and Intake, pressing the mode switch fixes the intake to the immediately preceding status.

Indication
- The AUTO LED is turned off.
- Currently selected blow port is indicated.




DEF Switch
Press this switch to select the DEF mode.




Indication
- The AUTO LED is turned off.




Intake Switch
Pressing the switch sequentially selects a different intake port in the following order:




Indication
- The Auto LED remains unaffected.
- The currently selected Intake port is indicated.

Fan Switch
1. Sets the fan to the specified mode.
2. Even when the fan switch is turned off, status display fro the Mode, Intakes is maintained.

Temperature Control Knob
1. This knob is operable only when the fan is turned on. It may be used for the MAX control of each block except the fan.
2. When the manual mode is selected for the fan control, this manual mode is maintained.




MAX Control

Indication
- As long as the MAX control is selected, the immediately preceding indication shall be maintained for the AUTO.
- The status display is provided for others.

Air Conditioning Switch
Pressing this switch turns the A/C control on or off. (The compressor remains turned off if the fan is turned off and also the compressor has been turned off because of the given temperature level of the outside air).

Indication
1. The A/C LED remains turned on even if the compressor has been turned off because of the given outside air temperature level. In this case, however, the AUTO or DEF switch must be turned on and the A/C On mode must also be turned on (by the MAX/C mode).
2. Pressing the A/C switch from the above state (1) turns off the A/C LED.
