Heater Bezel Illumination Bulb

Heater Bezel Illumination Bulb

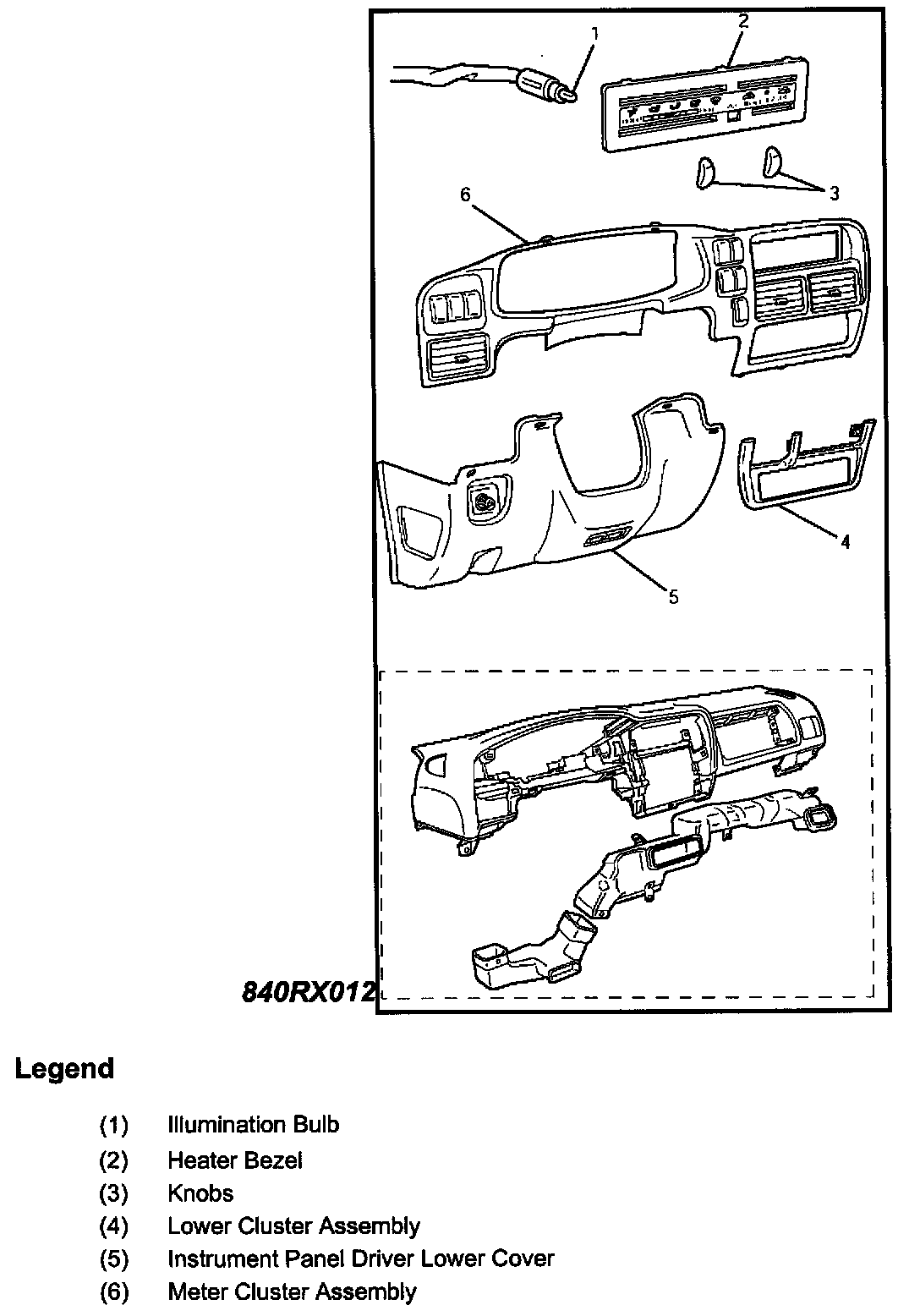

Heater Bezel Illumination Bulb and Associated Parts:

Removal
1. Disconnect the battery ground cable.
2. Remove instrument panel driver lower cover.
3. Remove lower cluster assembly.
4. Remove meter cluster assembly.
5. Remove knobs.
6. Remove heater bezel.
7. Remove illumination bulb.

Installation
To install, follow the removal steps in the reverse order.
