Home >> Isuzu >> 2000 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Evaporator Temperature Sensor / Switch >> Locations

Evaporator Temperature Sensor / Switch: Locations

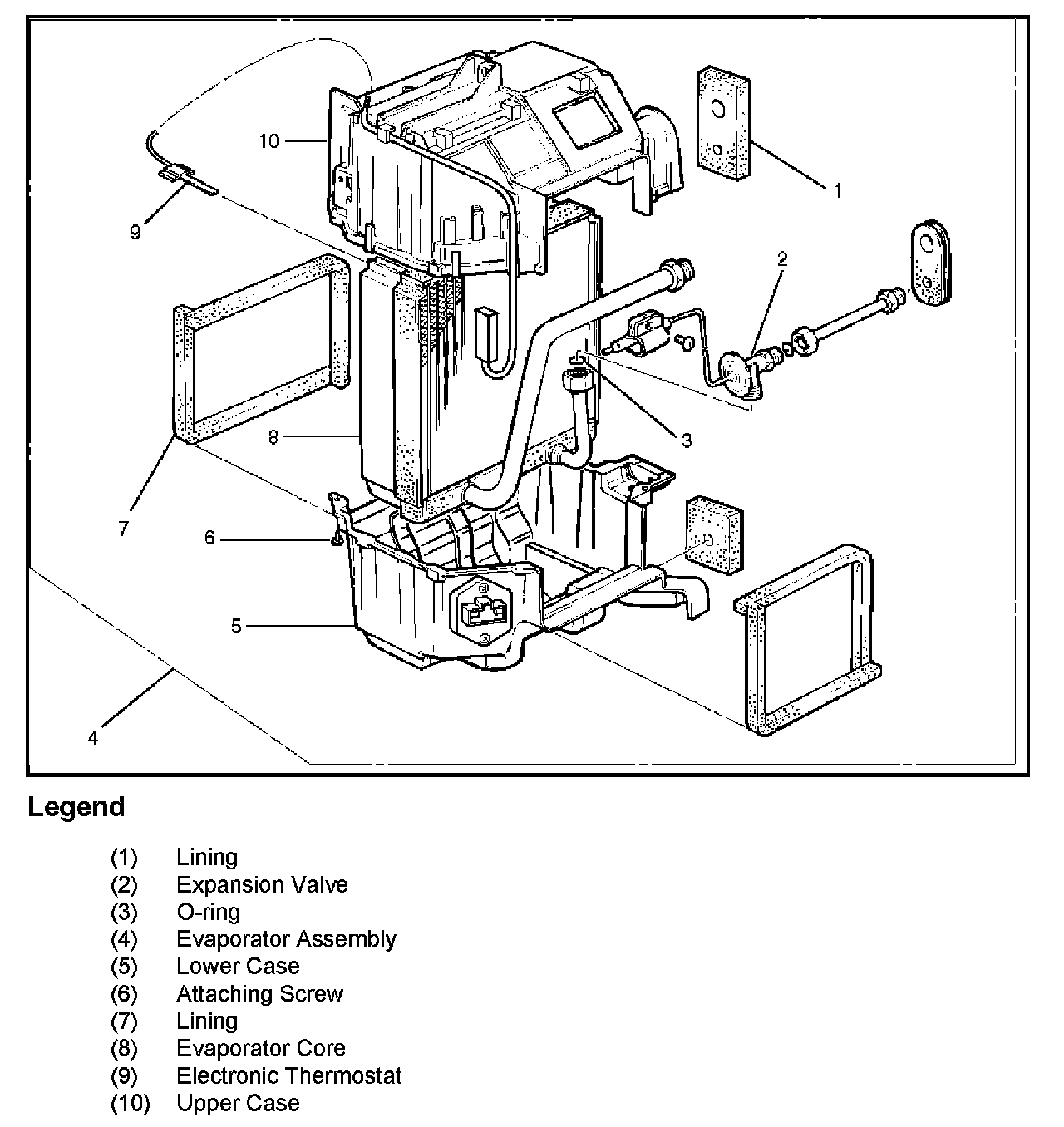

Electronic Thermostat, Evaporator Core and/or Expansion Valve - Disassembled View:
