Power Transistor HVAC: Service and Repair

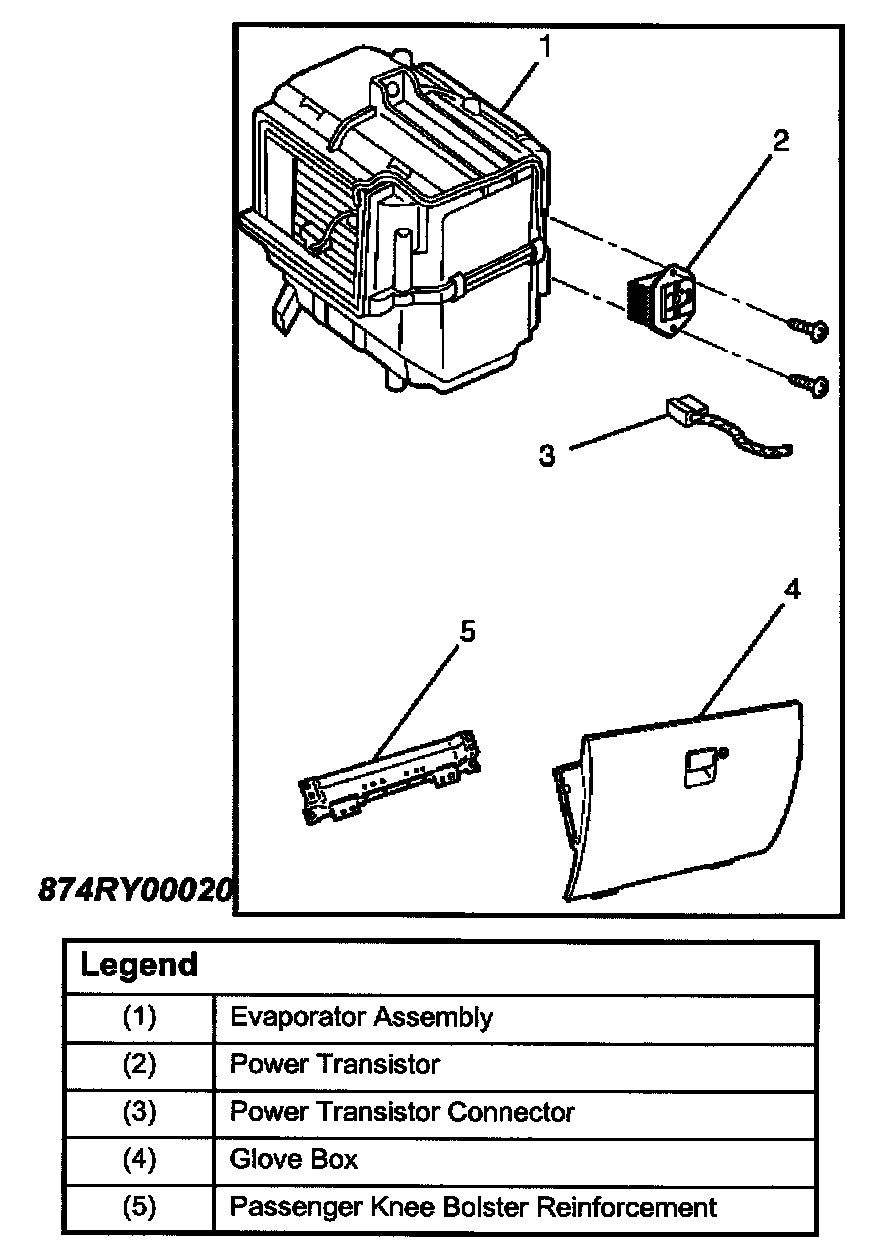

Power Transistor:

Removal
1. Remove glove box
2. Remove passenger knee bolster reinforcement
3. Disconnect the power transistor connector
4. Remove power transistor

Installation
To install, follow the removal step in reverse order.
