Home >> Isuzu >> 2000 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations

Refrigerant Pressure Sensor / Switch: Locations

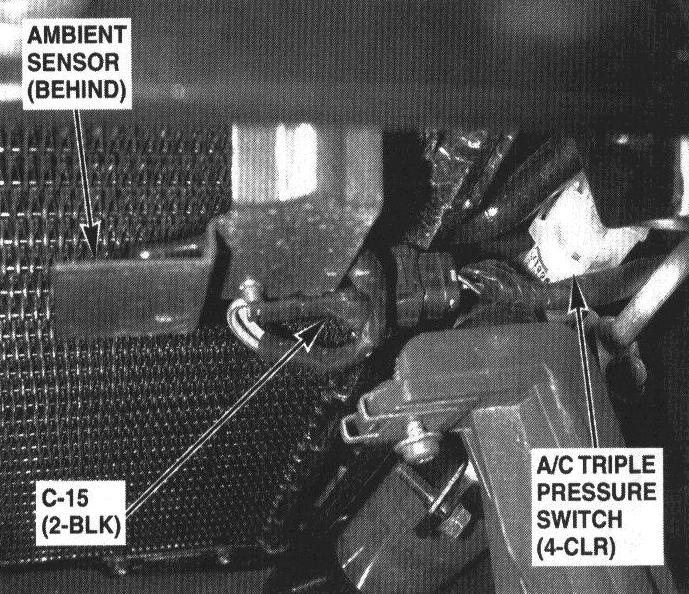

7 - Left Front of Vehicle (Grille Removed):



Pressure Switch And Associated Parts:
