Refrigerant Pressure Sensor / Switch: Testing and Inspection

A/C Off:

A/C On:

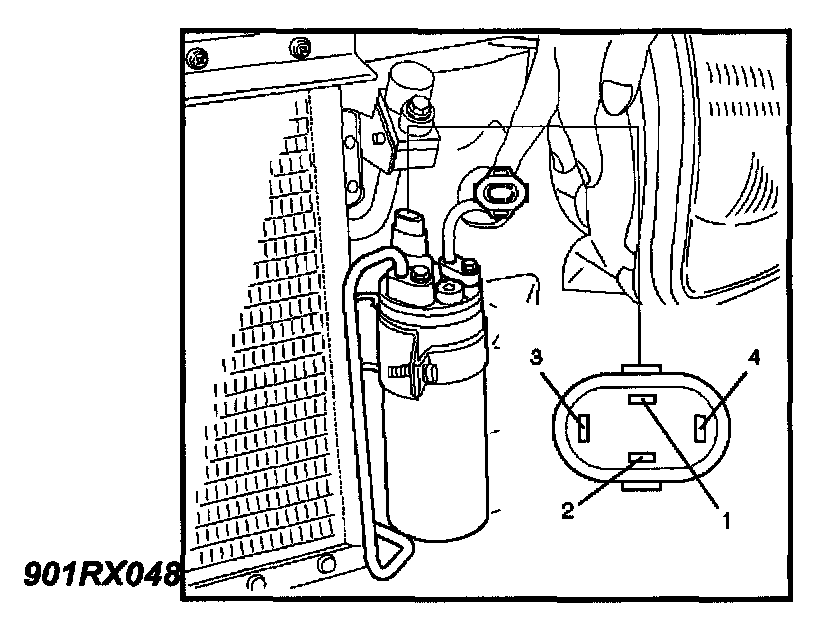

Triple Pressure Switch
1. Disconnect the connector and check for continuity between pressure switch side connector terminals (1) and (2).

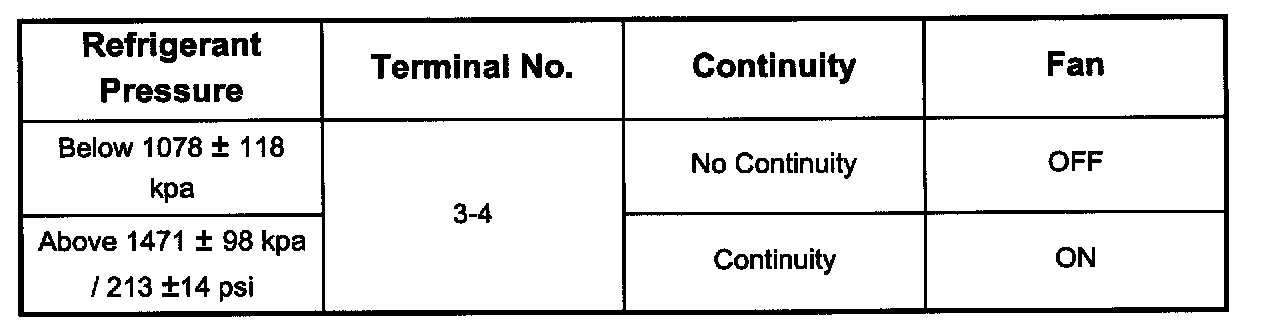

2. Reconnect the connector to activate the A/C switch, and check to see if there is continuity between the chassis side connector terminals and the fan operates.
