Drive Belt: Service and Repair

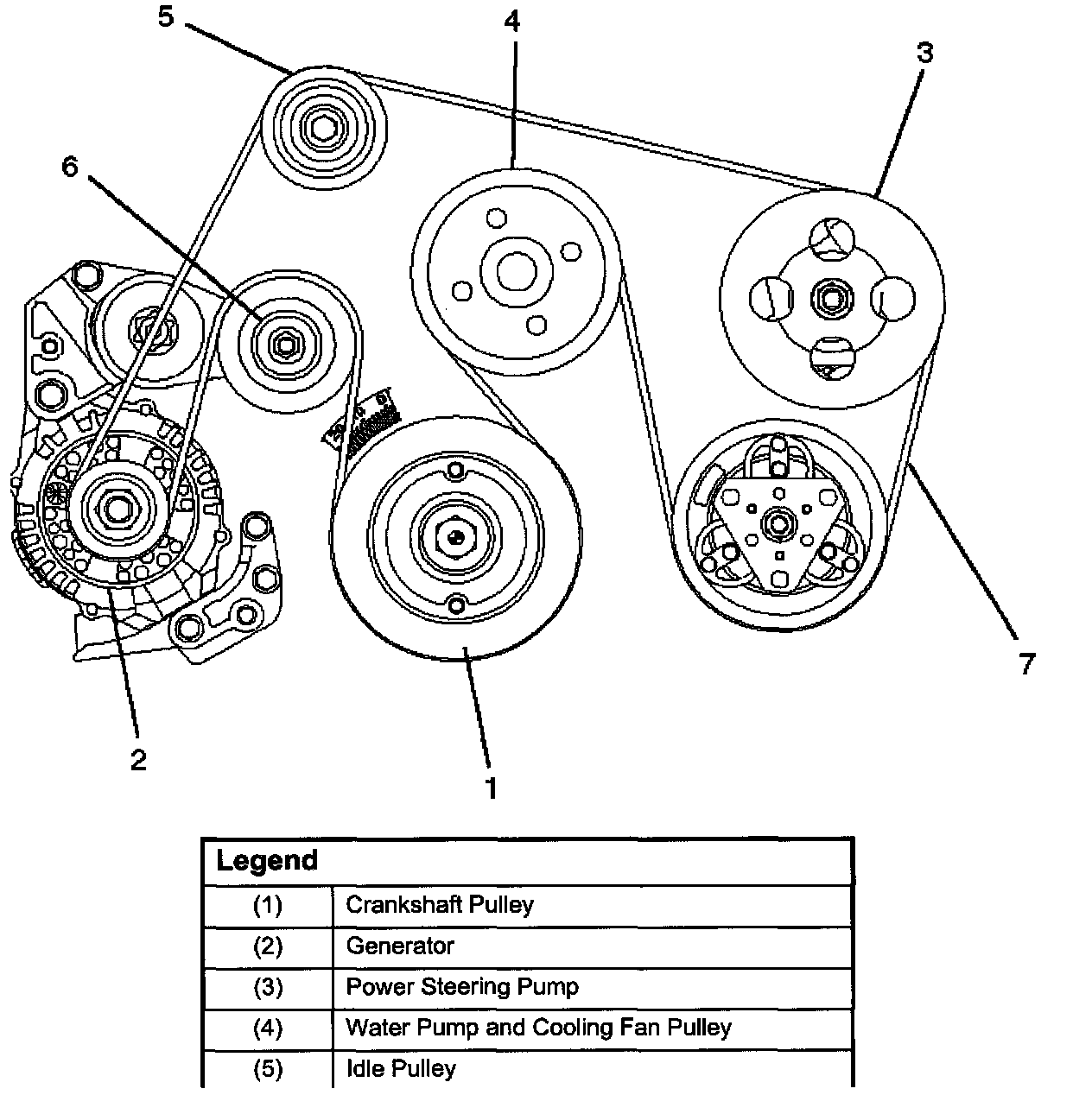

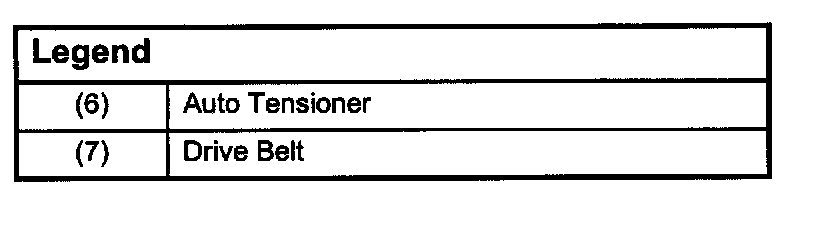

Drive Belt and Associated Parts

The drive belt adjustment is not required with this automatic drive belt tensioner system.

Inspection
Check drive belt for wear or damage, and replace with a new one as necessary.

Installation
1. Install cooling fan assembly and tighten bolts/nuts to the specified torque.
Torque: 22 Nm (16 ft. lbs.) for fan pulley and fan bracket.
Torque: 10 Nm (88.5 inch lbs.) for fan and clutch assembly.
