Electrical Diagrams

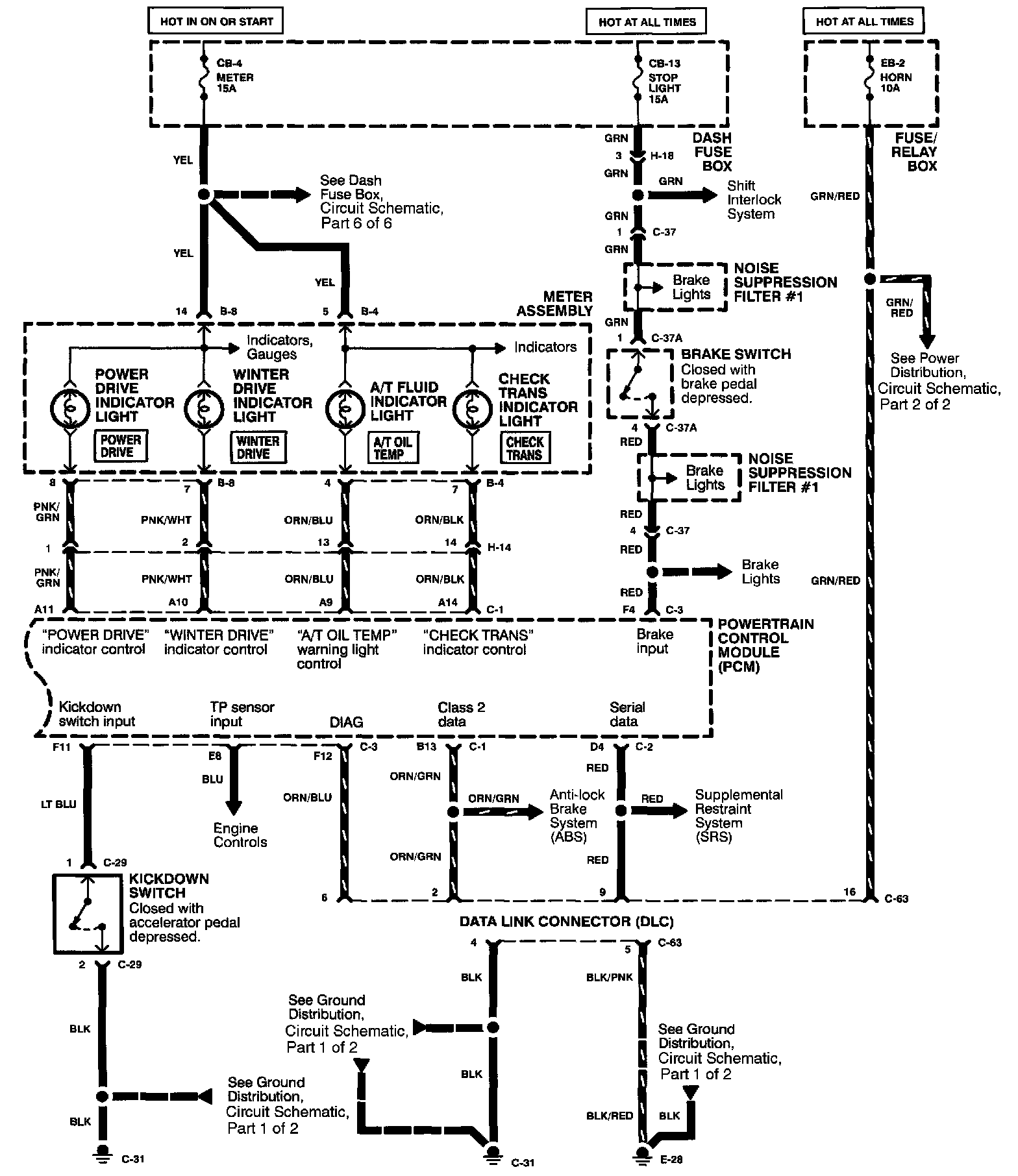

Automatic Transmission Controls (1 of 4):

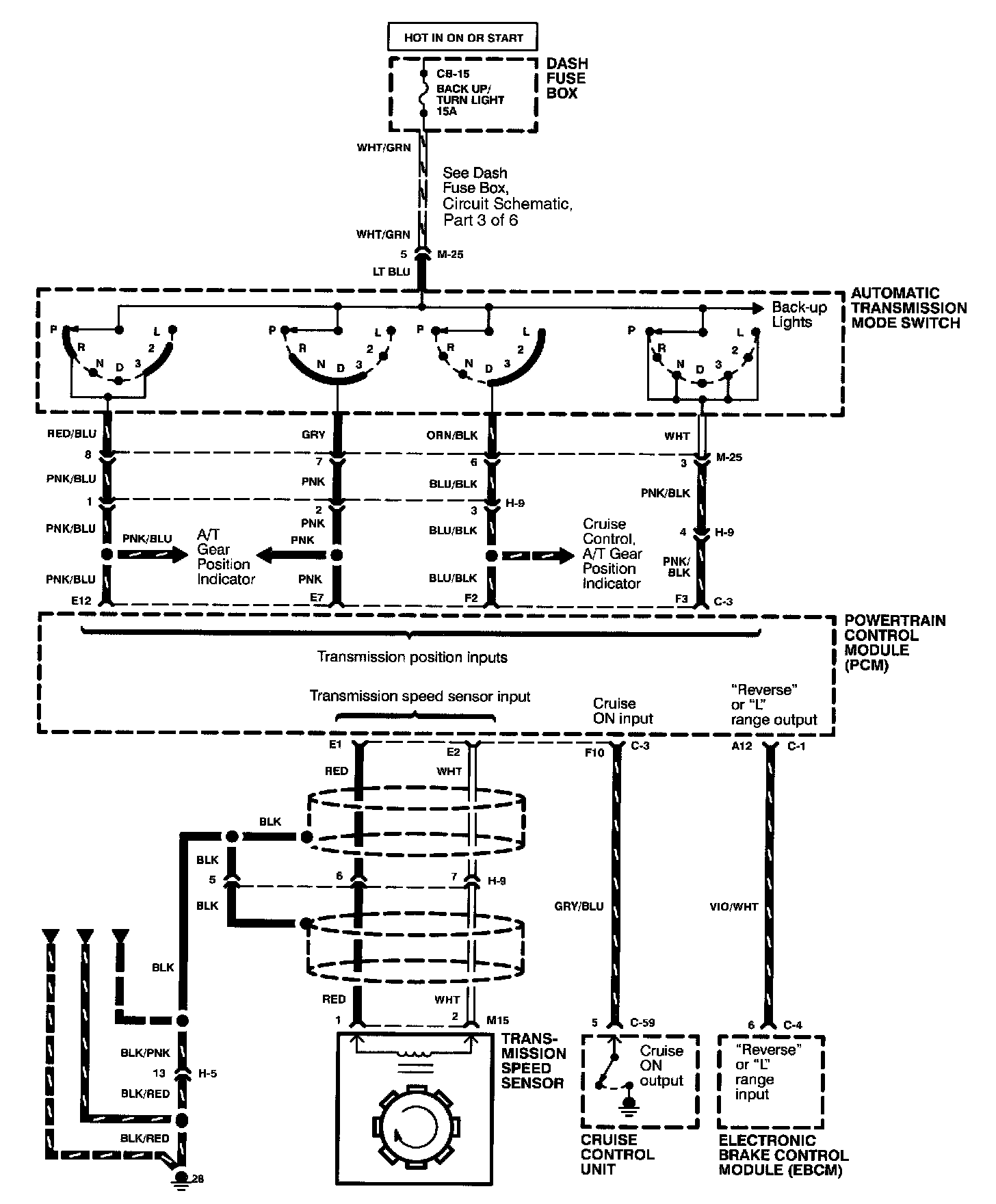

Automatic Transmission Controls (2 of 4):

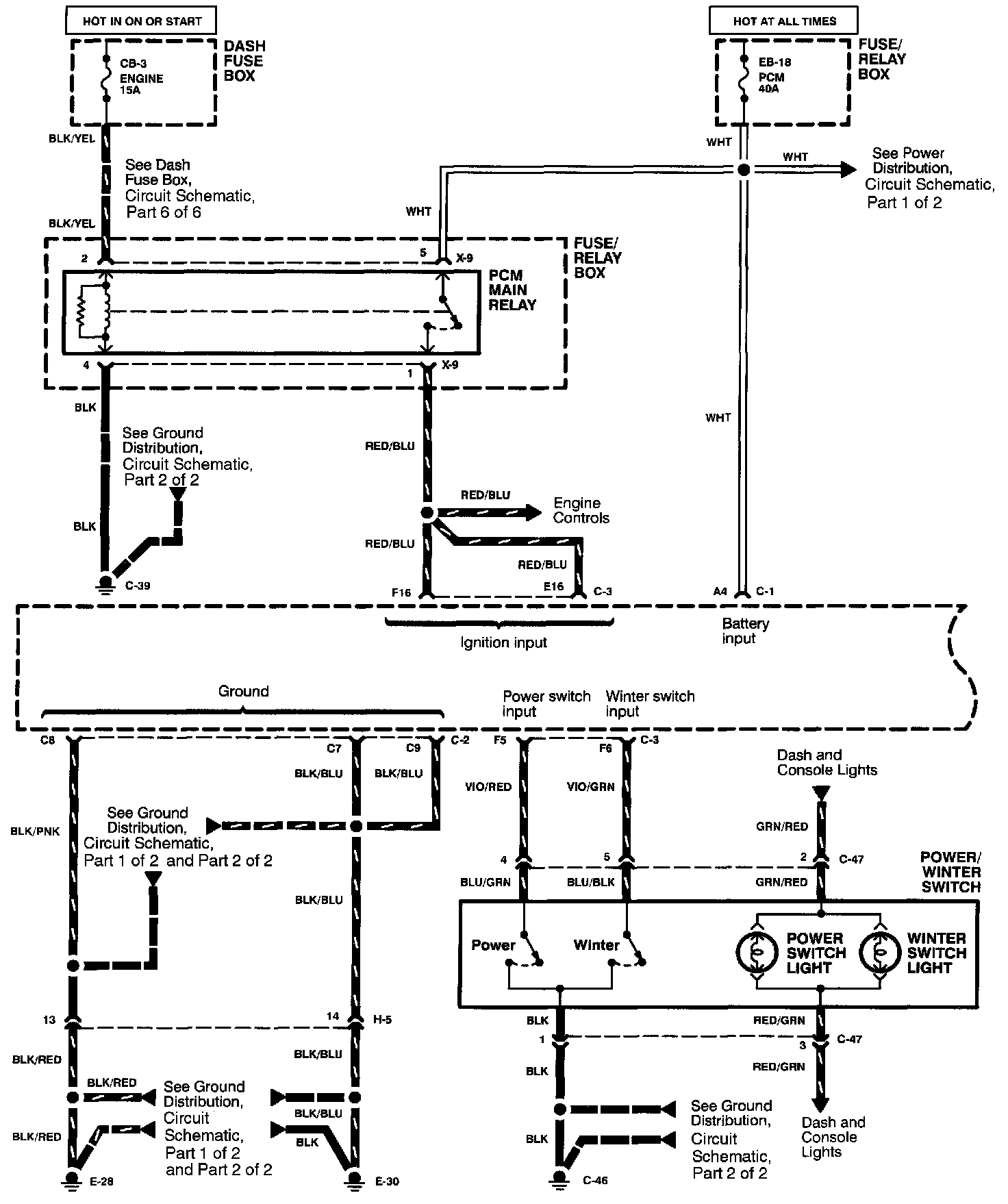

Automatic Transmission Controls (3 of 4):

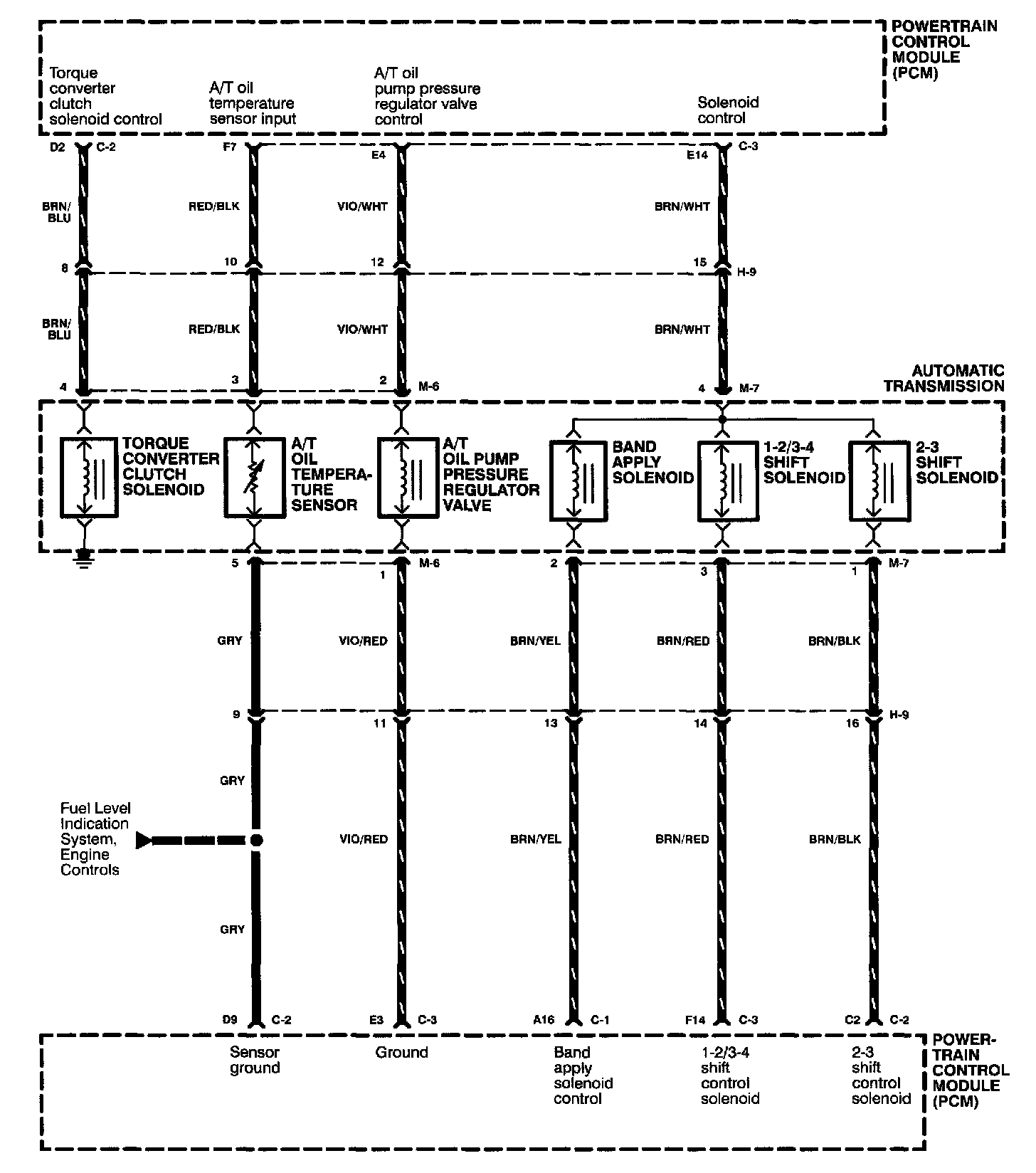

Automatic Transmission Controls (4 of 4):
