Removal and Installation

Removal
1. Battery ground cable.

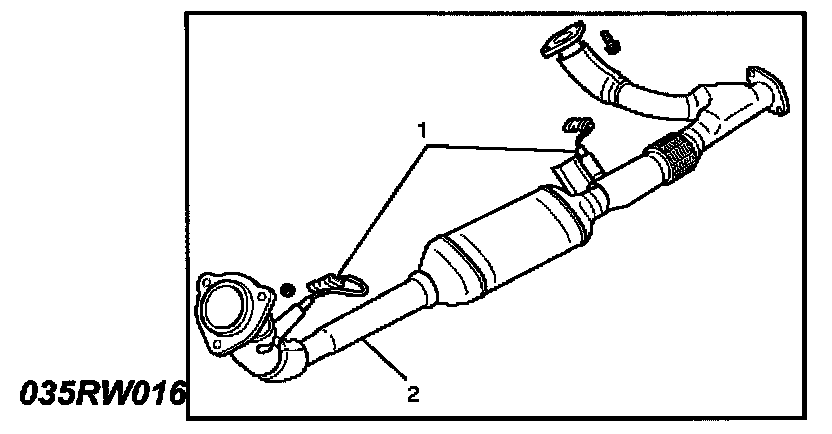

2. Disconnect Heated Heated Oxygen (O2) Sensor connectors (1).
3. Remove exhaust front left pipe (2).




4. Refer to removal procedure for "Engine Exhaust".

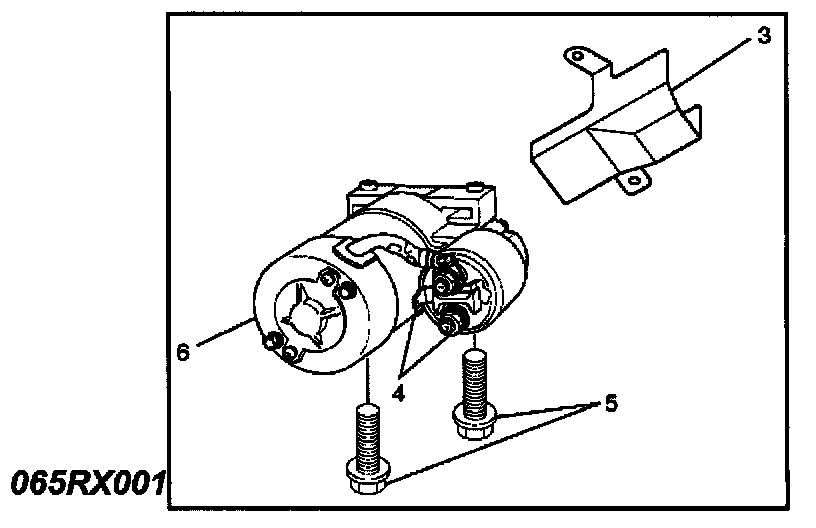

5. Remove heat protector (3).
6. Disconnect starter wiring connector from terminals "B" and "S"(4).
7. Remove starter assembly mounting bolts on inside and outside (5).




8. Remove starter assembly toward the bottom of engine (6).

Installation
1. Install starter assembly (6).
2. Install mounting bolts and tighten bolts to specified torque (5).
Torque: 40 Nm (30 lb.ft)
3. Reconnect the connectors to terminals "B" and "S" and tighten Terminals "B" to specified torque.

Torque: 9 Nm (80 lb in)

4. Install heat protector (3).




5. Install exhaust front left pipe and tighten bolts and nuts to specified torque (2).

Stud Nuts
Torque: 67 Nm (49 lb.ft)

Nuts
Torque: 43 Nm (32 lb.ft)




6. Connect O2 Sensor connectors (1).
7. Reconnect the battery ground cable.
