Extension Housing: Service and Repair

Rear Oil Seal (Extension Housing)
Removal
1. Remove transfer case assembly from the vehicle. Refer to Transfer Case.

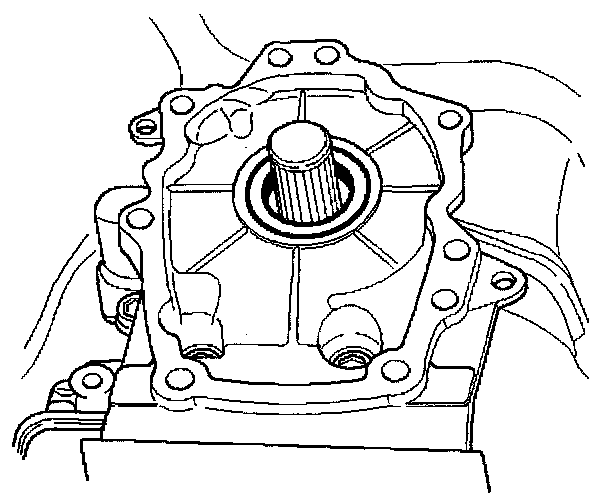

2. Remove rear oil seal from transmission extension housing.

Installation
1. Use J-36797 extension housing oil seal installer, and install the rear oil seal to the transmission extension housing.
2. Install the transfer case assembly to the vehicle. Refer to Transfer Case.
