Windshield Washer Motor: Service and Repair

Removal
1. Disconnect the battery ground cable.

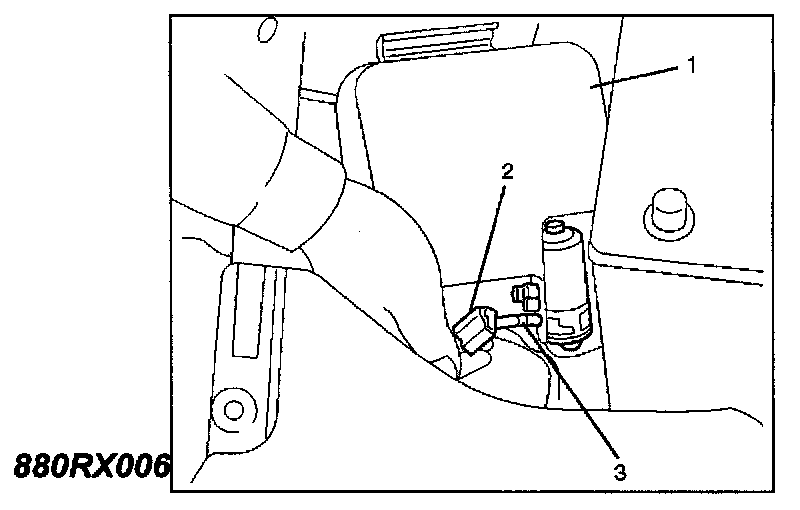

2. Remove the washer tank (1)
- Disconnect the washer motor connector (2).
- Disconnect the washer hose (3).




- Pull out the washer tank assembly (1).

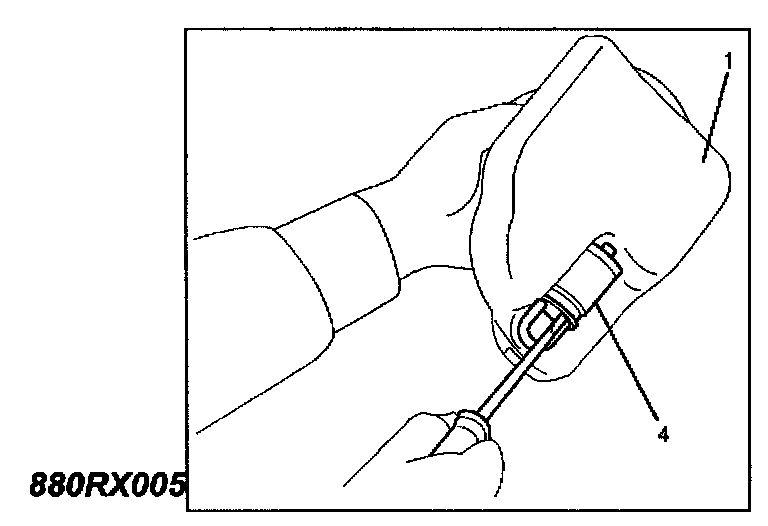

3. Remove the washer motor (4).
- Pull the washer motor from the washer tank (1).

Installation
To install, follow the removal steps in the reverse order.
