Wiper Relay: Service and Repair

Removal
1. Disconnect the battery ground cable.

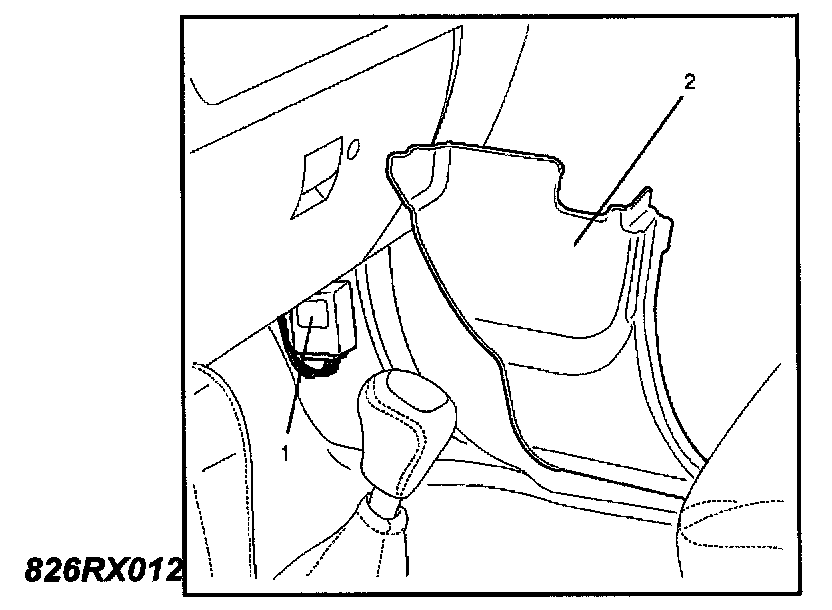

2. Remove the dash side trim panel (RH) (2).
3. Disconnect the connector.




4. Remove a fixing nut to remove the intermittent relay (1).

Installation
To installation, follow the removal steps in the reverse order.
