Home >> Isuzu >> 2001 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Body and Frame >> Locks >> Door Locks >> Locations

Door Locks: Locations

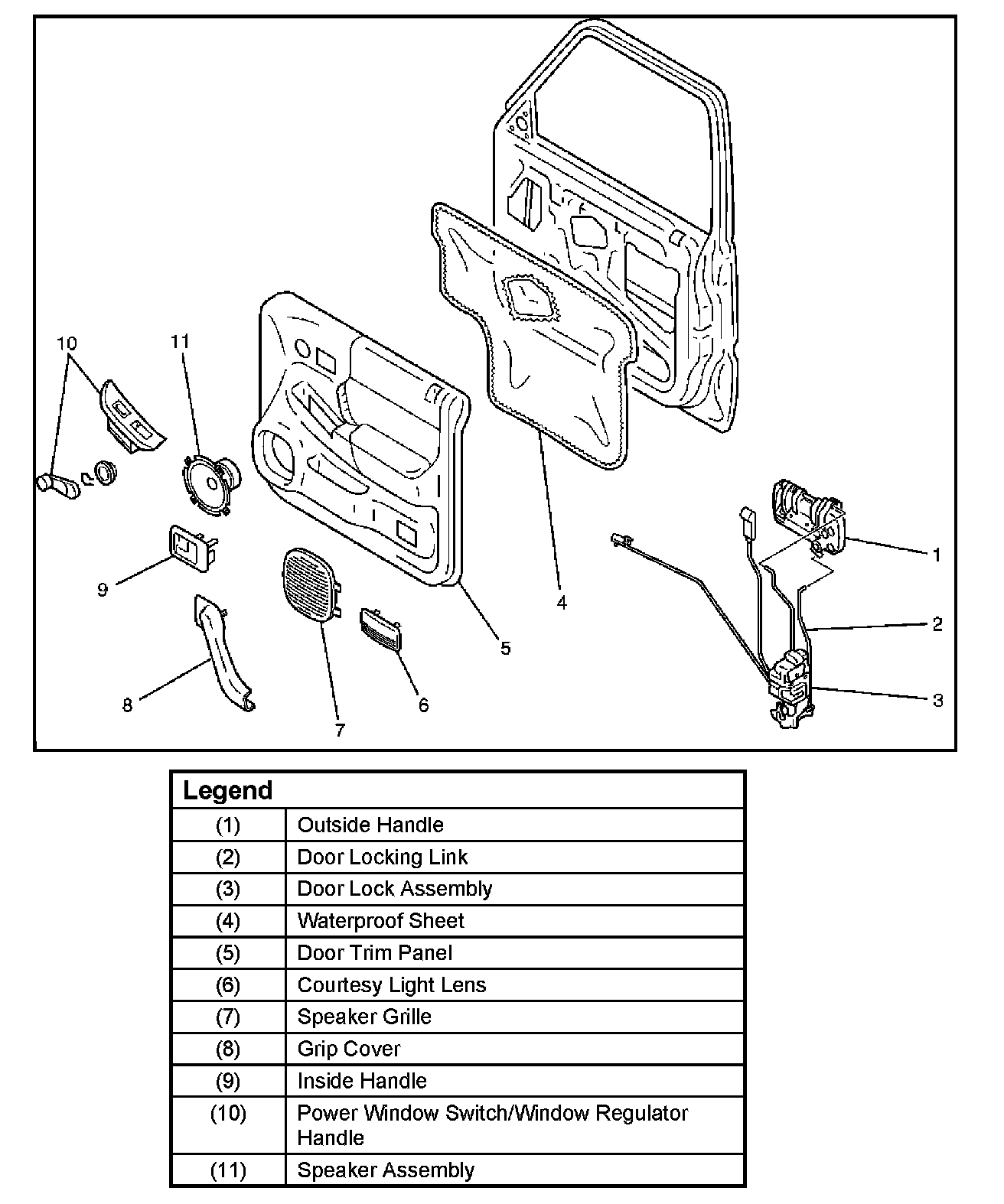

Front Door Lock Assembly And Associated Parts:

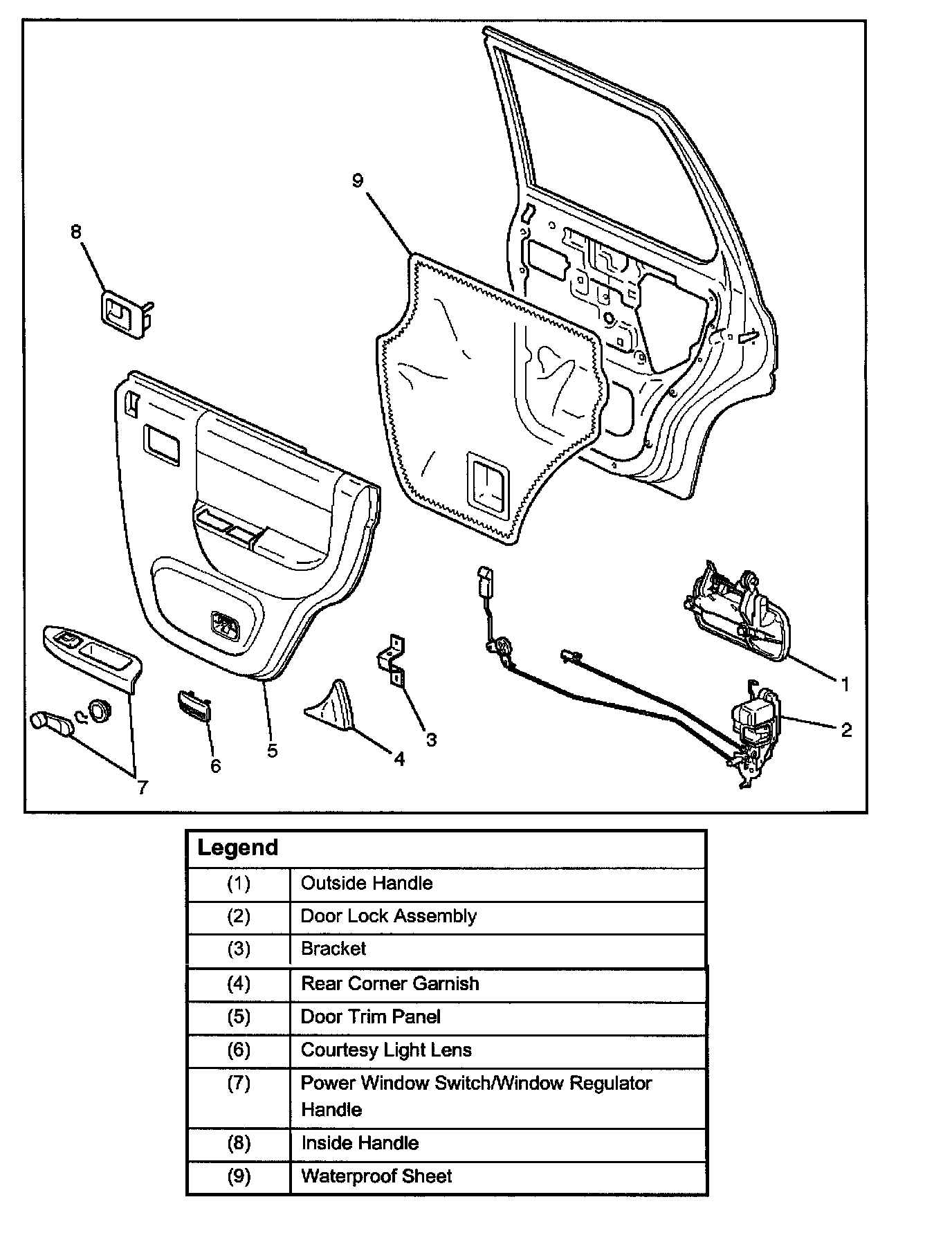

Rear Outside Handle And Associated Parts:
