Backup Lamp
Backup Lamp

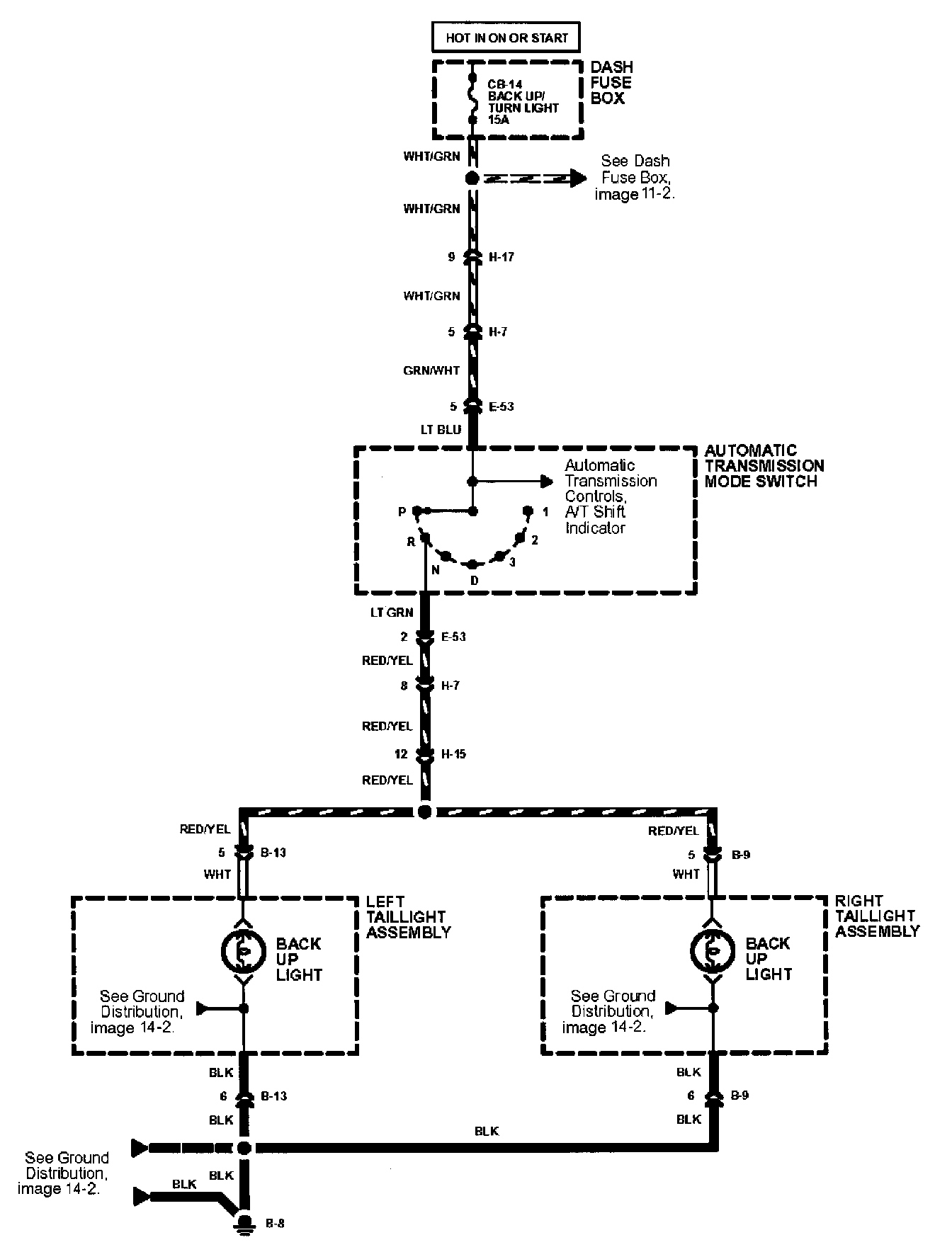

Back Up Lights: Automatic Transmission Image 112-1:
Back Up Lights: Manual Transmission Image 112-2:
