Fog/Driving Lamp
Fog/Driving Lamp

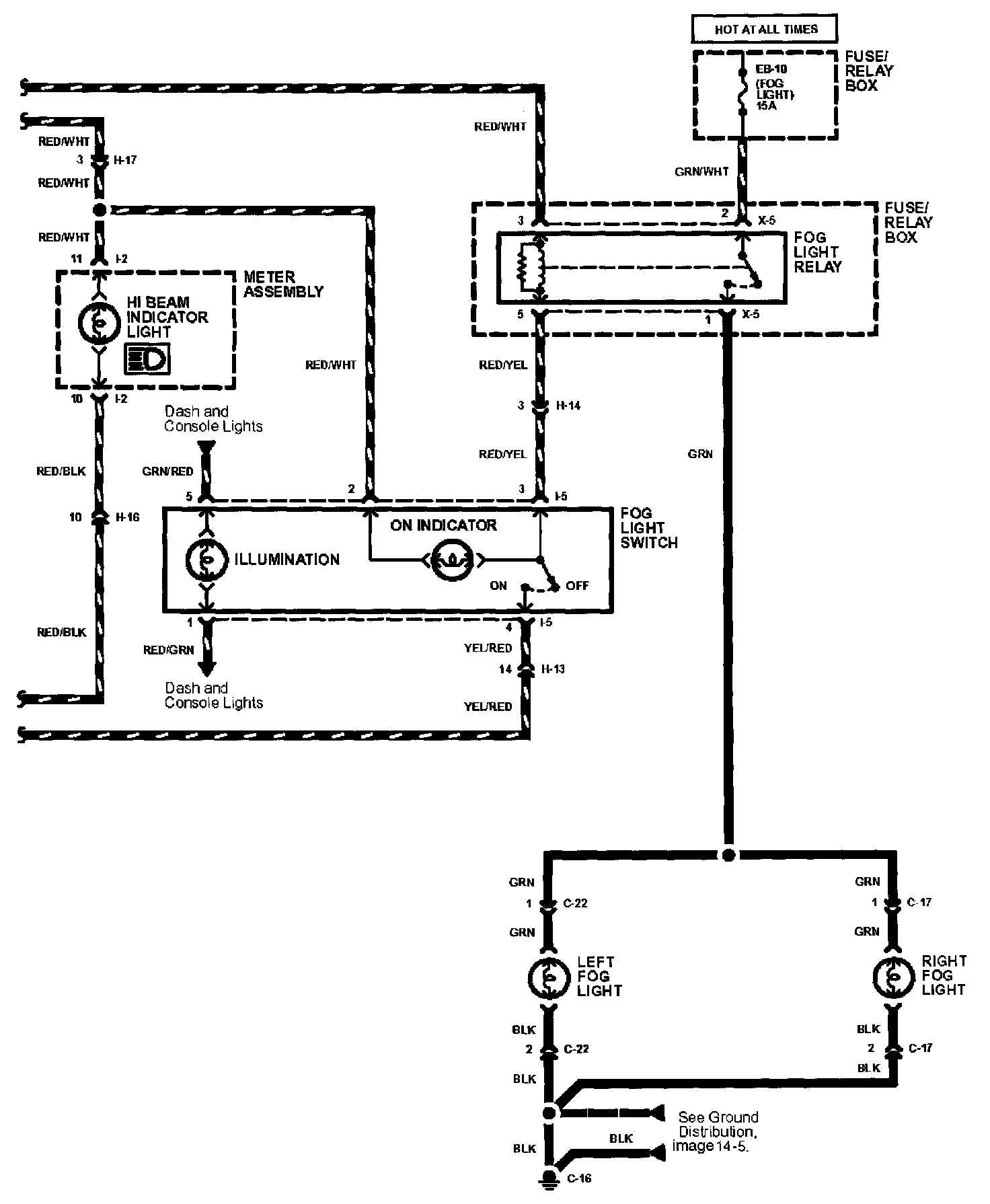

Headlights And Foglights Image 100:
Headlights And Foglights Image 100-1:
