Power Locks

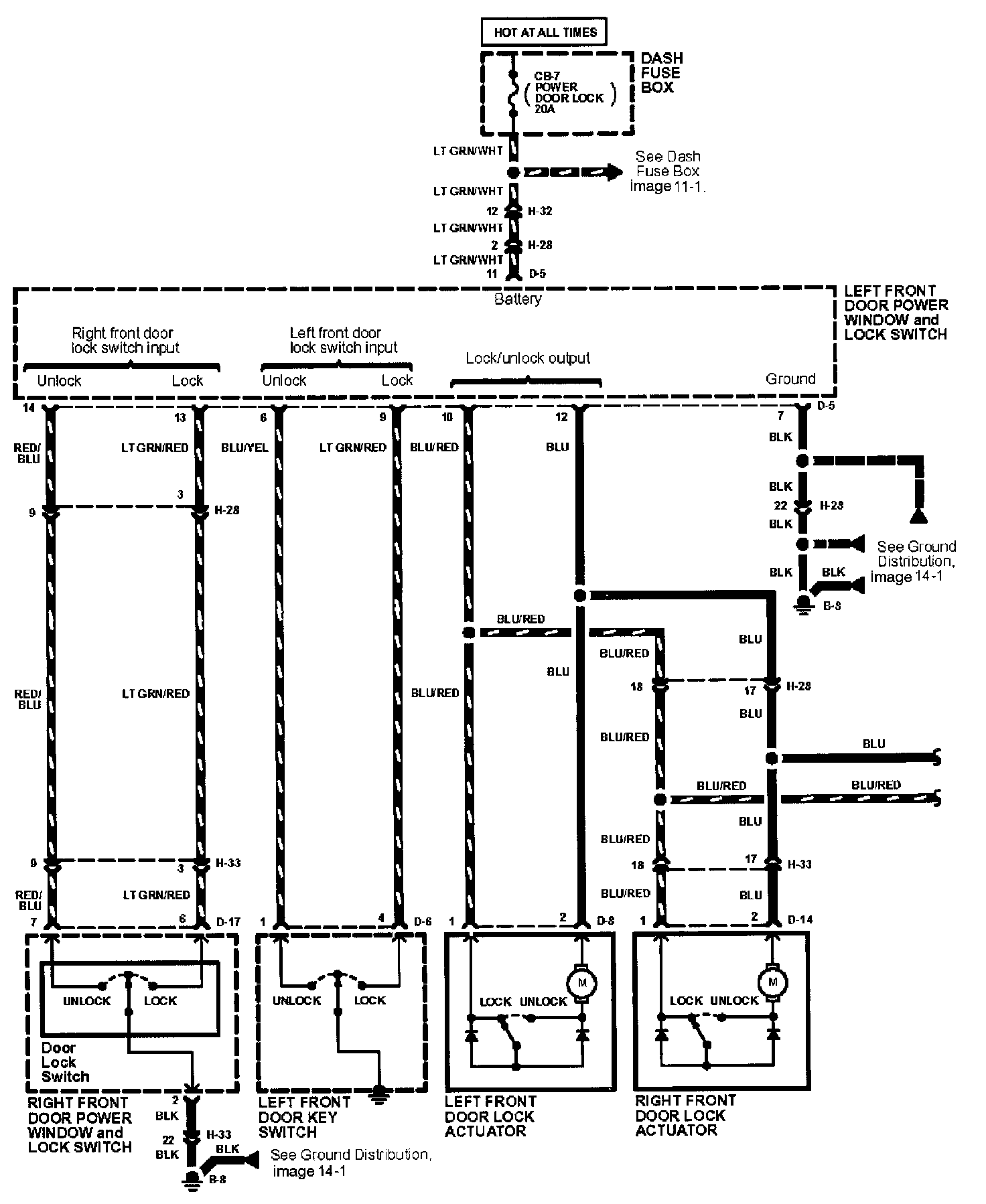

Power Door Locks (Without Keyless Entry) Image 130:

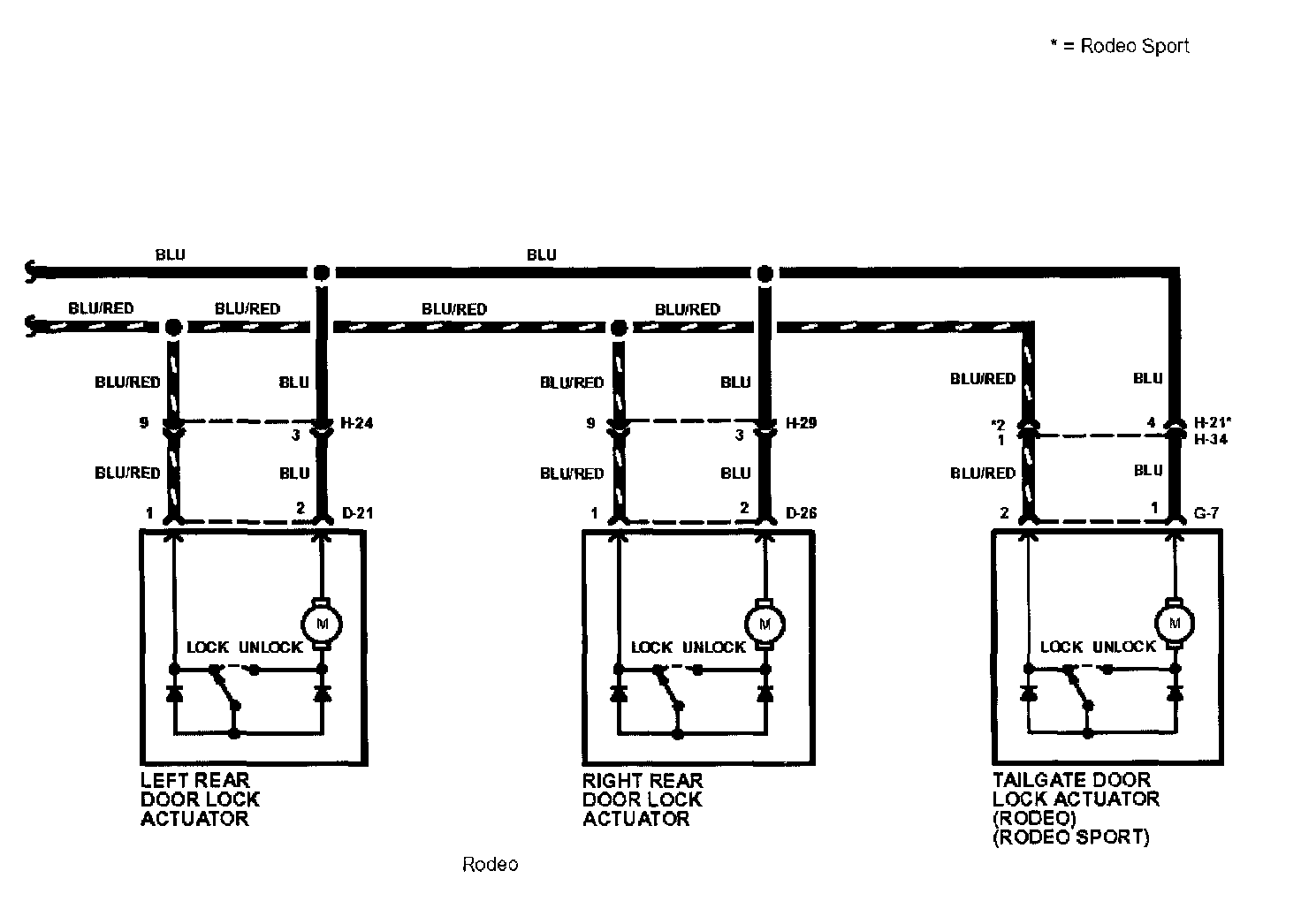

Power Door Locks (Without Keyless Entry) Image 130-1:

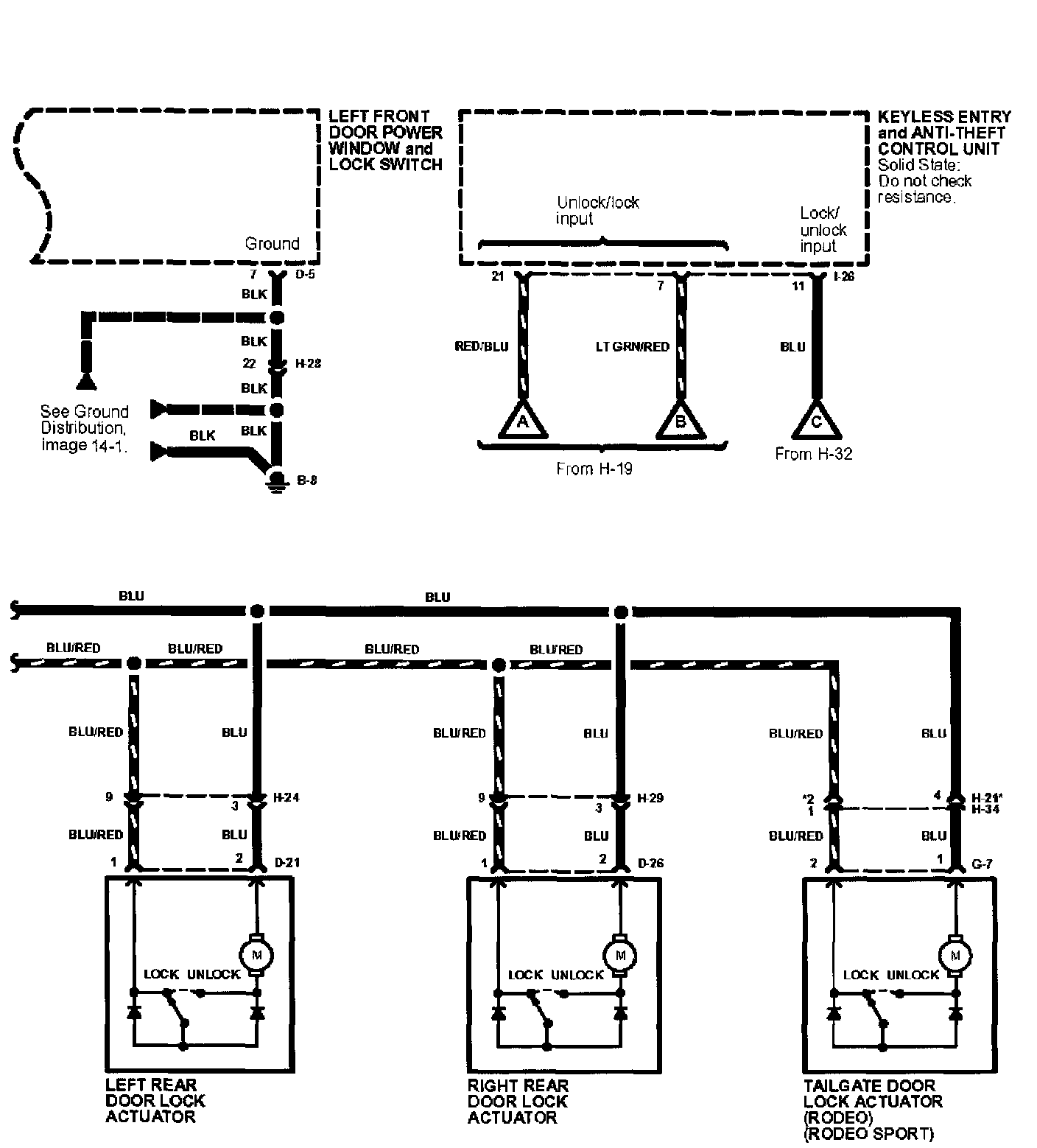

Power Door Locks (With Keyless Entry) Image 130-2:

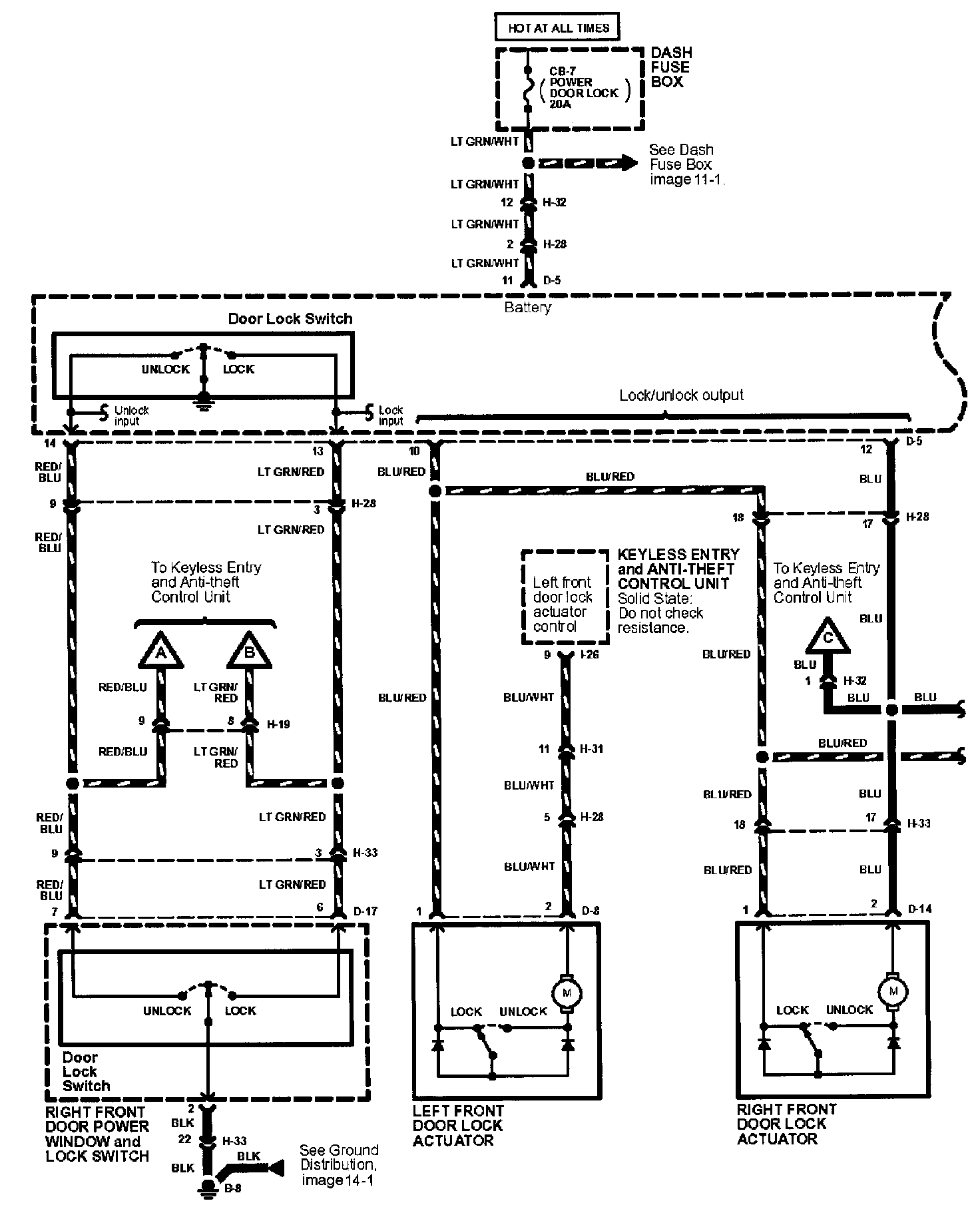

Power Door Locks (With Keyless Entry) Image 130-3:
