Transfer Case

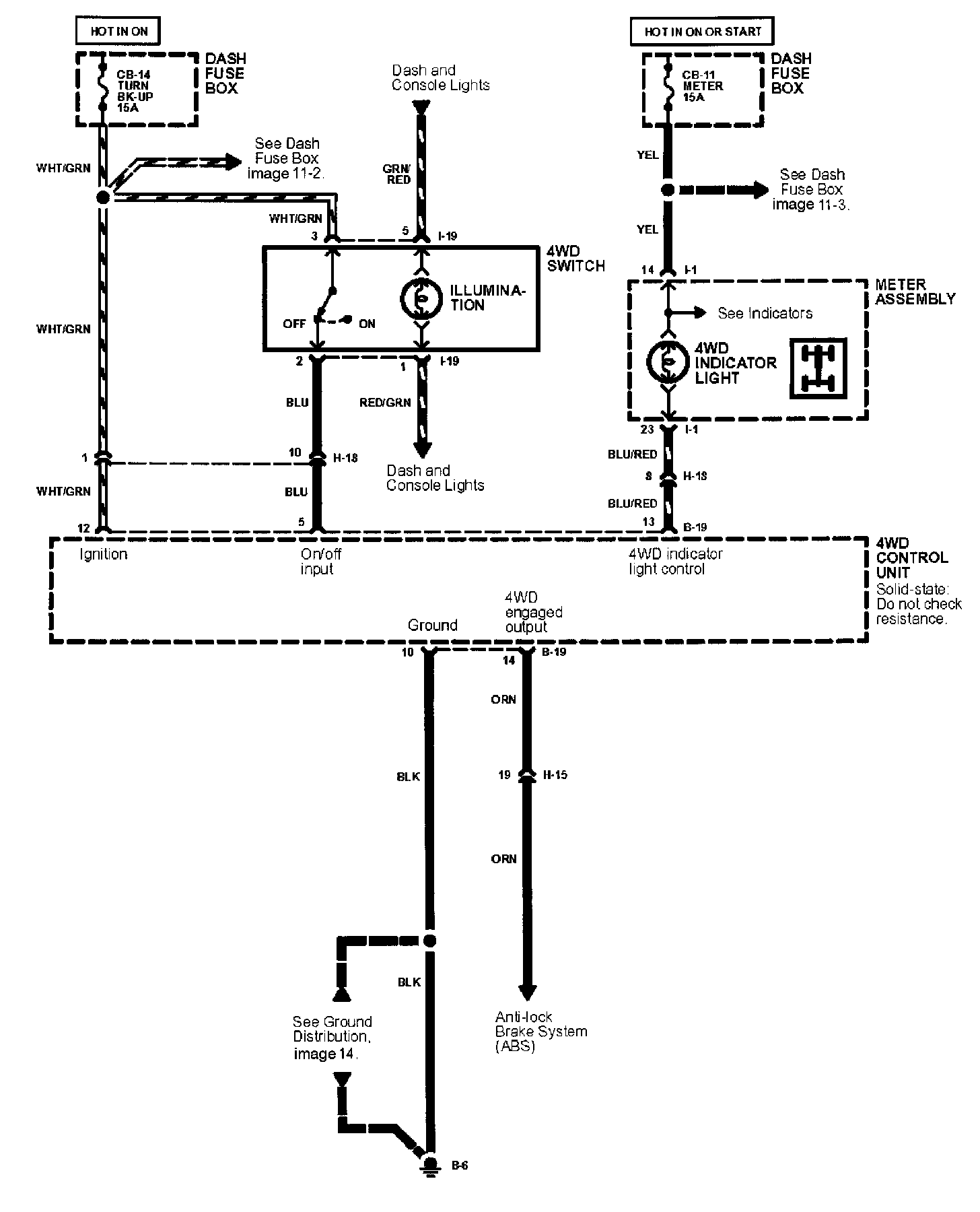

Shift-On-The-Fly-System Image 36:

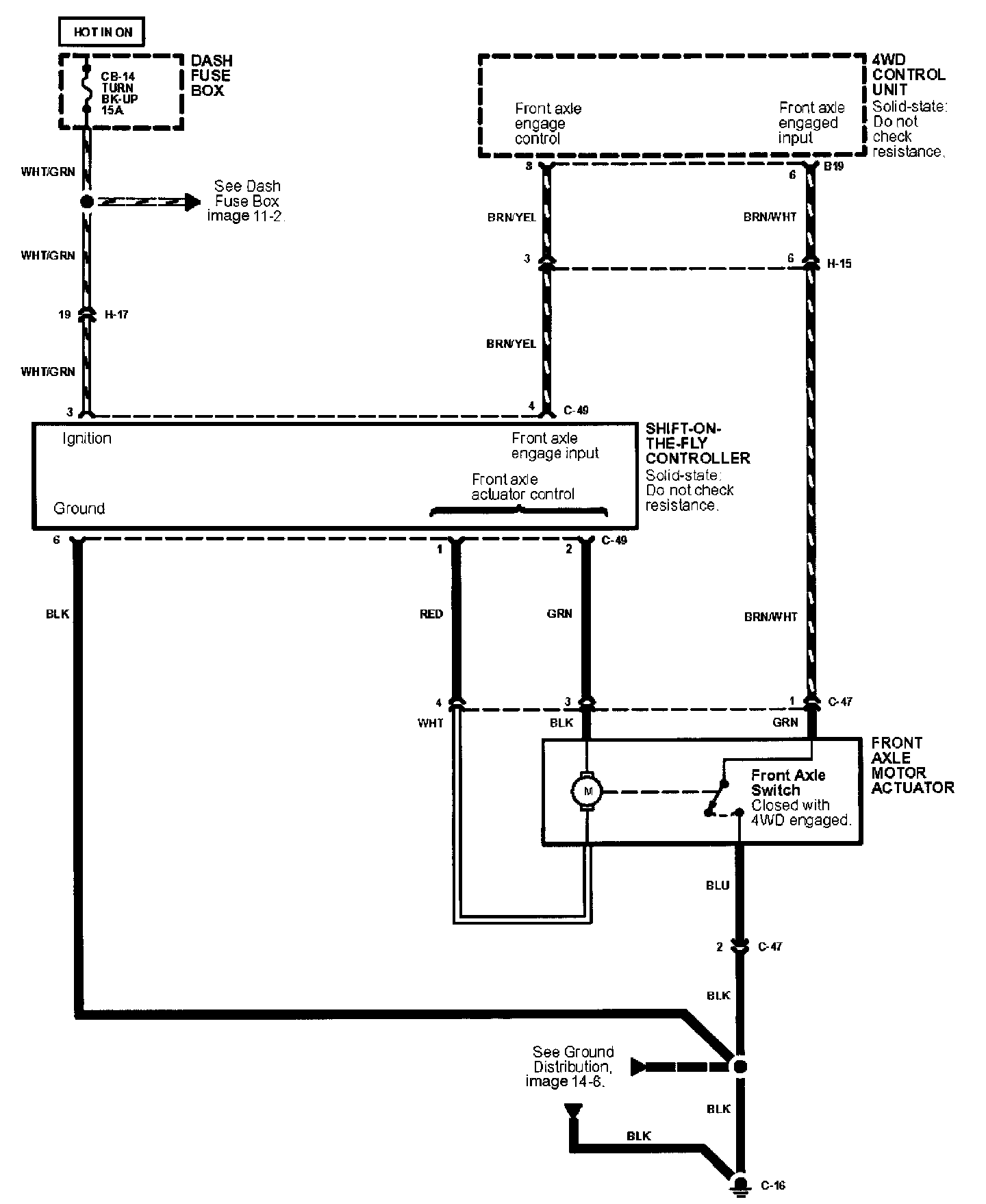

Shift-On-The-Fly-System Image 36-1:

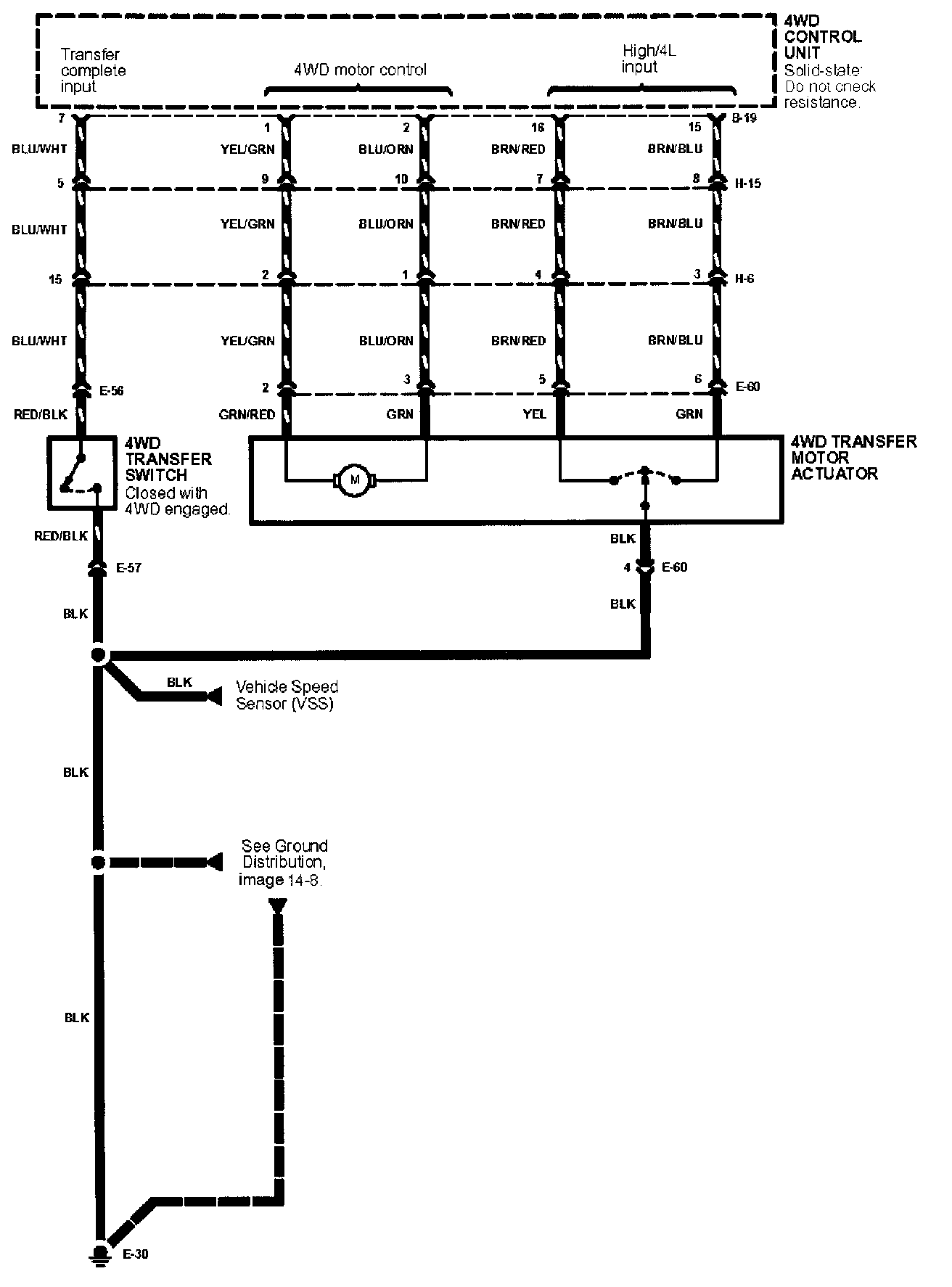

Shift-On-The-Fly-System Image 36-2:
