Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2001
>>
Rodeo LS 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
System Diagram
System Diagram

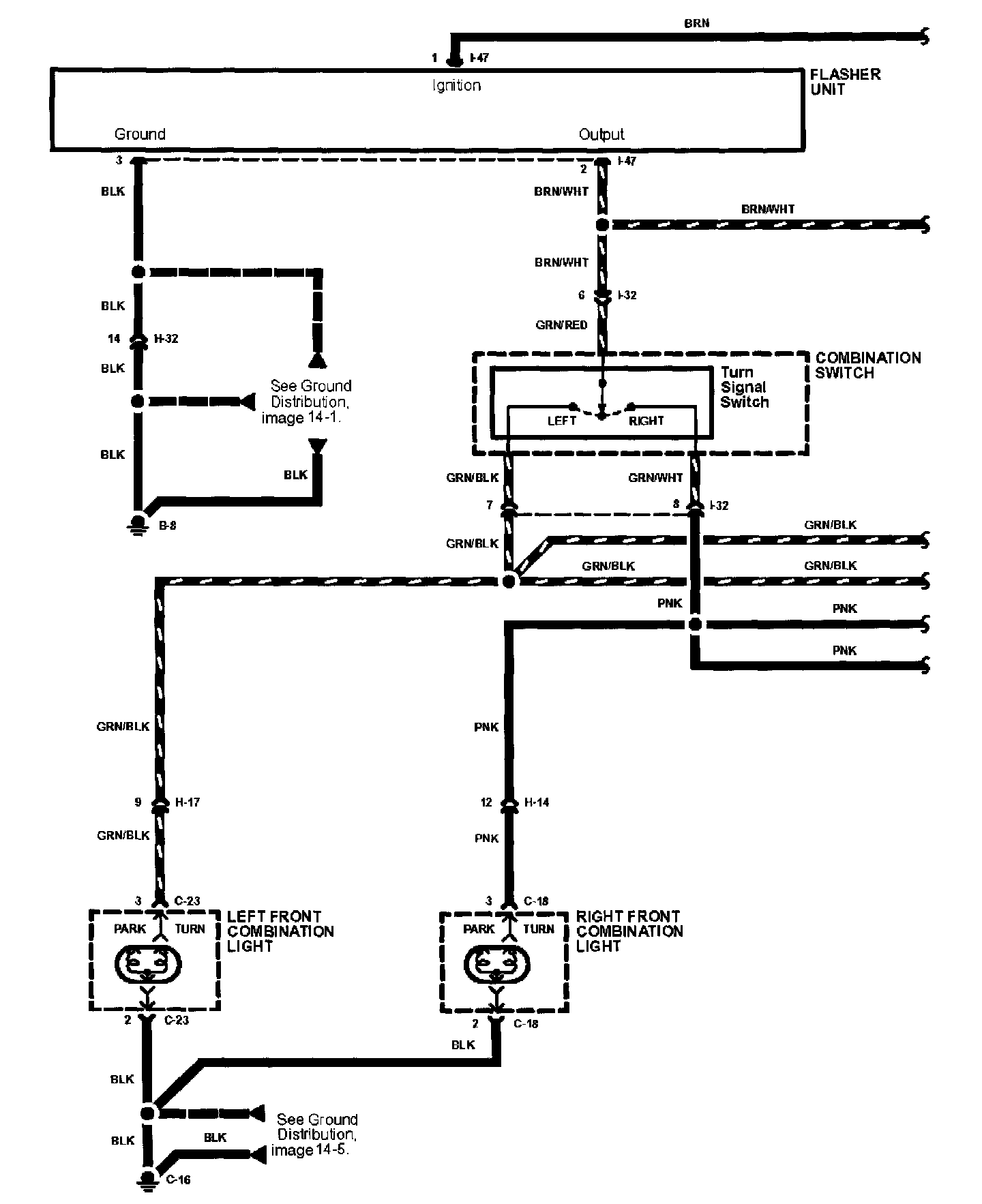

Turn And Hazard Light Image 110-4:
Turn And Hazard Lights Image 110-5:
