Home >> Isuzu >> 2001 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vanity Lamp

Vanity Lamp

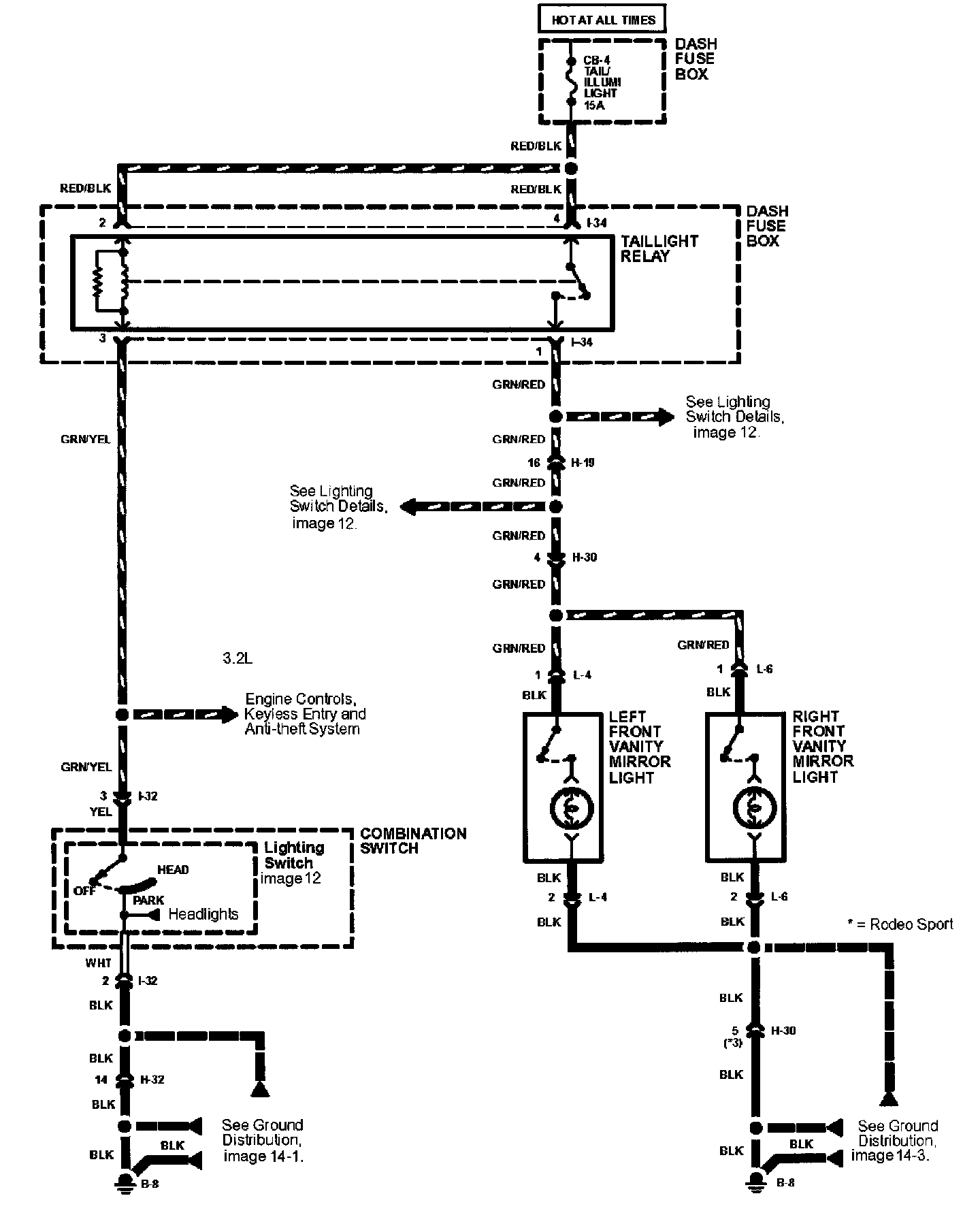

Vanity Lights Image 114-6:
