Blower Motor: Locations

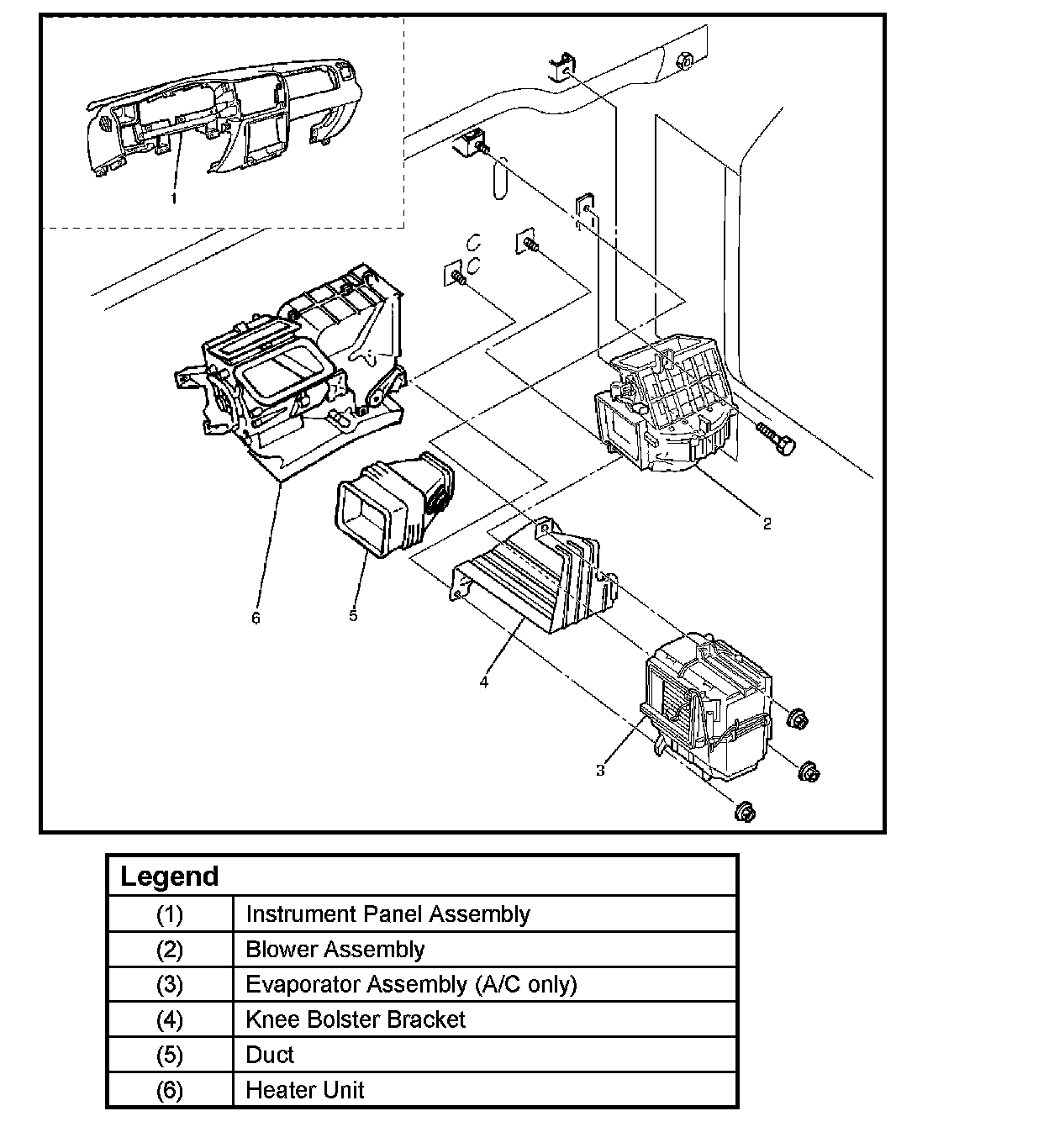

Blower Assembly And Associated Parts:



Disassembled View:



Blower Motor And Associated Parts:

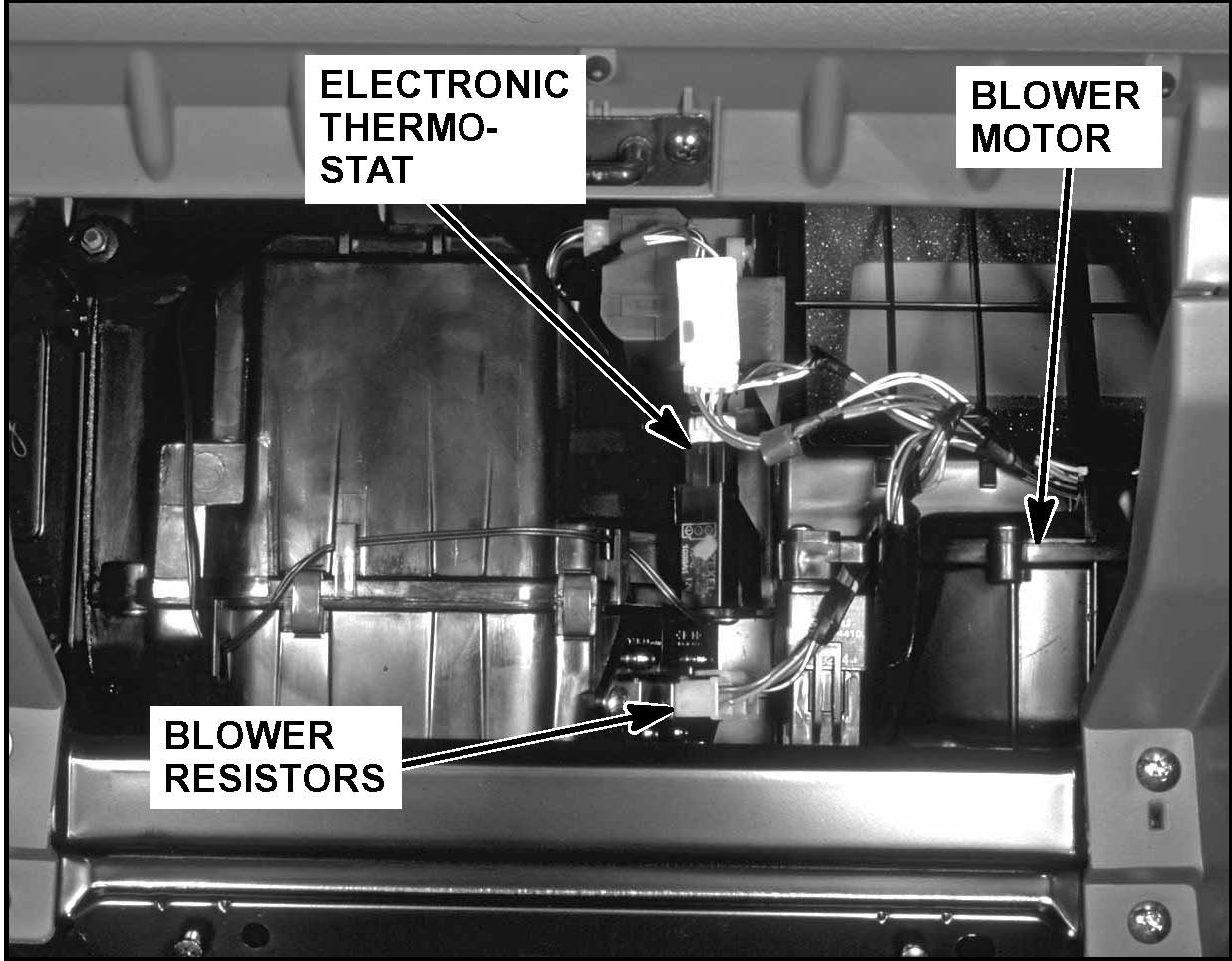

138. Behind Glove Box:
