Electrical Diagrams

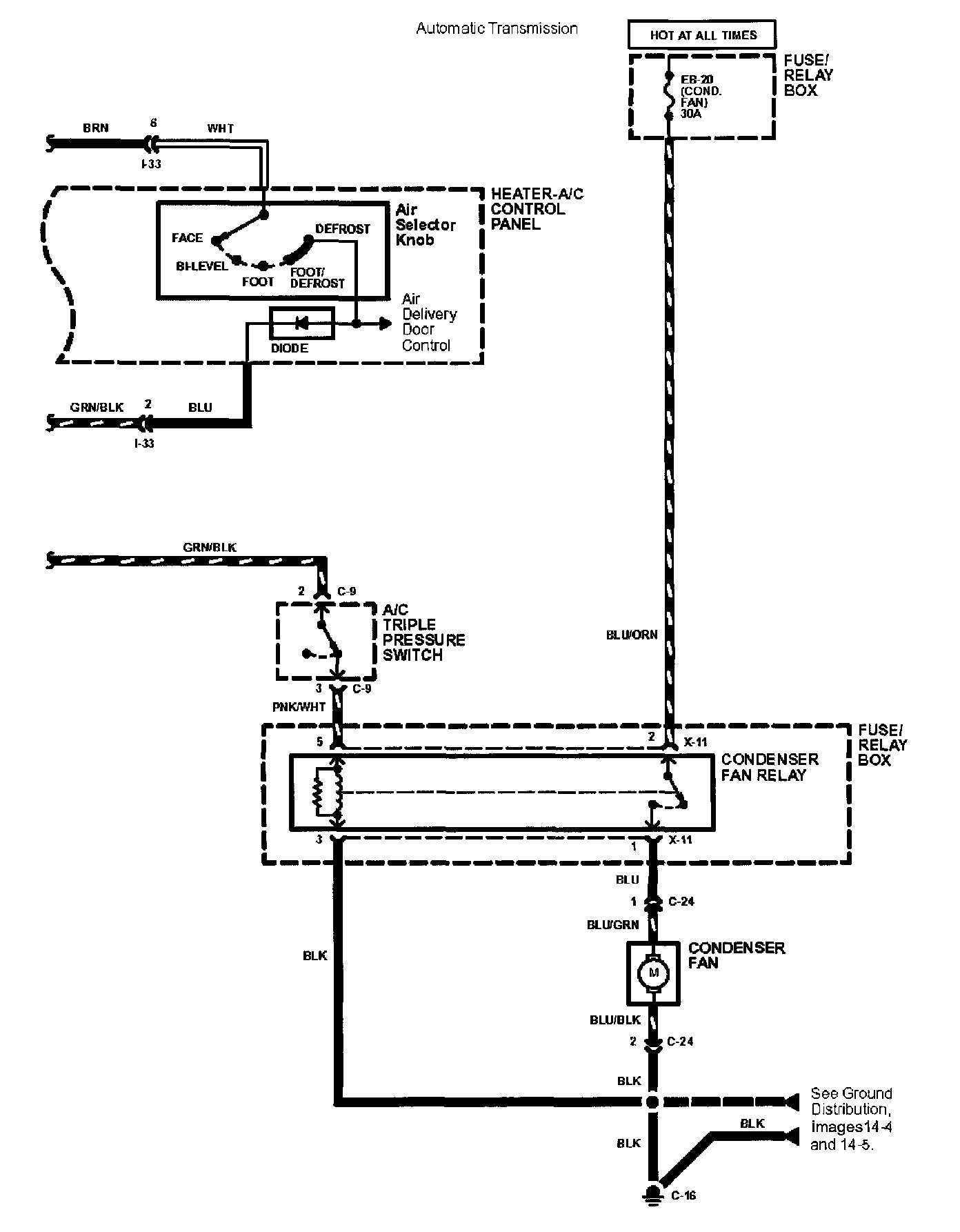

Air Conditioner: Compressor Control Image 63-4:



Air Conditioner: Compressor Control Image 63-5:
