Electrical Diagrams
Heating and Ventilation - Wiring Diagram:

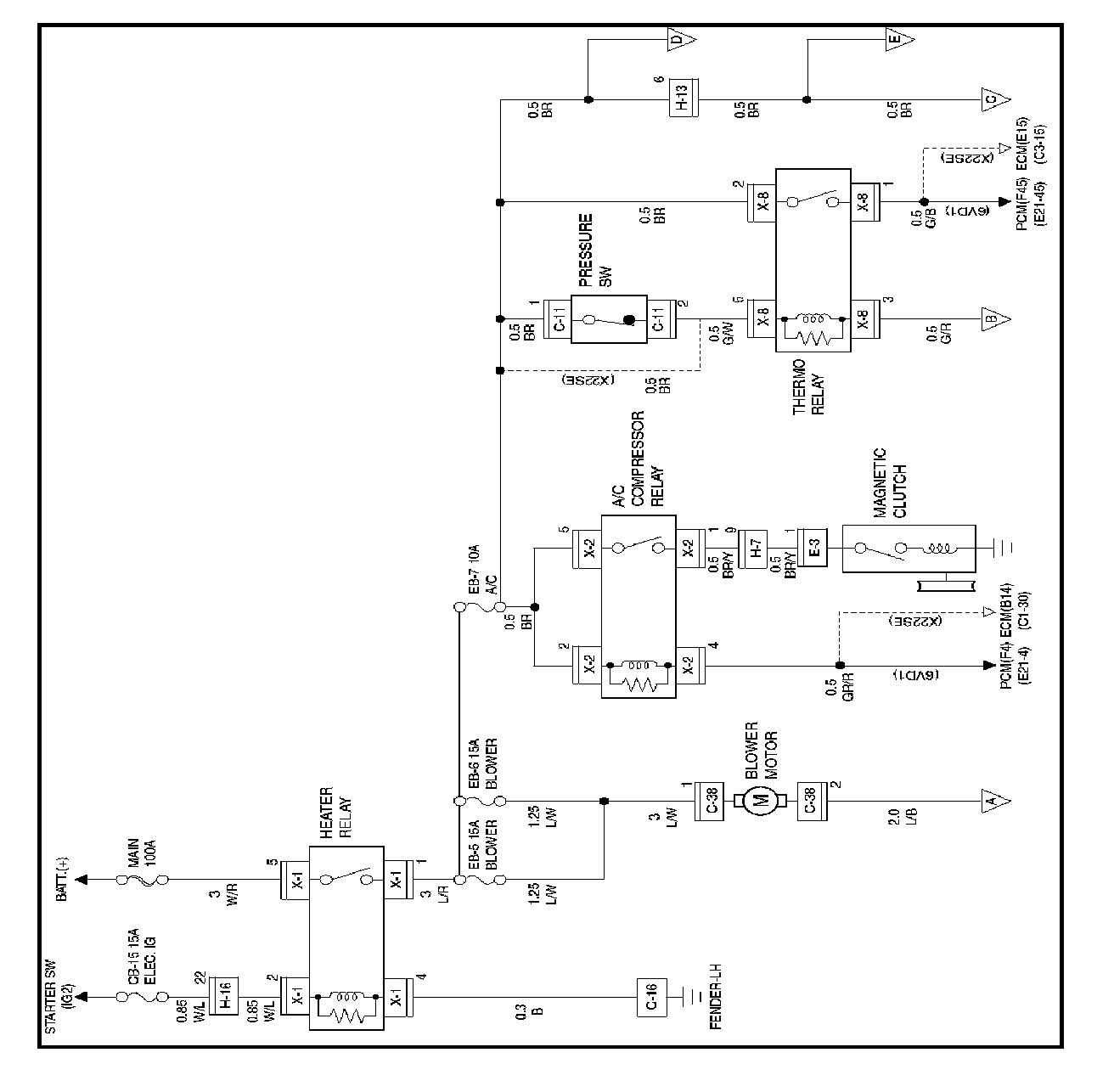

Air Conditioning System (Part 1):

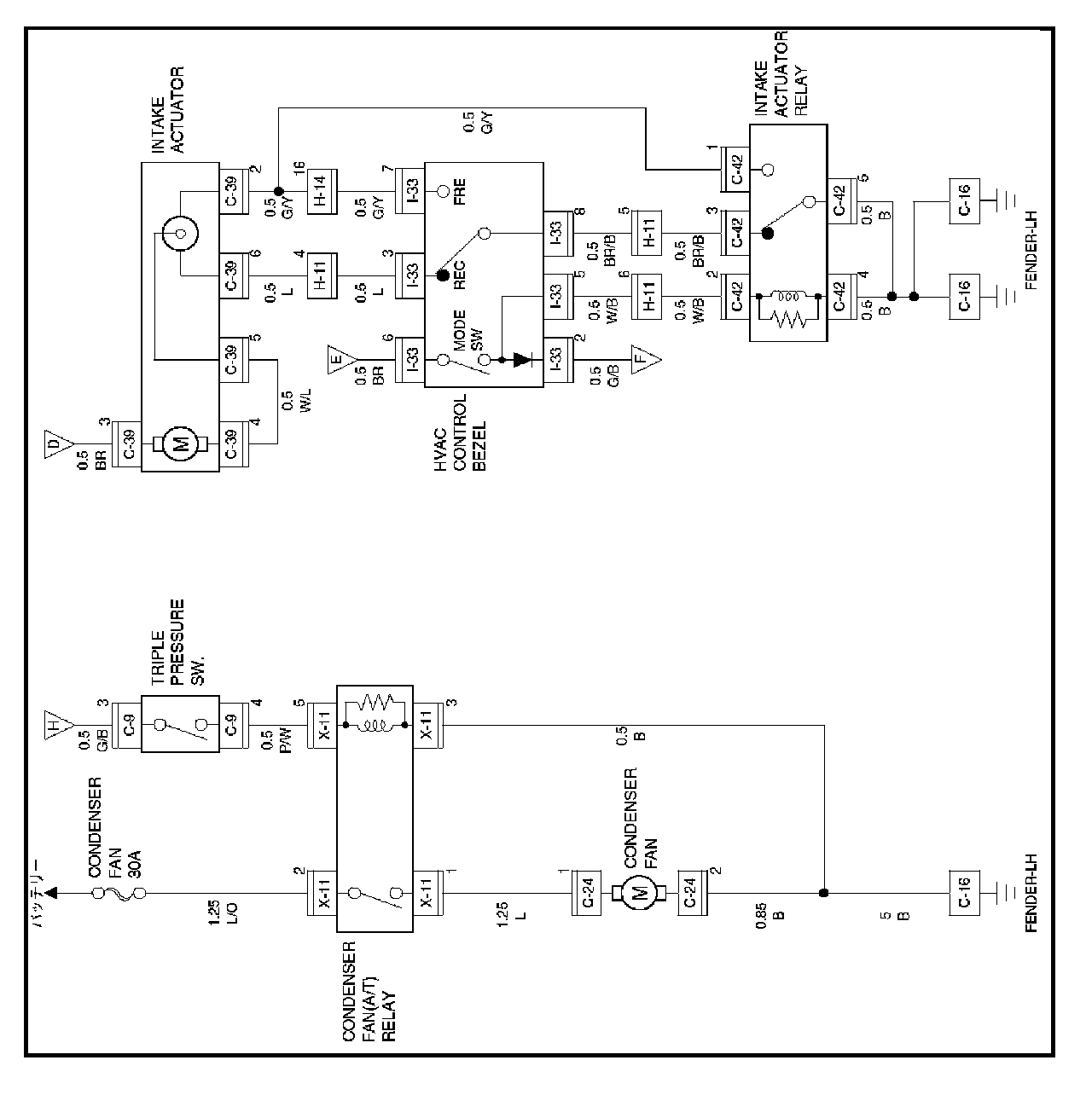

Air Conditioning System (Part 2):

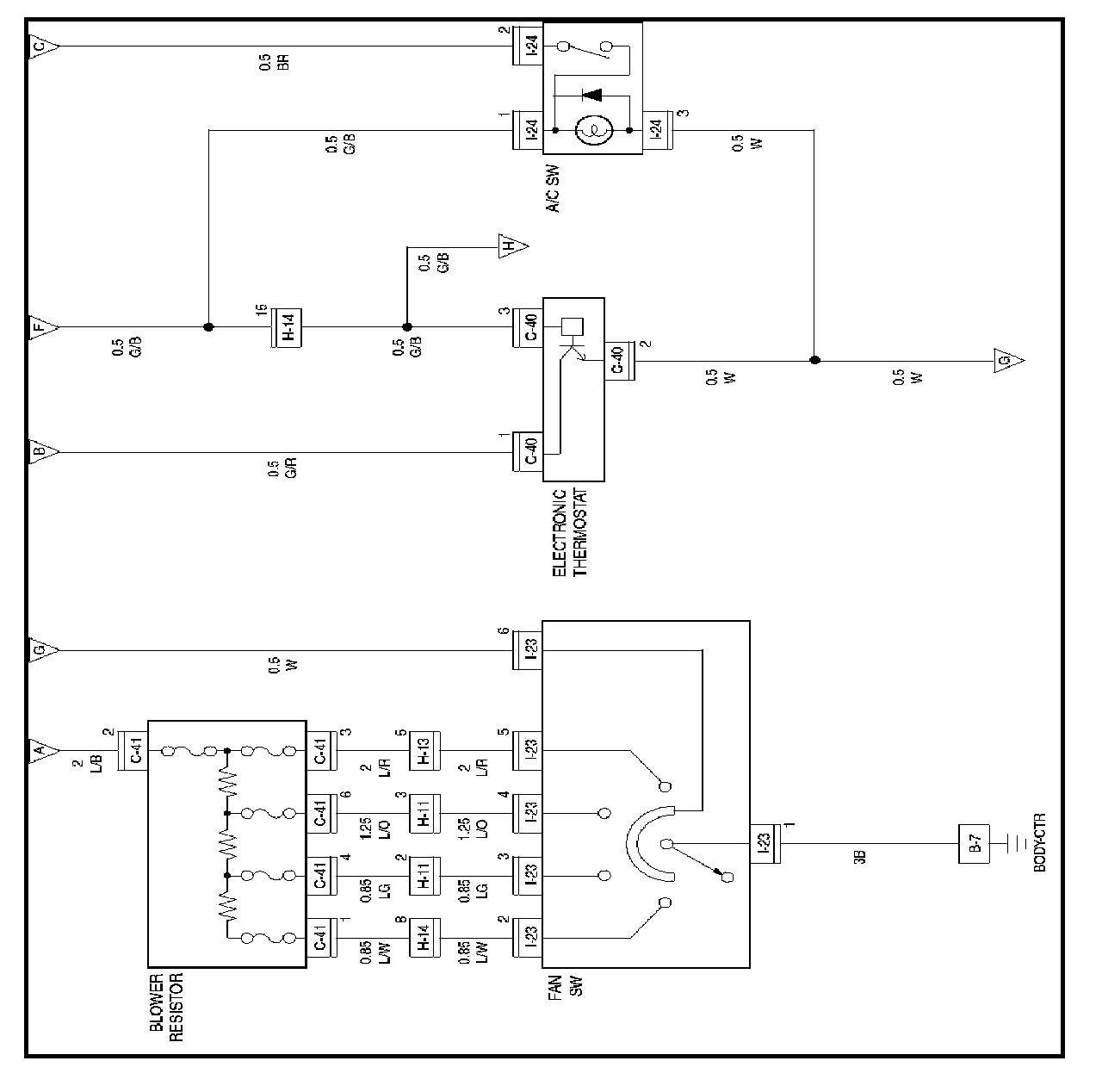

Air Conditioning System (Part 3):
