Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2001
>>
Rodeo LS 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Heating and Air Conditioning Components
Heating and Air Conditioning Components
Disassembled View:
Disassembled View:

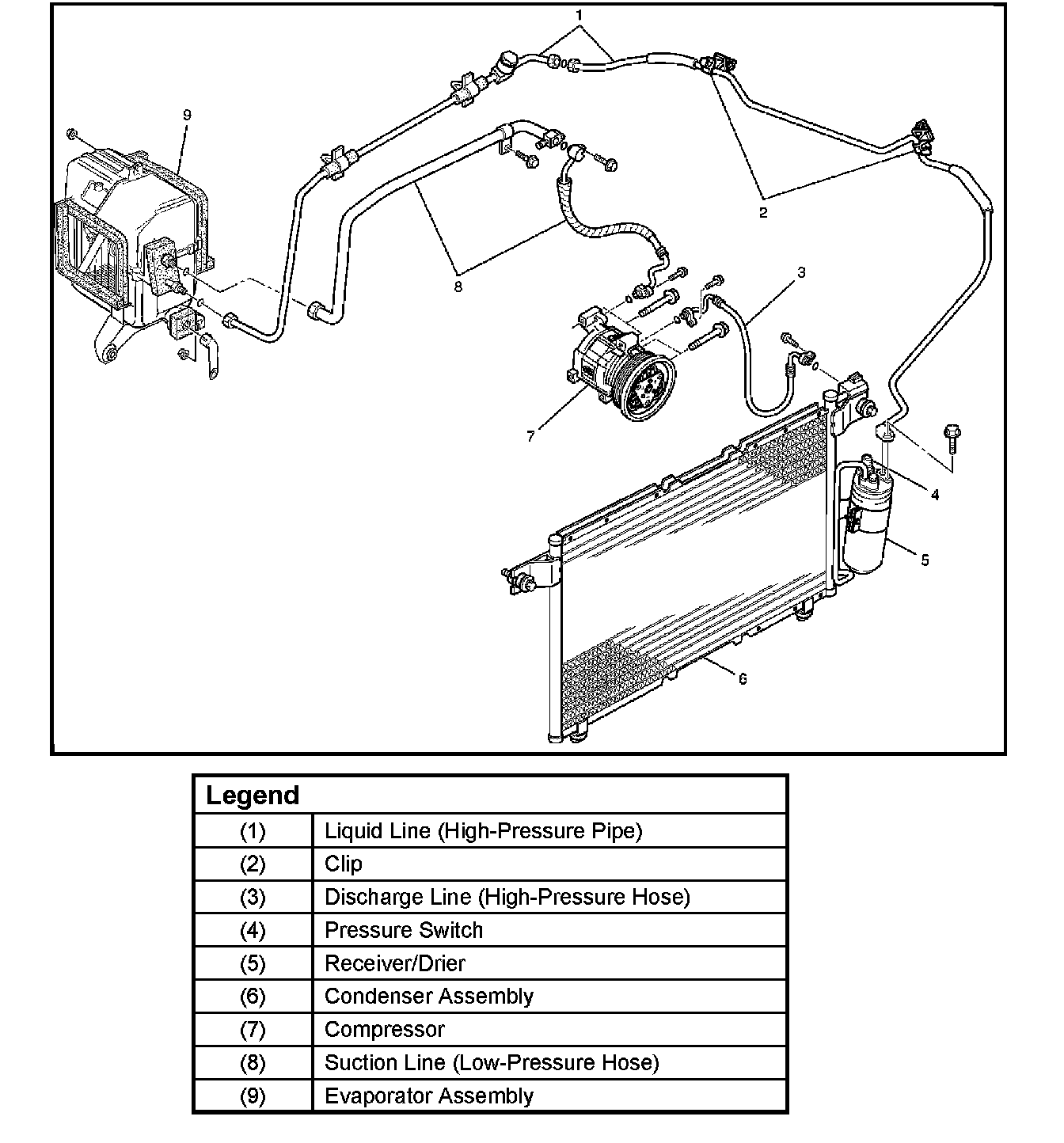

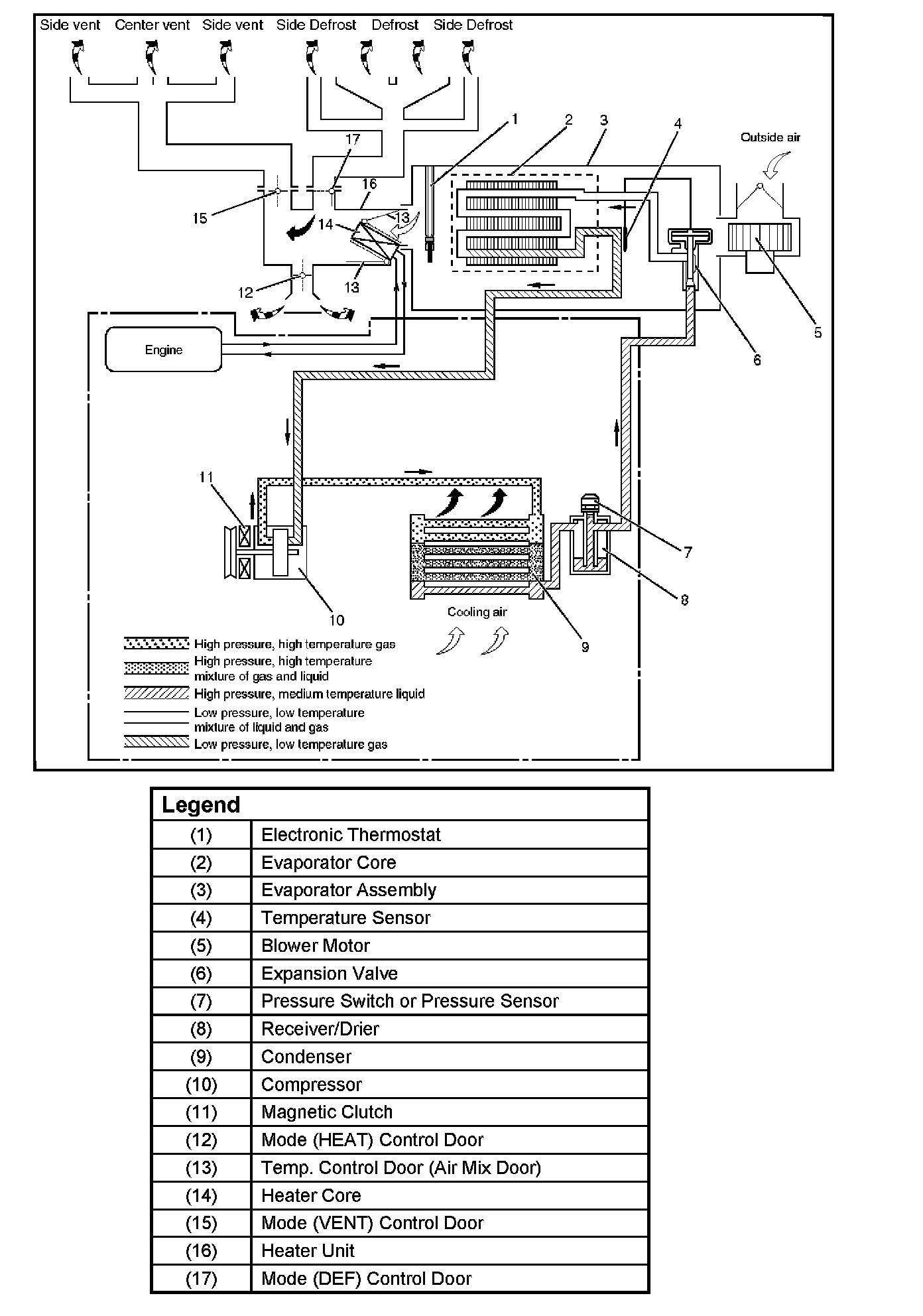

Air Conditioning Refrigerant Cycle Construction:
Air Conditioning Parts:

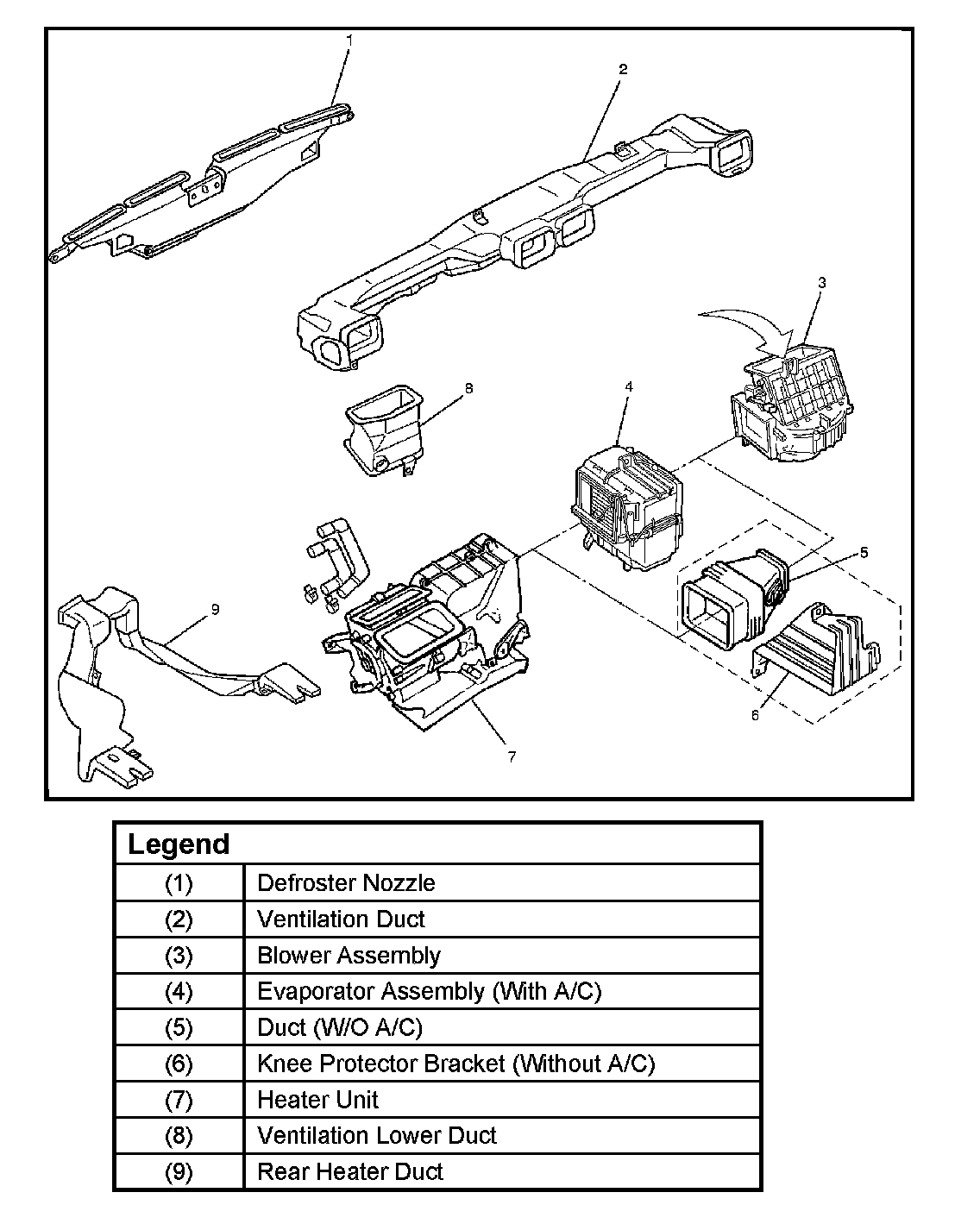

Heating and Ventilation System:
