Component Locations

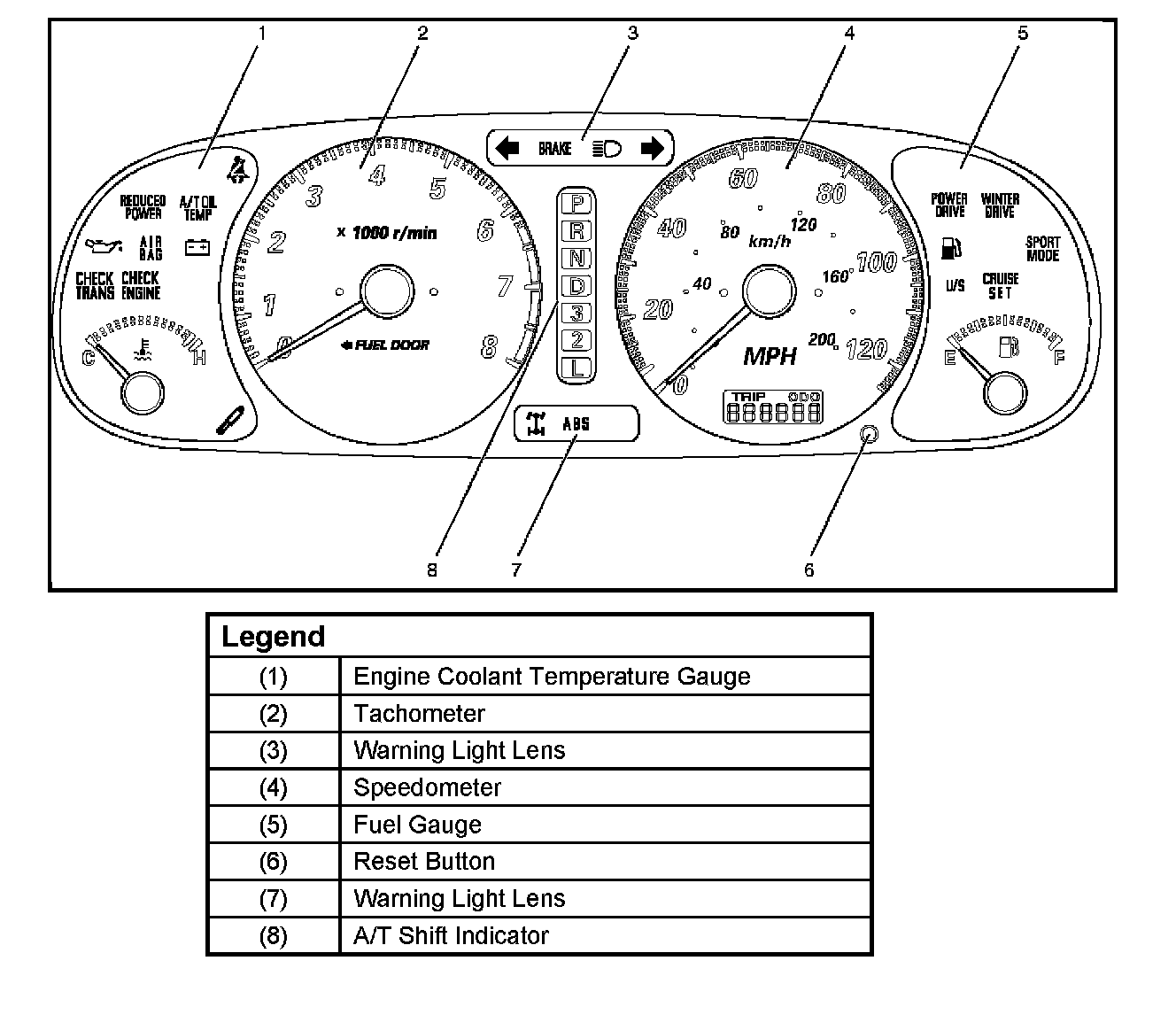

Layout For Meters/Gauges, Warning Lights, Indicator Lights And Illumination Lights - Front View:

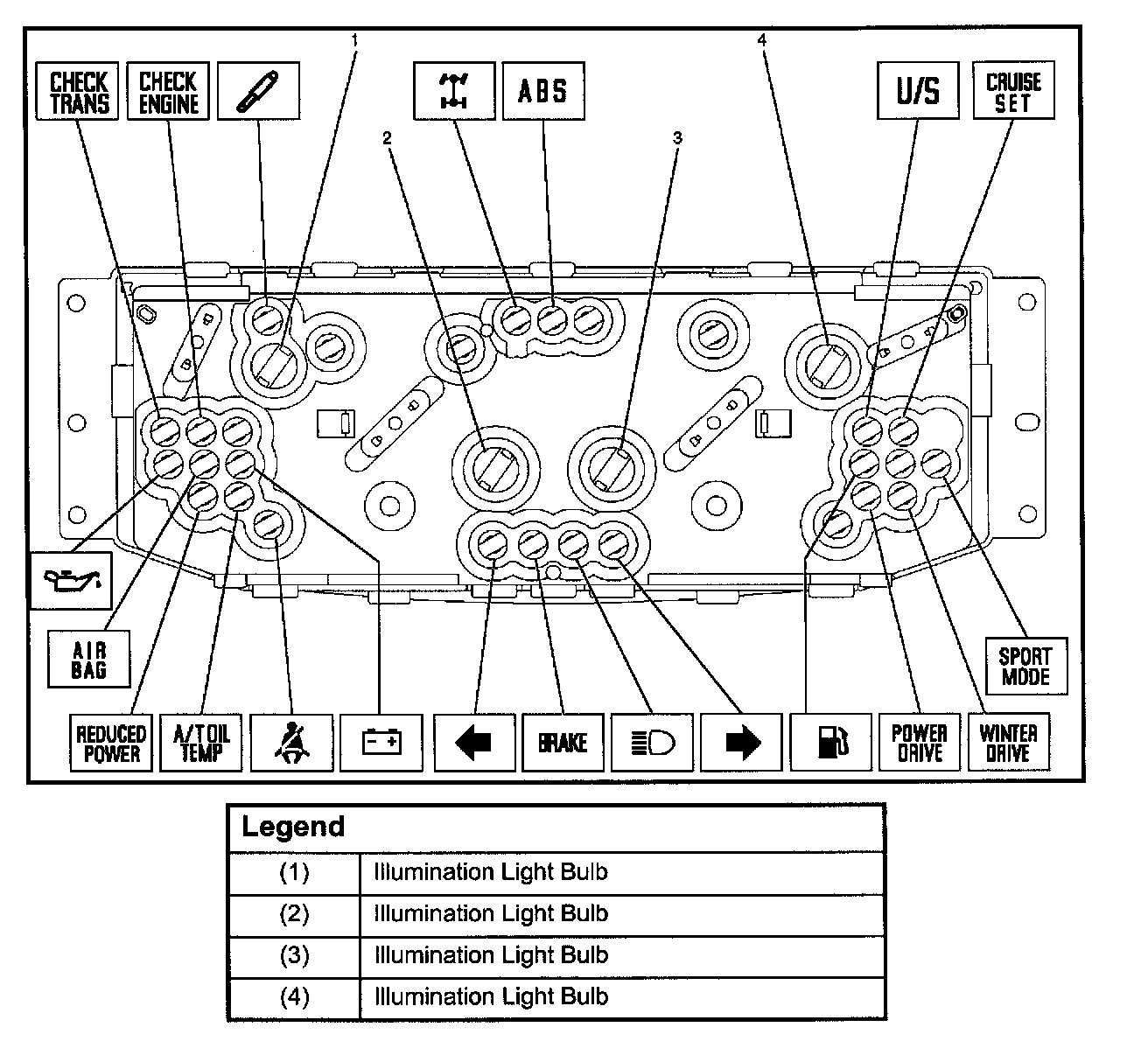

Rear View:

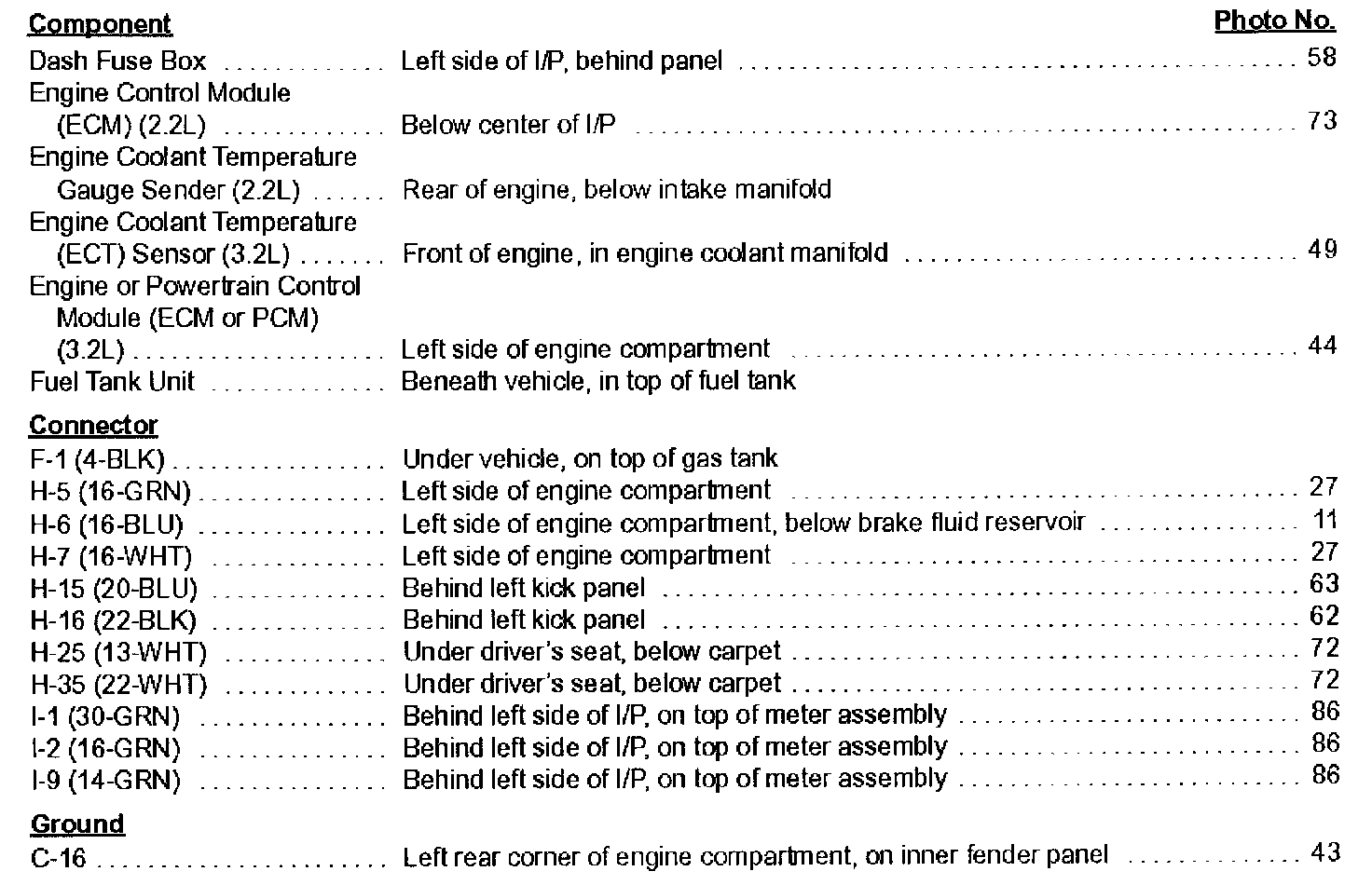

Relay Controls Index:

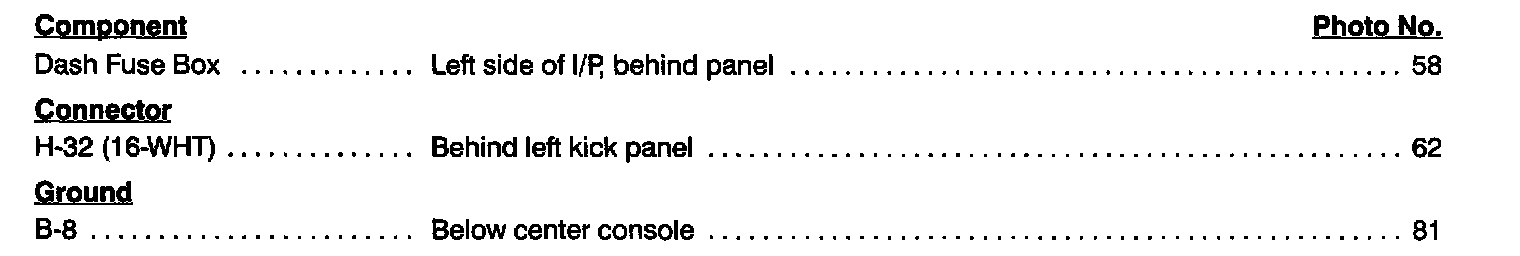

Brake Warning System Index:

Seat Belt, Lights-On, And Key-In Ignition Warning System Index:

Indicators Index:

Gauges Index:

Dash and Console Lights Index:

Clock Index:

Cigarette Lighter Index:

Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Locations
