Ignition Coil: Locations

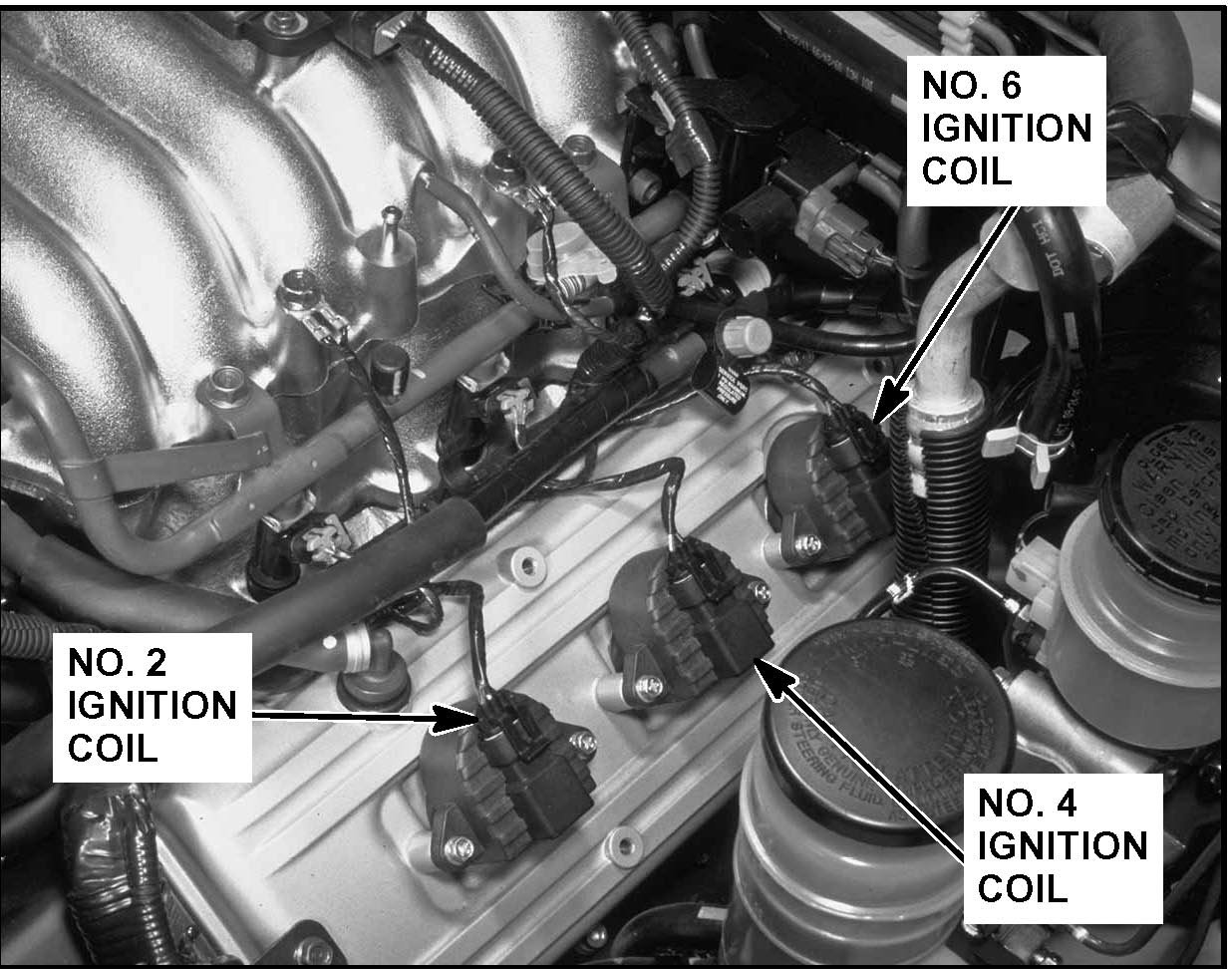

19. Right Side of Engine:

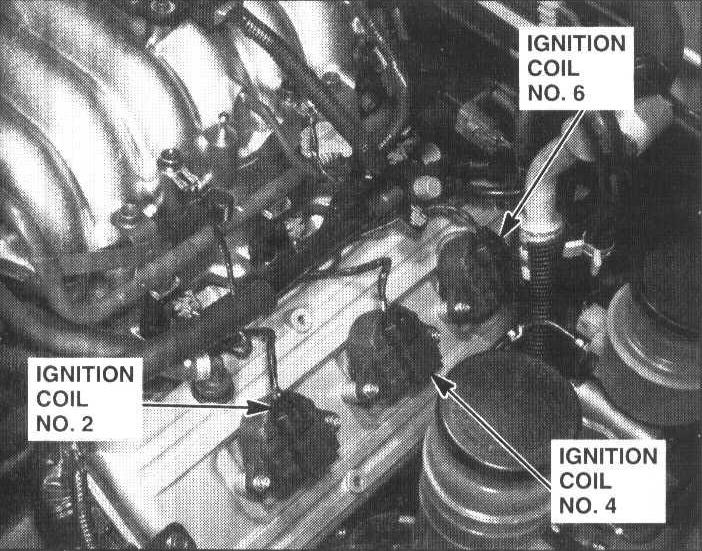

22. Left Side of Engine:

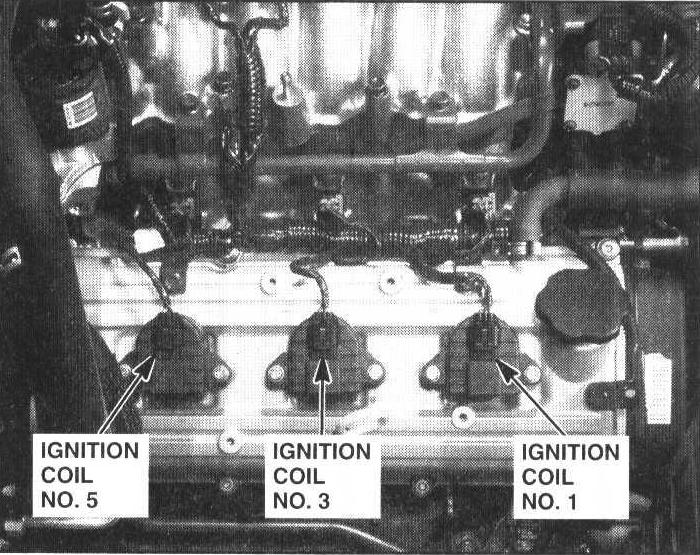

51. Left Side Of Engine:
