Recall - Fuel Hose Replacement: Overview

BULLETIN NUMBER:
SB00-02-S005

ISSUE DATE:
OCTOBER 2000

GROUP:
FUEL SYSTEM

2001 RODEO and RODEO SPORT FUEL HOSE SAFETY CAMPAIGN 00V-298

CAMPAIGN IDENTIFICATION NUMBER

Number 00V-298 has been assigned to this campaign. This number will appear on all communications and documentation of any nature dealing with this campaign.

AFFECTED VEHICLES

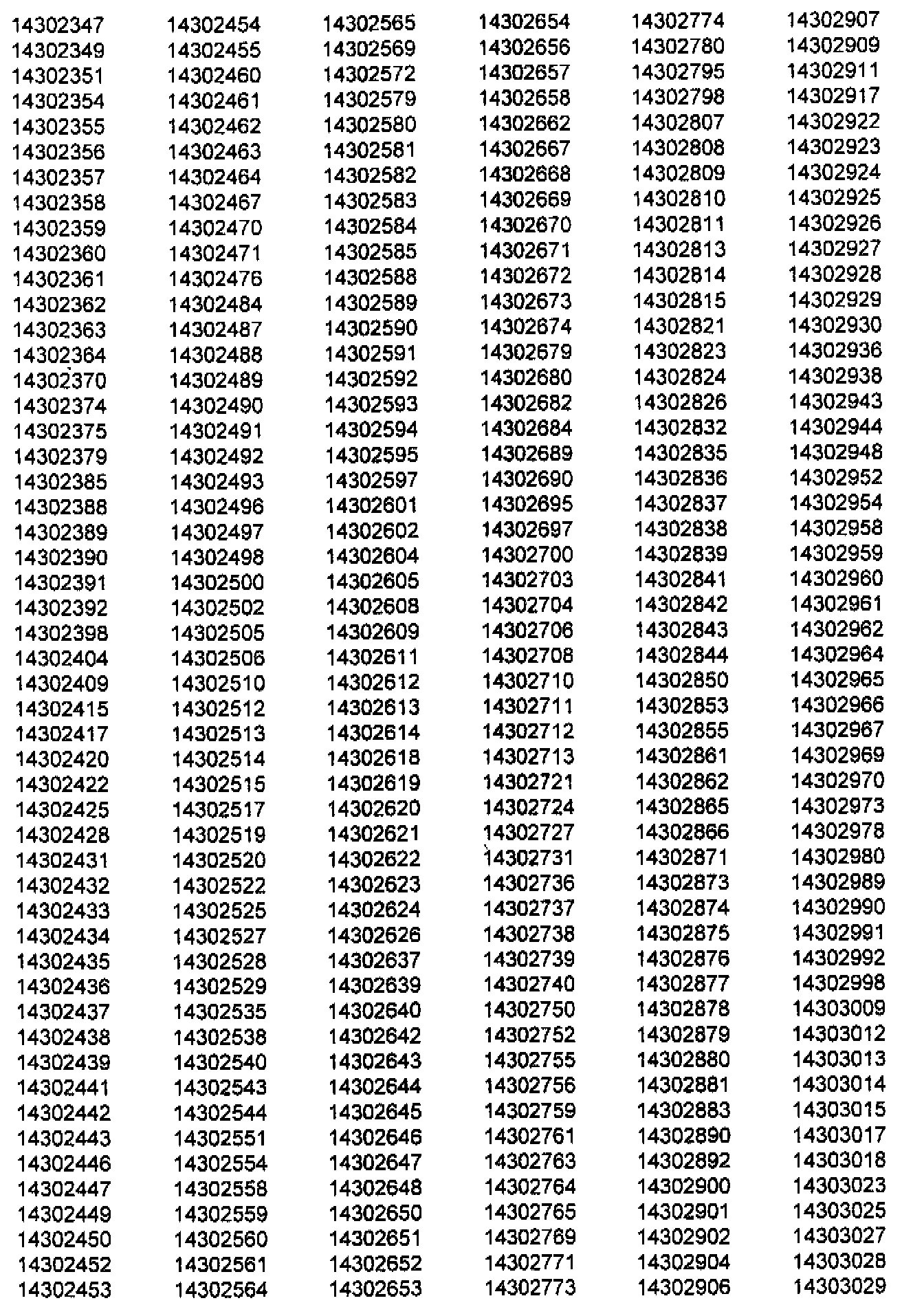

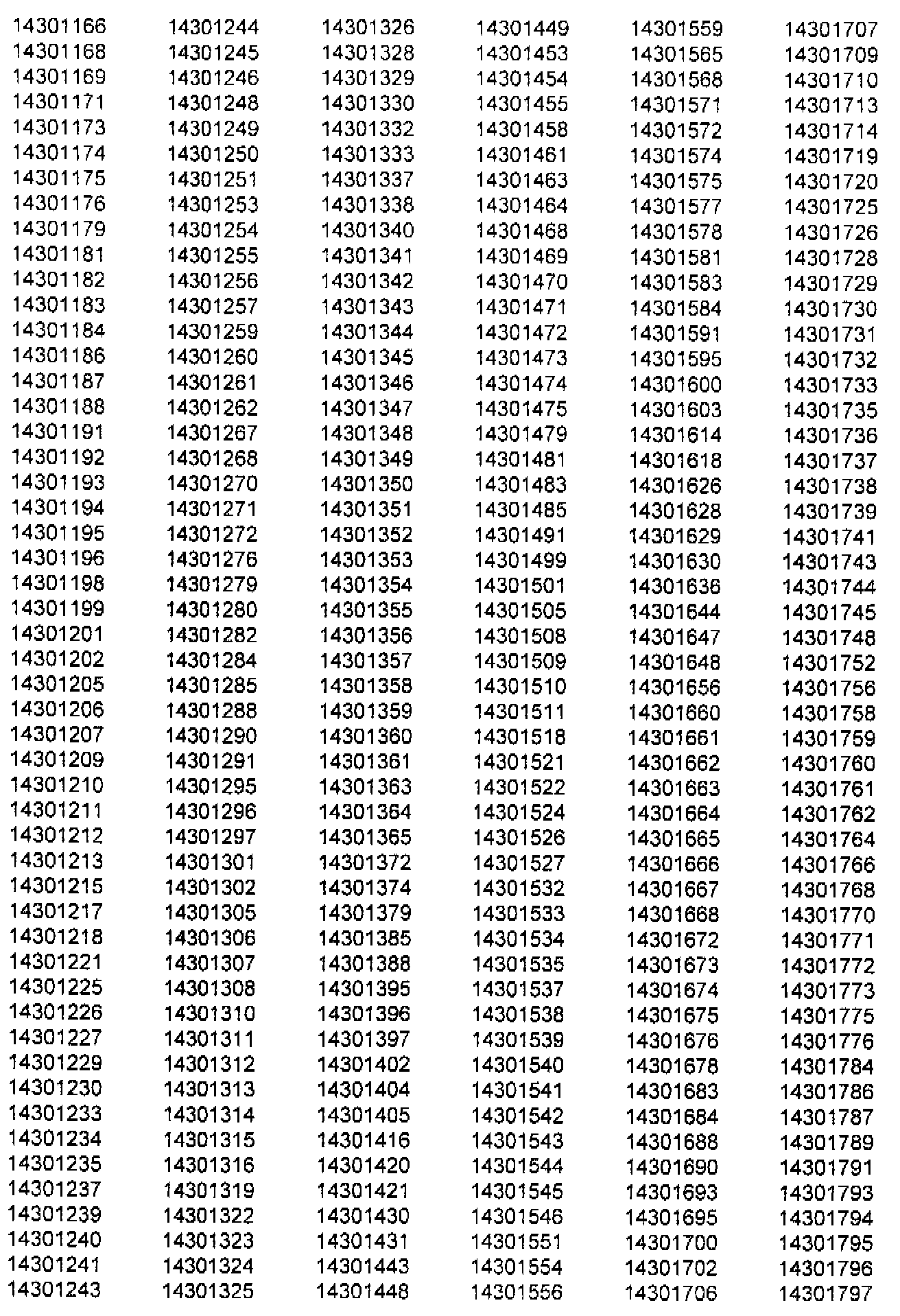

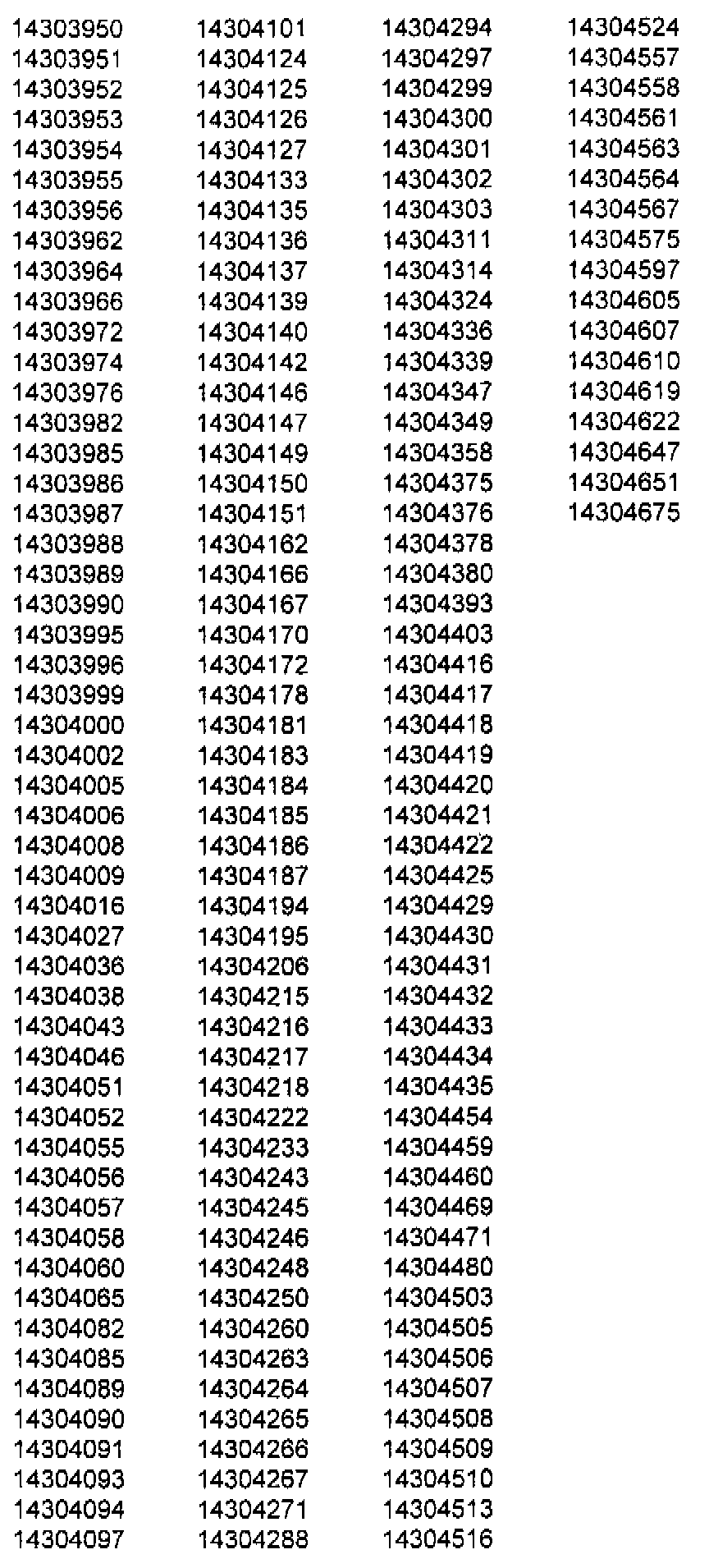

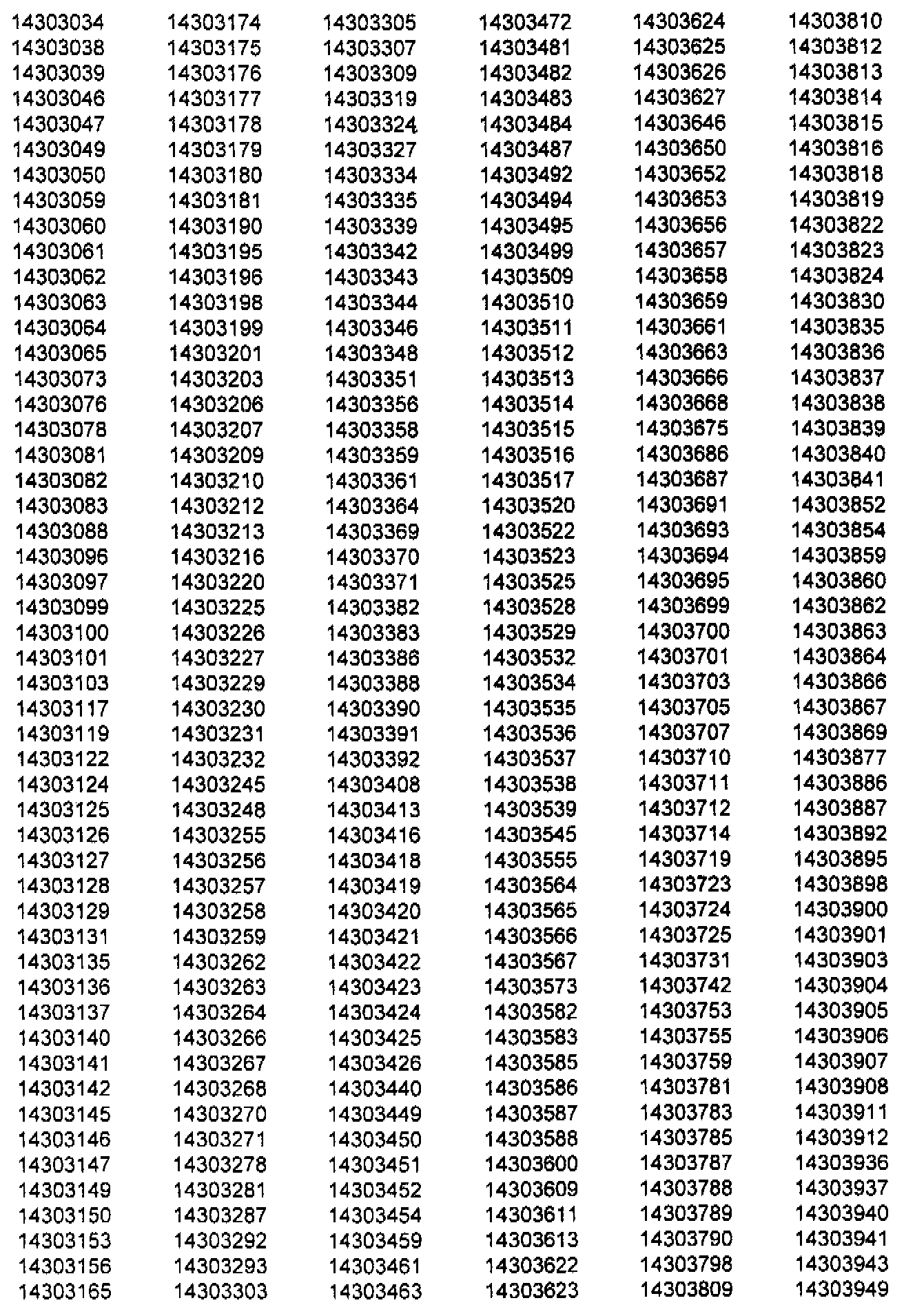

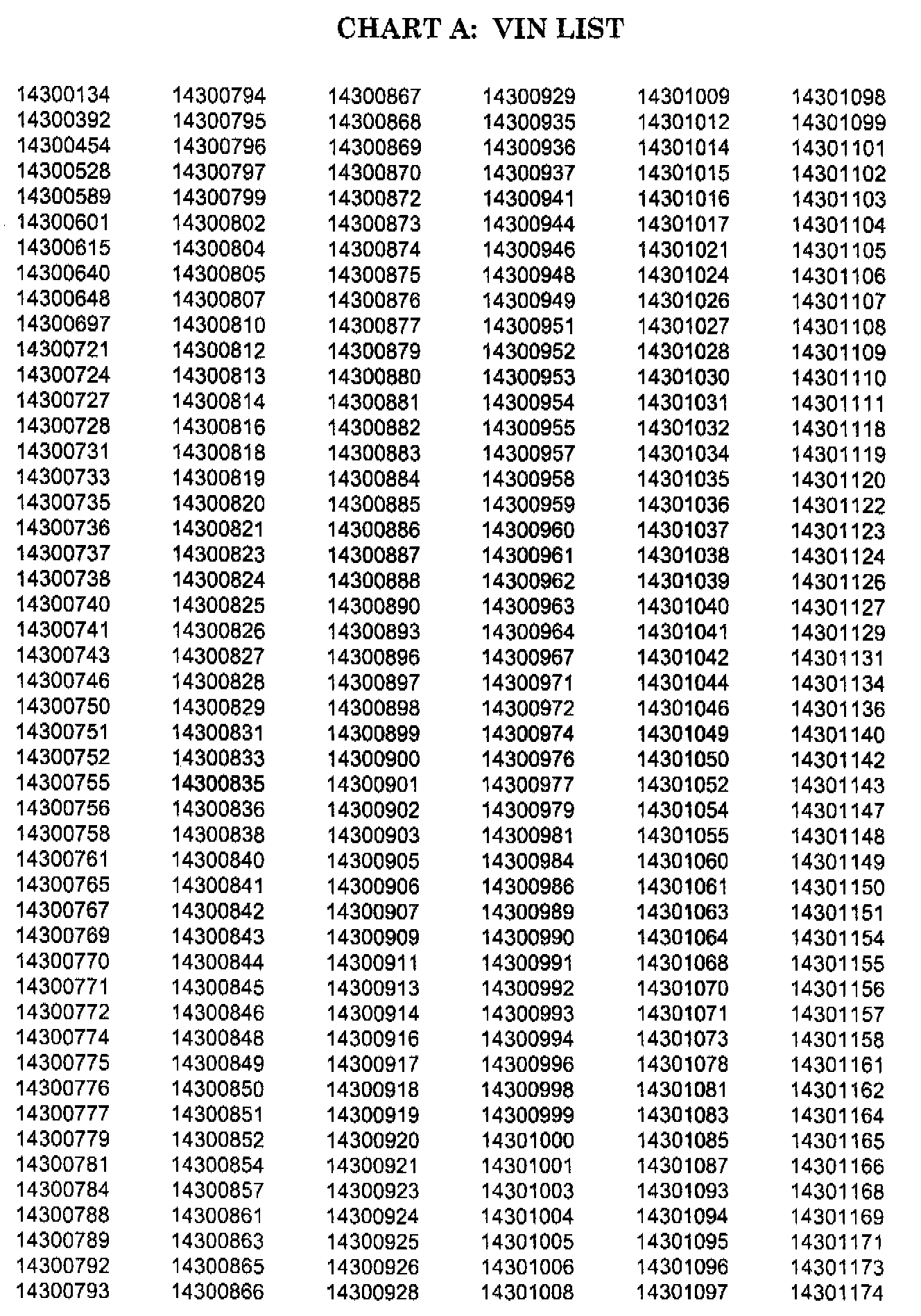

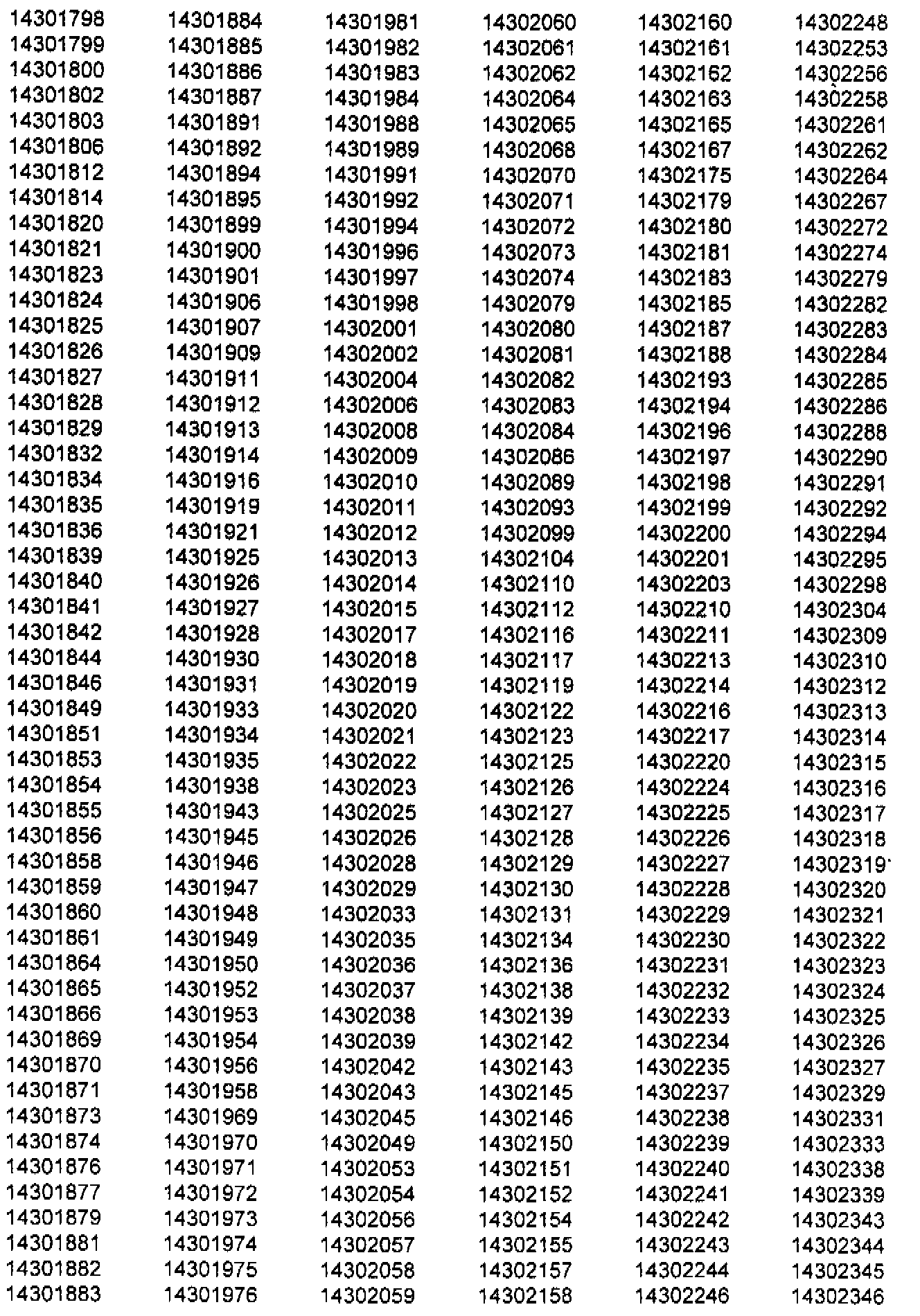

2001 Rodeo (UE) and Rodeo Sport (VIN List Included)

IMPORTANT:
Please verify affected VIN List to vehicle VIN.

SERVICE INFORMATION

Condition:

During manufacture of the subject hoses, due to mislabeling, the hose supplier employed incorrect rubber material for the outer layer of the fuel return hose. These hoses do not meet ozone-resistance specifications and cracks may develop after an extended period of time causing the hose to leak fuel.

Correction:

To remedy this condition, all specified vehicles must be visually inspected. LOT NUMBER 0707 stamped on the hoses identifies the affected hoses. If the hose is stamped with Lot # 0707, the hoses must be replaced. Please see attached Inspection and Installation Instructions for details.

DEALER RESPONSIBILITY

Isuzu dealers must service all affected vehicles at no charge to the owner, regardless of mileage, age of vehicle, or ownership.

Whenever a vehicle subject to this campaign is in a dealer's vehicle inventory, or arrives at a dealership for service, the dealer must take the necessary steps to ensure that this campaign correction has been made before selling or releasing the vehicle.

All unsold new vehicles in dealer's possession and subject to this campaign must be held and repaired per the service procedure in this Campaign Bulletin before customers take possession of their vehicles.

OWNER NOTIFICATION

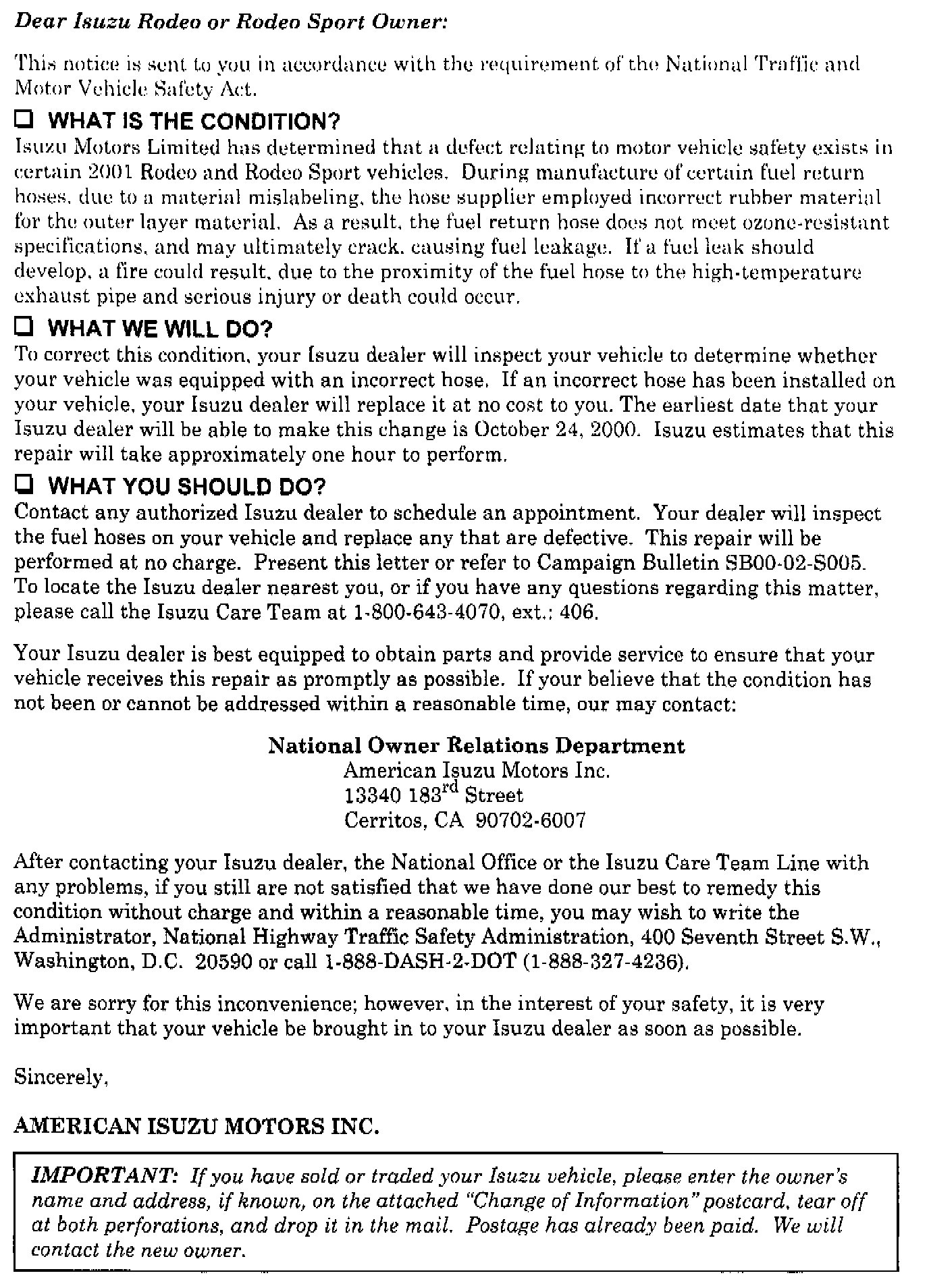

American Isuzu Motors Inc. (AIMI) will send a notification letter to owners of affected vehicles already retailed (See Included Copy). Dealers should follow up with vehicle owners by sending a Campaign Reminder Notice (AIMI SVCF-1052) to all vehicle owners listed in the AIMI Campaign Report AWS 123-1A. Dealers may obtain these postcards from their Regional Office.

APPLYING THE CAMPAIGN LABEL





1. Using a ball-point pen, fill out the following information on a campaign label (Part 2-90028-700-0)

^ This safety campaign number: 00V-298

^ Dealer Code

^ Repair Date: (Month/Day/Year)

2. Affix the campaign label adjacent to the manufacturer's identification label located on the driver's side B-pillar.

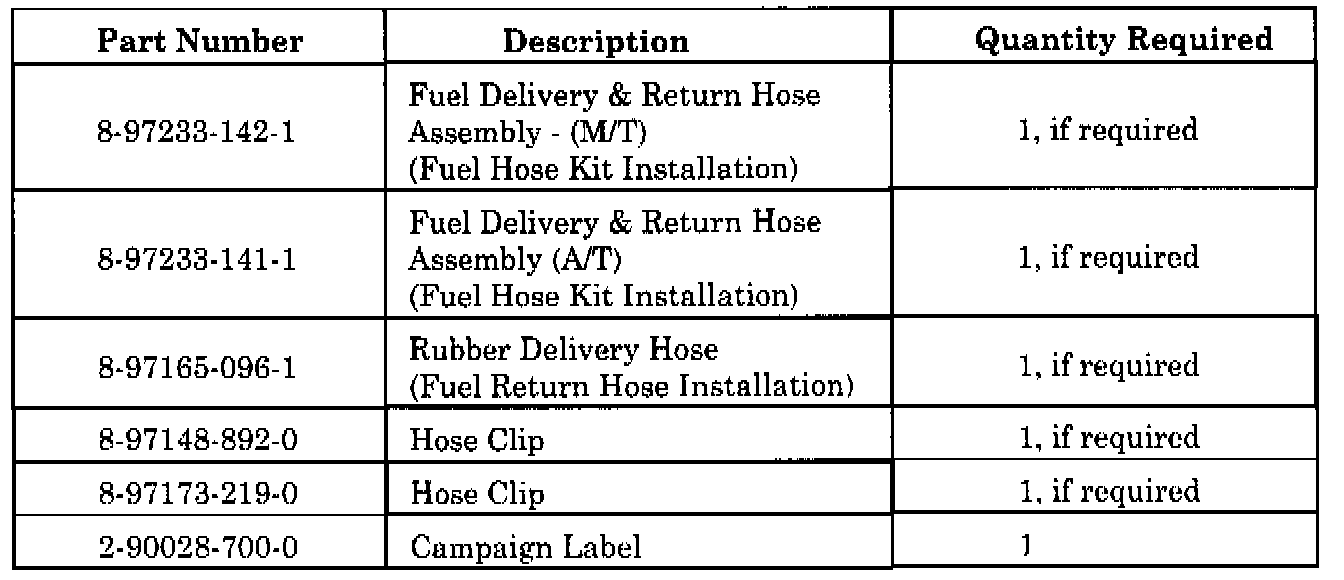

PARTS INFORMATION

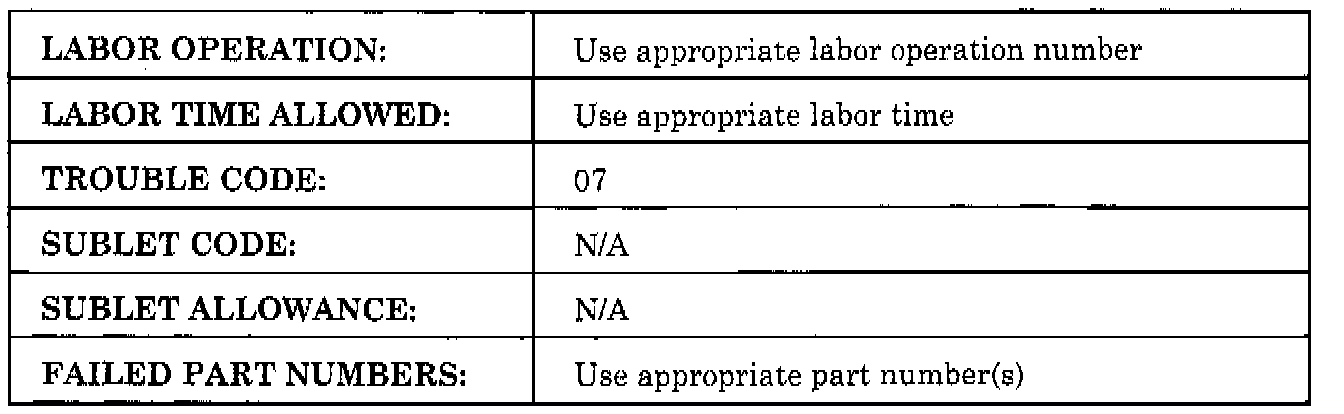

WARRANTY CLAIM INFORMATION

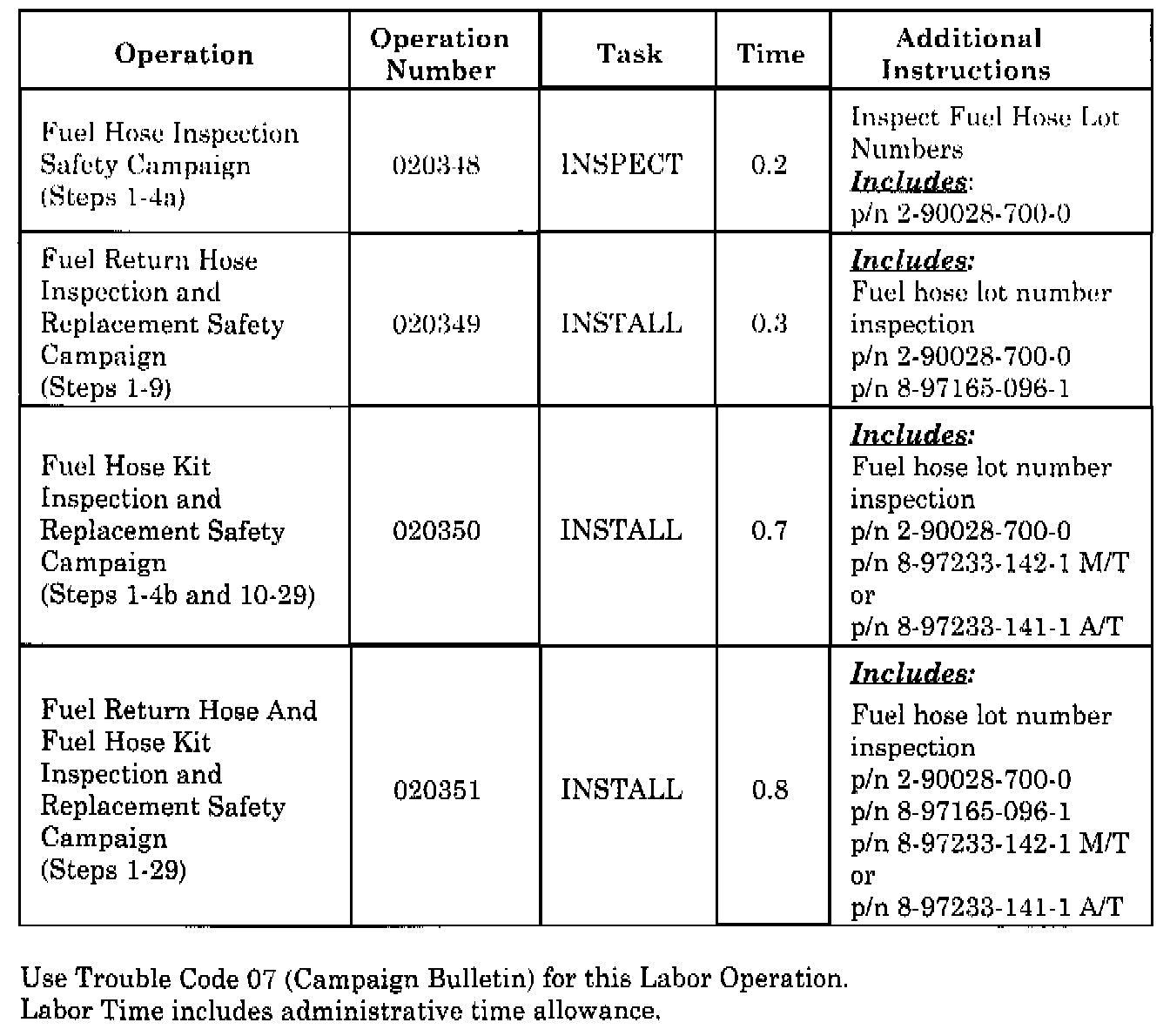

Use the new labor operation as shown.

WARRANTY CLAIM SUBMISSION INFORMATION





For your convenience please use the information when submitting your warranty claim as shown.
