Paint - Colors and Code Updates

BULLETIN NUMBER:
SB01-11-S002

ISSUE DATE:
FEBRUARY 2001

GROUP:
BODY

2001 ISUZU SPORT UTILITY VEHICLE and 2002 ISUZU AXIOM
PAINT COLORS AND CODES UPDATE

AFFECTED VEHICLES

^ 2001 VehiCROSS (VX), Trooper (UX), Rodeo (UE), and Rodeo Sport (UA)

^ 2002 AXIOM (UP)

SERVICE INFORMATION

This Service Bulletin lists exterior paint color information for all 2001 Isuzu Sport Utility Vehicles and 2002 Isuzu AXIOM.

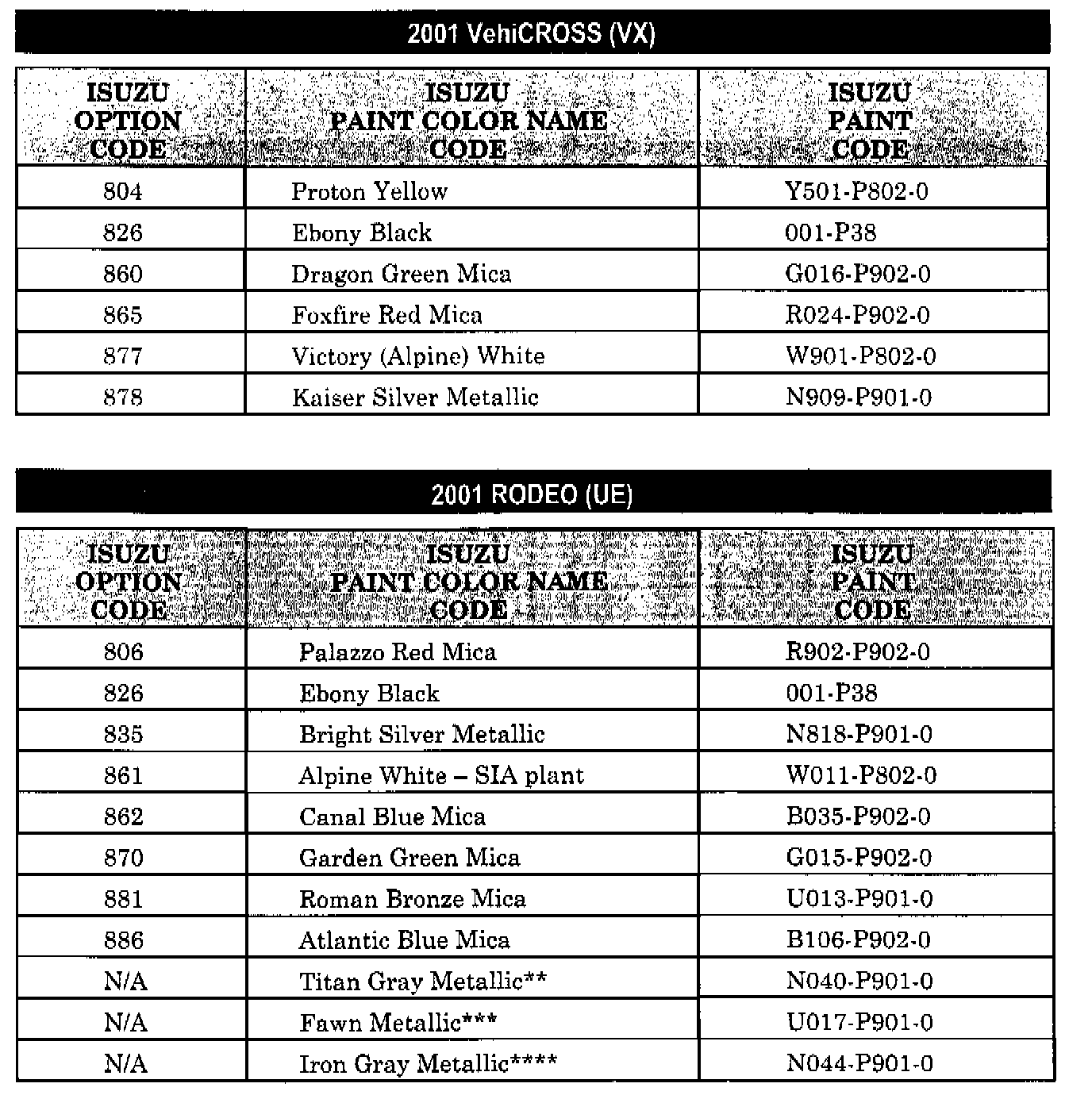

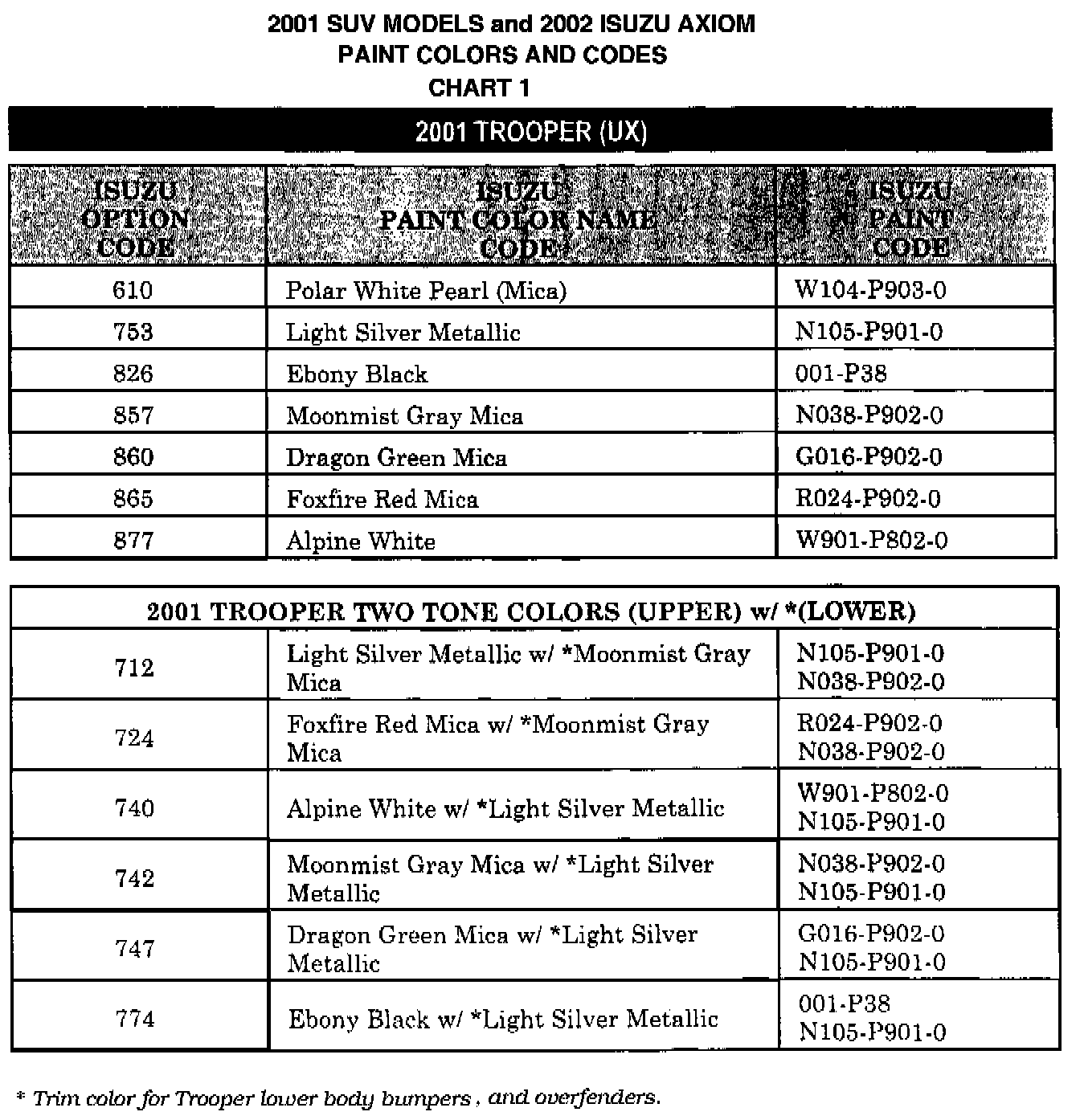

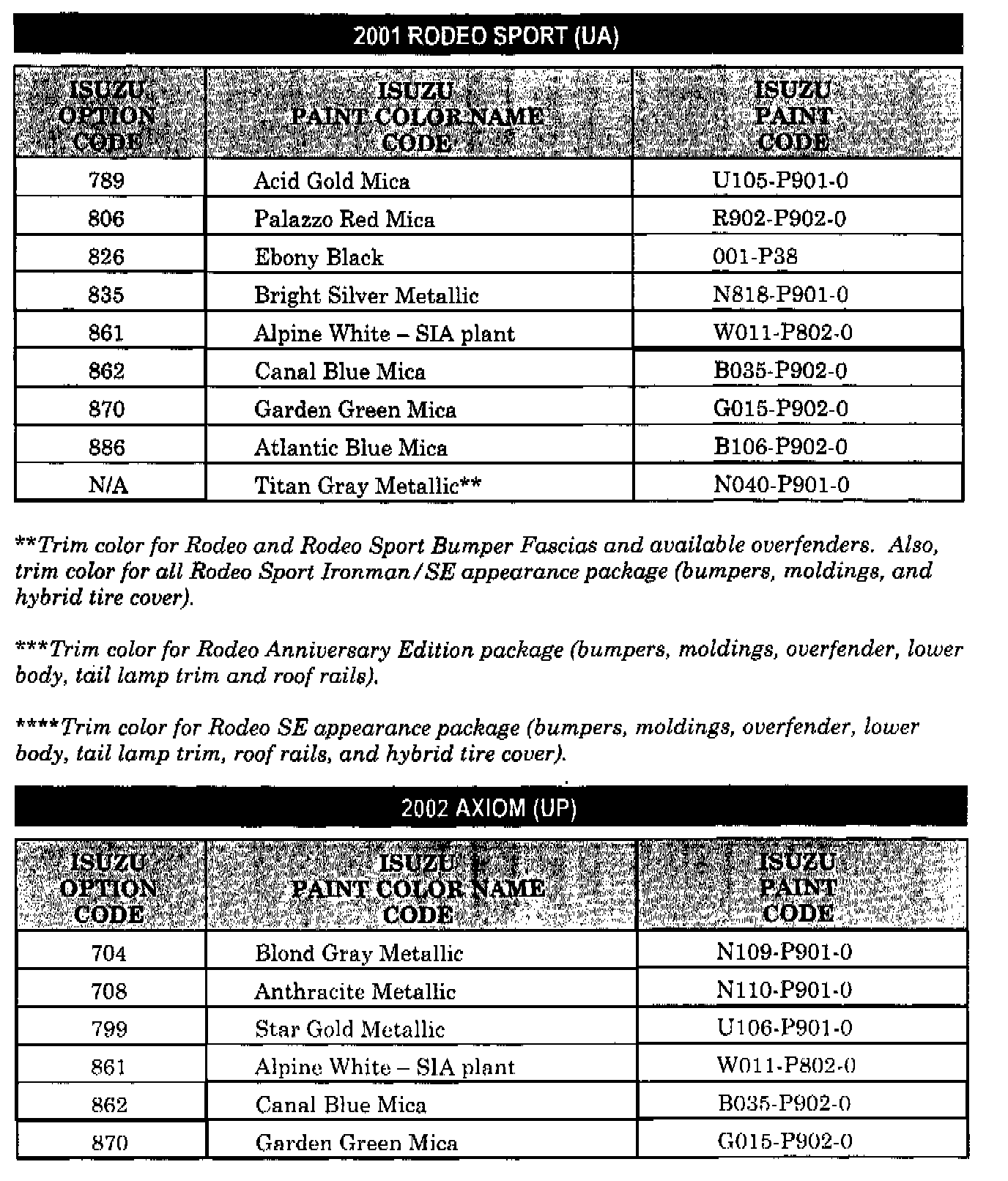

Chart 1 lists the Isuzu option code, Isuzu paint color name, and Isuzu paint code for all 2001 Isuzu Sport Utility Vehicles and 2002 Isuzu AXIOM, in option code ascending order.

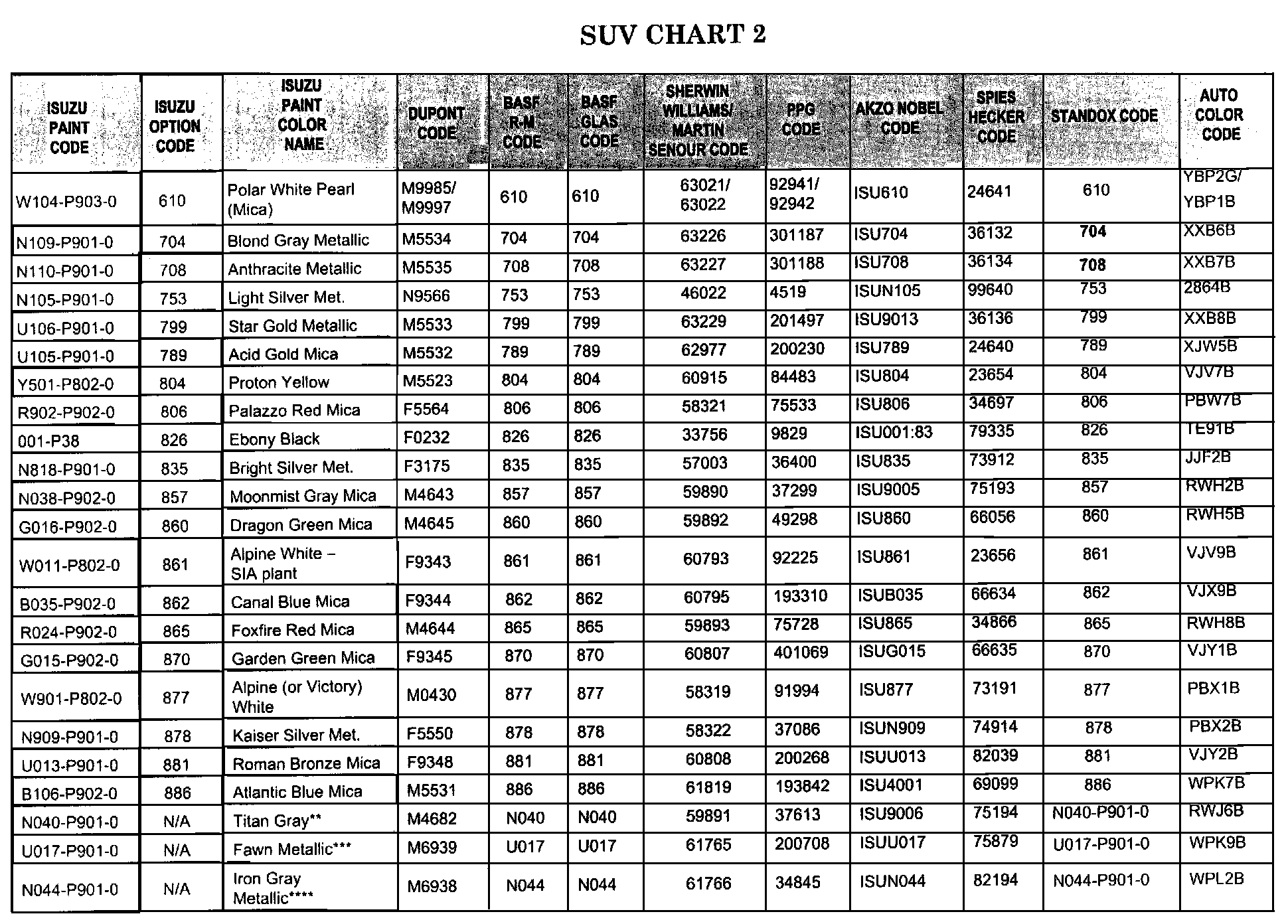

Chart 2 lists the Isuzu paint code, Isuzu option code, and Isuzu paint color name, followed by the corresponding aftermarket paint vendor codes.

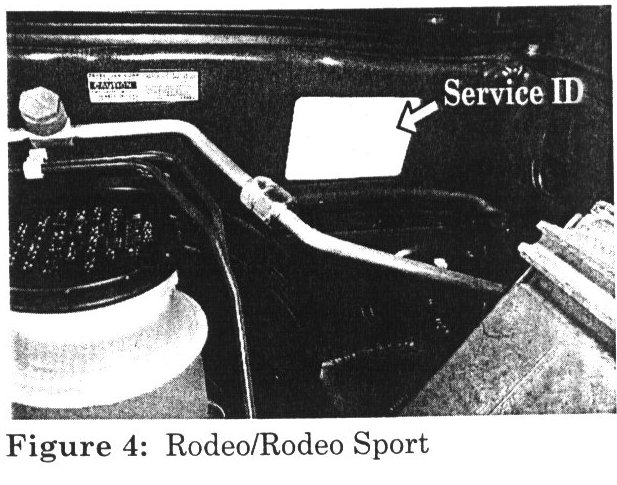

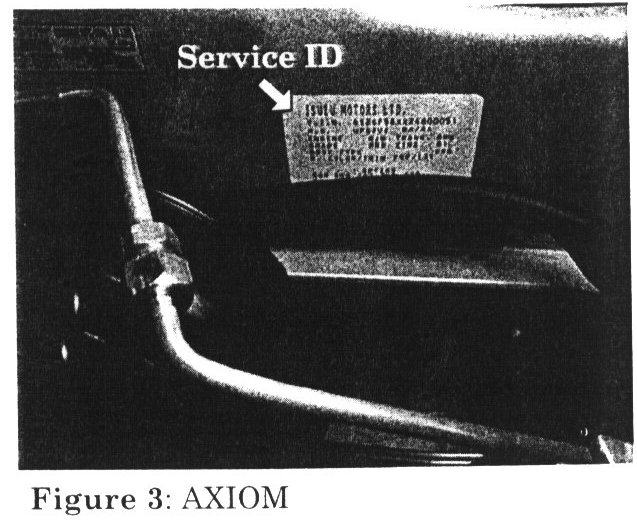

The 3-digit Isuzu option code is printed on the Service ID Information Plate (mounted under the hood), on the bulkhead at the rear of the engine compartment for all ISUZU models listed above. (Figures 1, 2, 3, and 4)

All aftermarket paint cross-reference information, has been supplied by the paint manufacturers. In some cases, the aftermarket manufacturer's paint color name may differ from the Isuzu paint color name listed in this Service Bulletin.

IMPORTANT!
Due to differences in manufacturing plants, be sure to specify the manufacturing plant when ordering paint. The paint color name is the same, but the paint formula differs between assembly plants. Check the VIN plate to verify where the vehicle was manufactured.

Give this information to your paint supplier to ensure receiving the exact formula required.
