Mechanical Specifications

DIFFERENTIAL (REAR) - RODEO

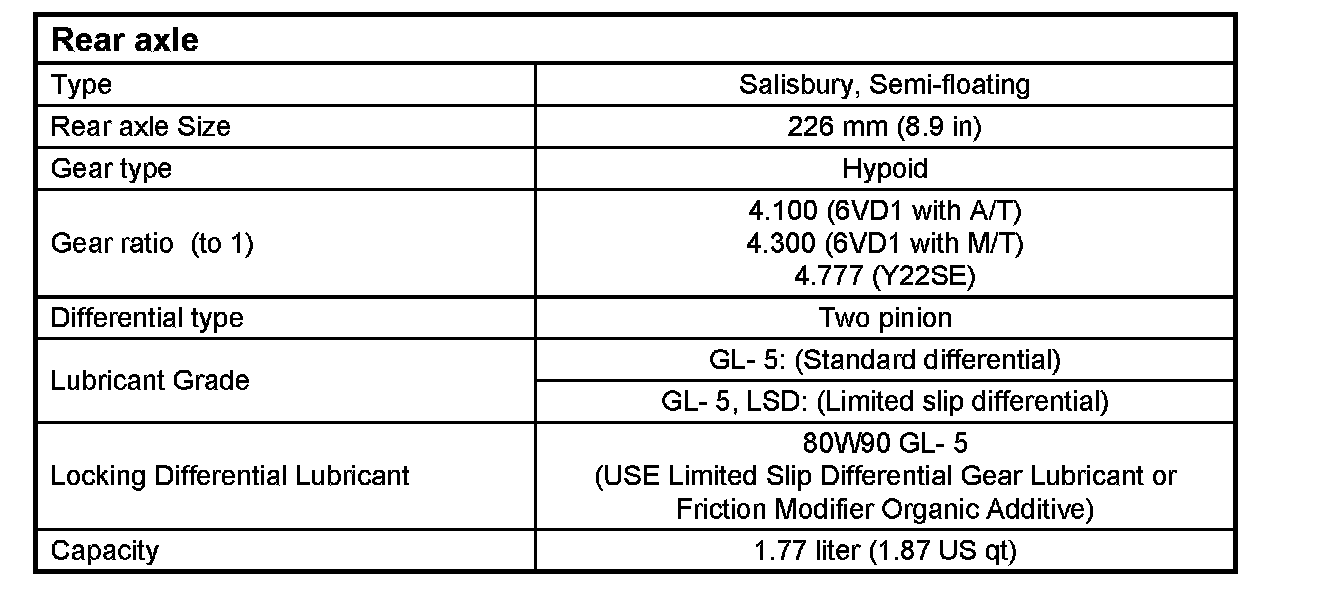

General Specifications

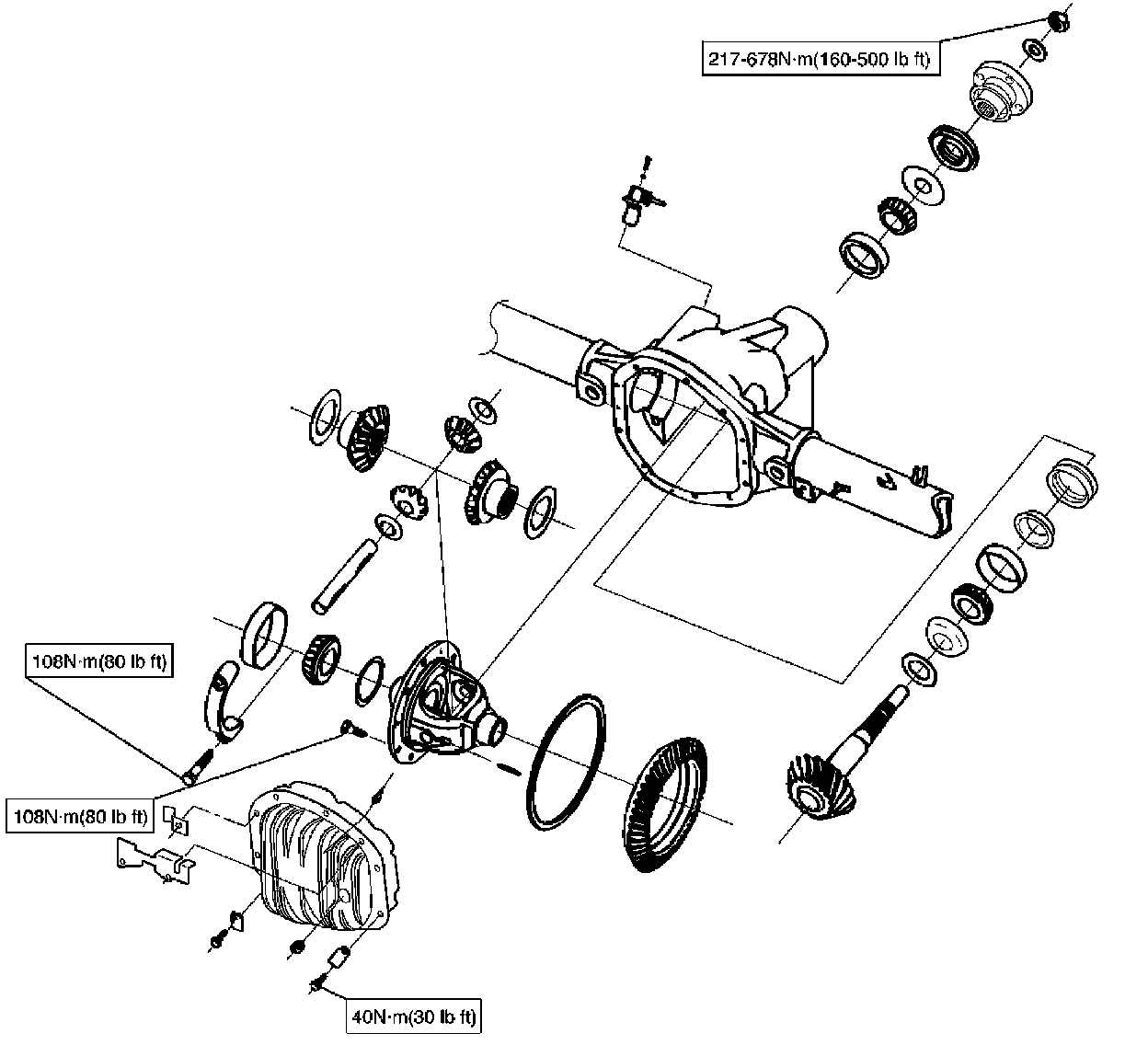

Torque Specifications


DIFFERENTIAL (REAR) - RODEO SPORT

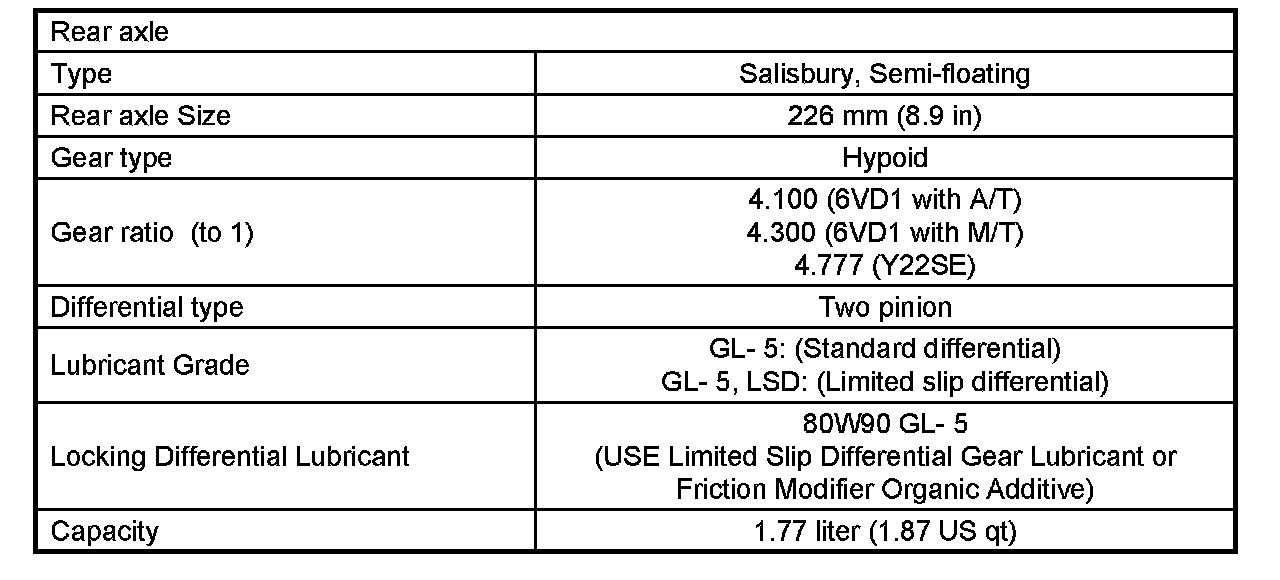

General Specifications
