1. Getting Started

NOTE: This is the only information provided by the manufacturer for reading Trouble codes for this system.

Reading Diagnostic Trouble Codes Using The Tech 2 Scan Tool
The procedure for reading diagnostic trouble code(s) is to use a diagnostic Scan Tool. When reading DTC(s), follow instructions supplied by tool manufacturer.

Getting Started
Before operating the Honda PCMCIA card with the Tech 2, the following steps must be performed:
1. The Honda 2000 System PCMCIA card (1) inserts into the Tech 2 (5).
2. Connect the SAE 16/19 adapter (3) to the DLC cable (4).
3. Connect the DLC cable to the Tech 2 (5)
4. Make sure the vehicle ignition is off.




5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC.
6. Turn on the vehicle ignition.




7. Power the Tech 2 ON and verify the Tech 2 power up display.

NOTE: The RS232 Loop back connector is only to use for diagnosis of Tech 2. Refer to user guide of the Tech 2.

Operating Procedure (For Example):

Operating Procedure (For Example)

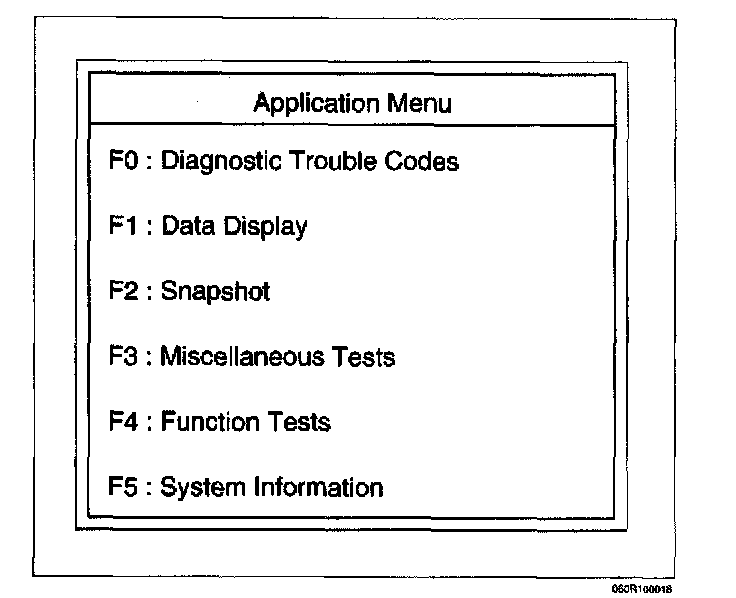

The power up screen is displayed when you power up the tester with the Honda systems PCMCIA card. Follow the operating procedure as given in the figure.




Menu
- The table shows which functions are used for the available equipment versions.
