Hard Starting

Engine Diagnosis
First of all the engine diagnose to check fuel quantity, engine oil level and engine coolant level.

Hard Starting

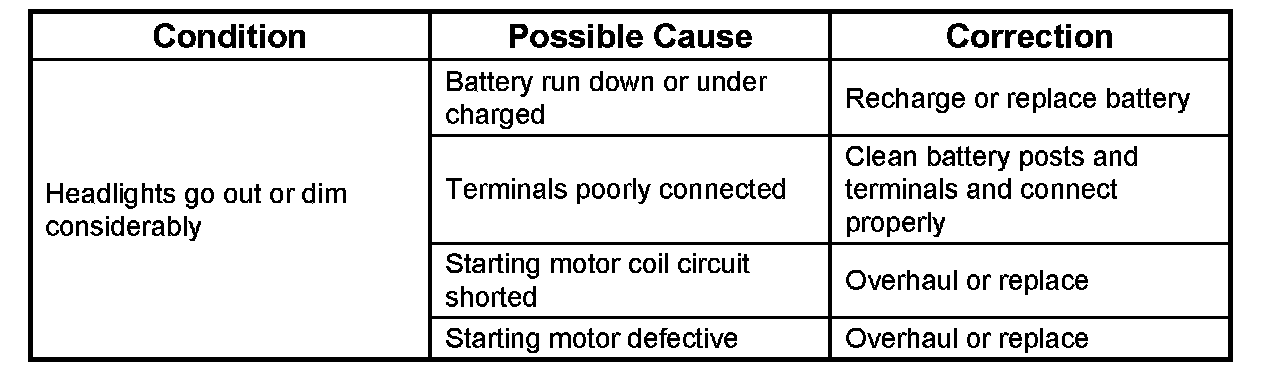

1. Starting Motor Does Not Turn Over
Troubleshooting Procedure
Turn on headlights and starter switch.

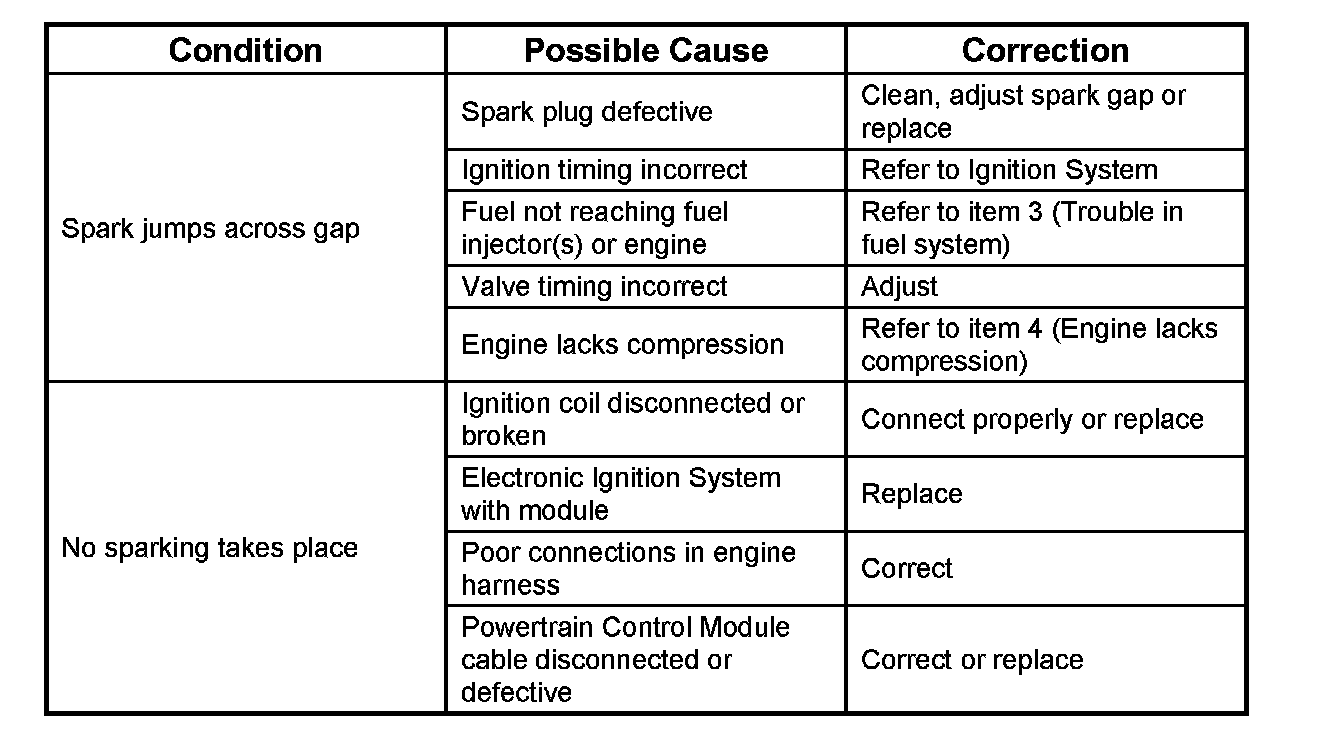

2. Ignition Trouble - Starting Motor Turns Over But Engine Does Not Start
Spark Test
Disconnect a high tension cable from any spark plug. Connect the spark plug tester (for example J-26792), crank the engine, and check if a spark is generated in the spark plug tester. Before cranking the engine, make sure that the spark plug tester is properly grounded. To avoid electrical shock, do not touch the high tension cable while the engine is running.

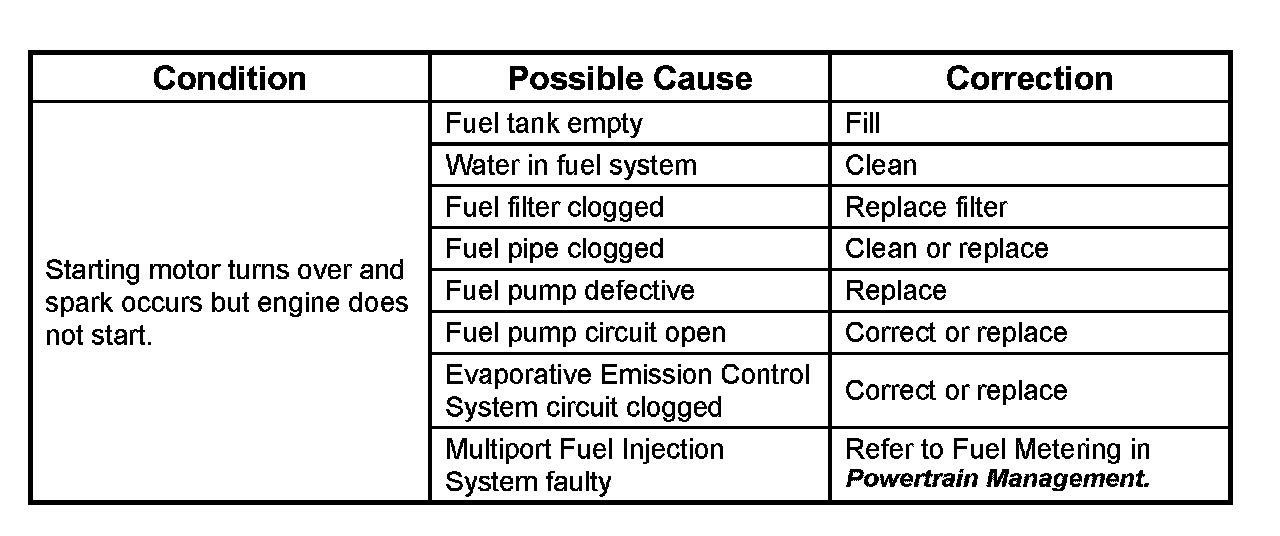

3. Trouble In Fuel System

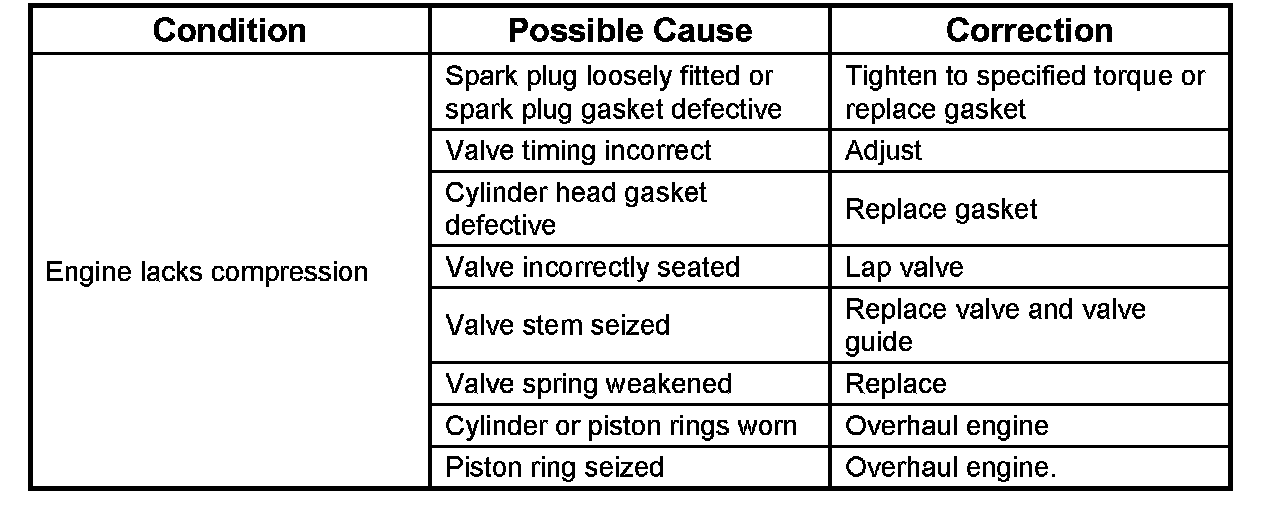

4. Engine Lacks Compression
