Characteristic Test
Characteristic Test:
Characteristic Test
For easily confirming the characteristics, conduct the no load test as follows:
Rating as short as 30 seconds requires rapid testing.

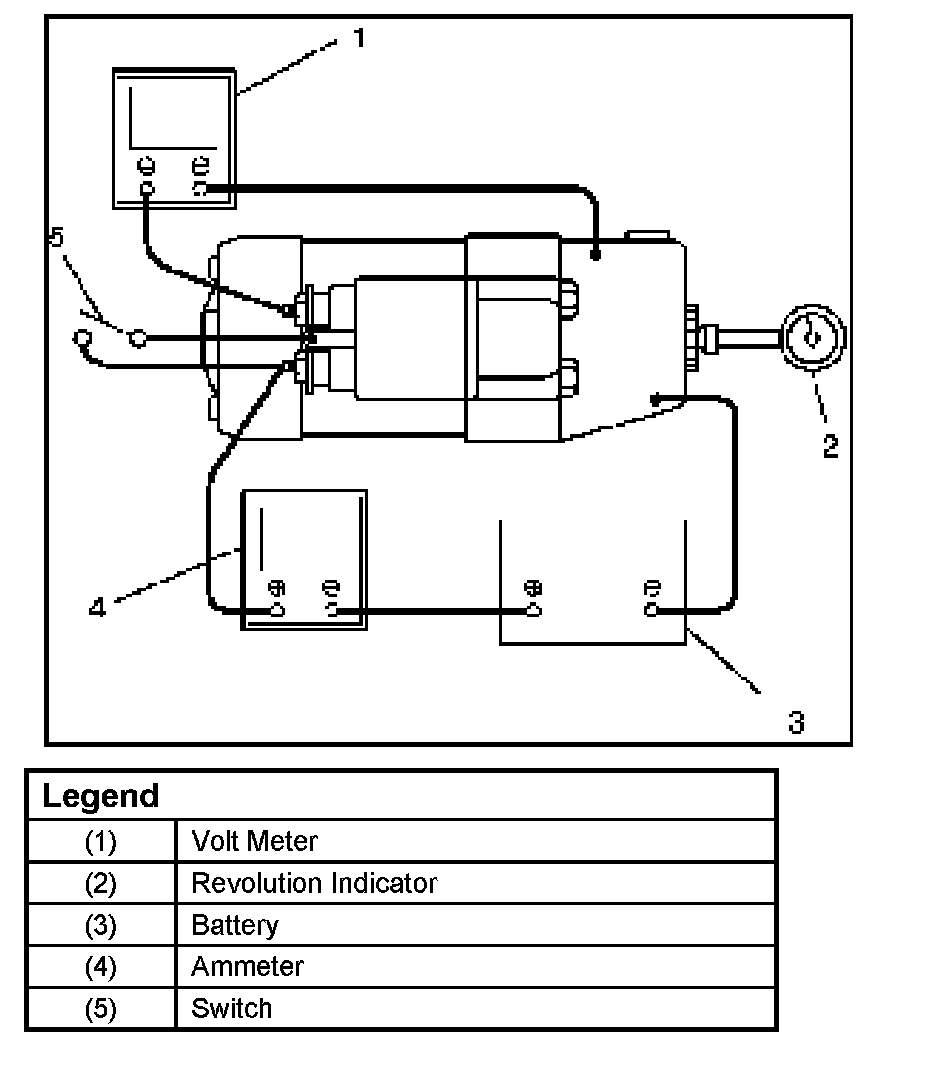

Fix the starter on the test bench, and wire as shown in illustration. When the switch is closed, the current flows and the starter runs under no load. At this time, measure current, voltage and speed to check if they satisfy the standard.
