Quarter & Back Window

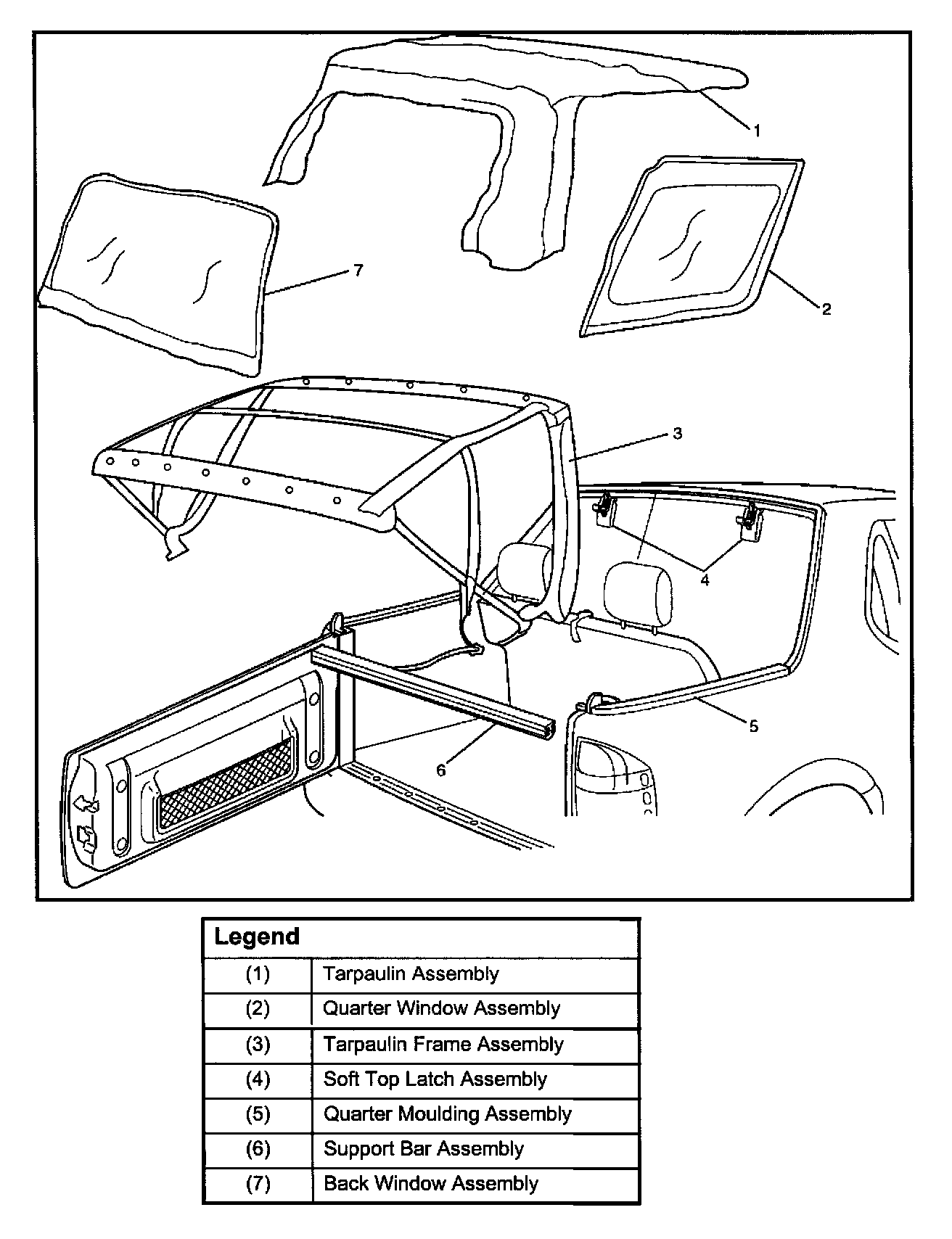

Soft Top Assembly And Associated Parts:






REMOVAL

1. Remove the quarter window assembly (LH & RH).
- Peel off the velcro fasteners and unzip the zippers.




2. Remove the back window assembly (2).
- Peel off the velcro fasteners (3), unzip the zipper (1) and pull the back window assembly toward the rear together with the support bar assembly (4). then slide the back window out to the side.

NOTE: After removing the side windows and back window, be careful not to bend or place other objects on top of them as this could scratch or crack them.

Exercise caution when handling and storing the windows.




3. Press the lock button (2) of the soft top latch assembly (1) and lower the lock knob to disengage the lock. then remove the hooks of the tarpaulin frame assembly (LH & RH).

4. Remove the tarpaulin assembly.
- Disengage the 14 hooks.

5. Remove the tarpaulin frame assembly.
- Remove the four fixing bolts.

INSTALLATION

To install, follow the removal steps in the reverse order, noting the following point.




1. After securely covering the zippers (3) with the flaps (1), smooth out the fastener tape (2) with your hands so that they are no folds or turned up portions of the flaps.
