Sunroof Glass

SUNROOF GLASS (SWB)

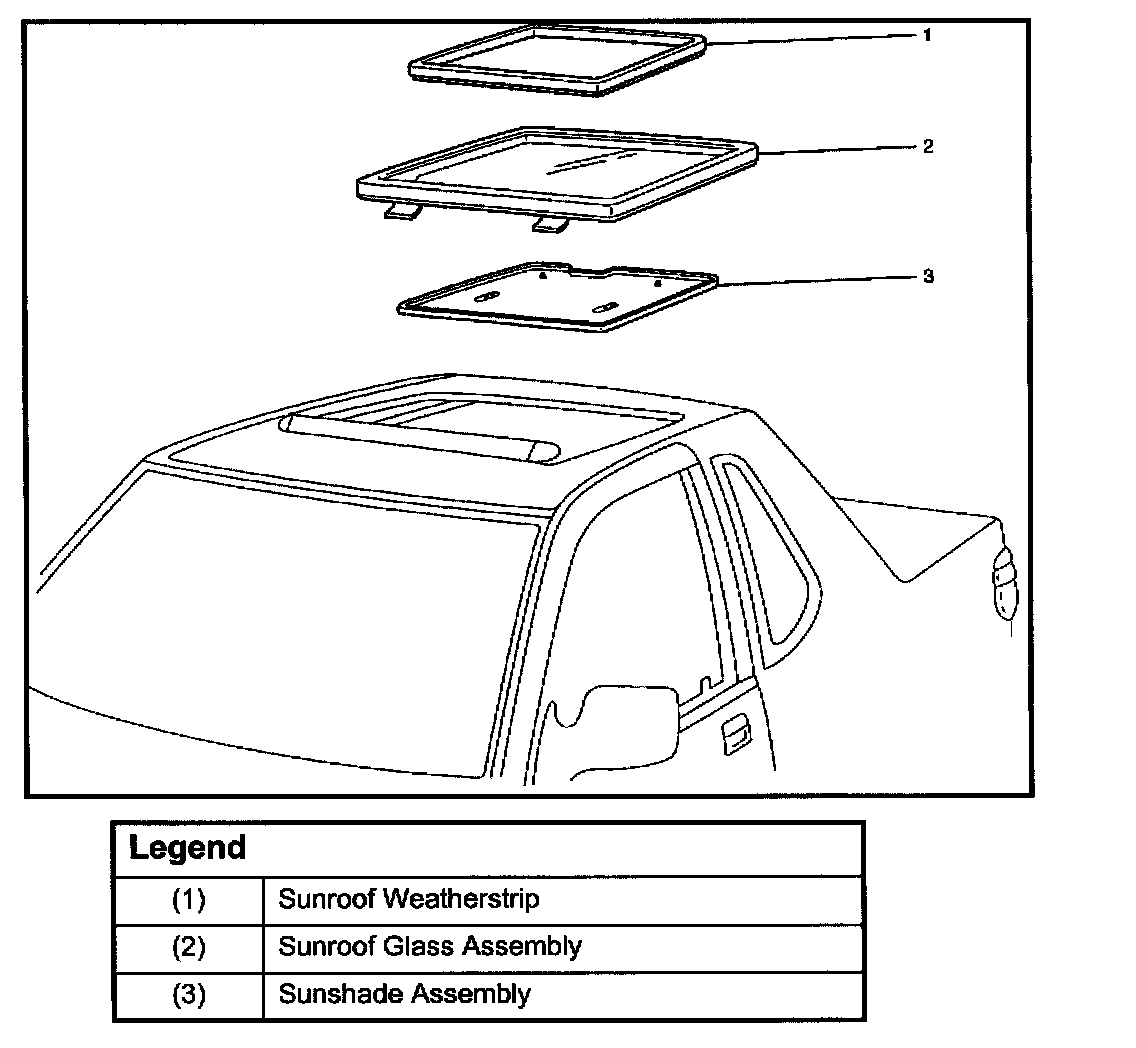

Sunroof Glass And Associated Parts:

REMOVAL

1. Disconnect the battery ground cable.




2. Remove the sunshade assembly.

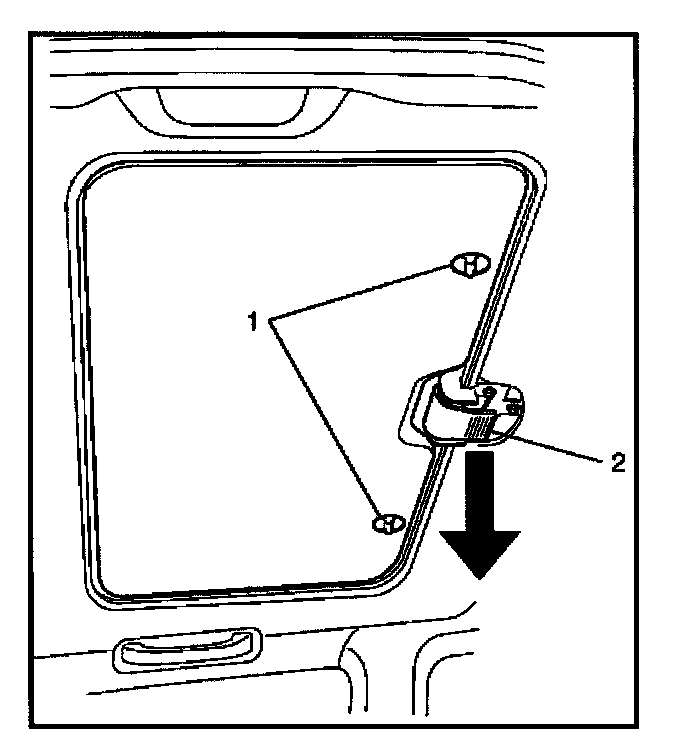

- Turn the knobs (1) 90 degrees and pull it out at angle. Then pull the sunroof handle (2) to disengage the lock.




3. Remove the sunroof glass assembly.
- Push the safety lever (2) behind the handle and push in on the hinge pins (1) on the left and right to disengage them. Raise the rear end of the sunroof glass assembly at an angle pull it free.

4. Remove the sunroof handle cover and sunroof handle plate.
- Remove the screw from the cover and the three fixing nuts from the plate.

5. Remove the weatherstrip.

INSTALLATION

To install, follow the removal steps in the reverse order, noting the following points:




1. When attaching the sunroof weatherstrip (1), make sure that the lip (2) securely overlaps the headlining (3).
- Assemble with the positioning marks centered toward the rear of the vehicle.

2. Tighten the sunroof handle plate fixing nuts to the specified torque.
Torque: 8 N.m (69 lb.in)
