Backup Light Bulb: Service and Repair




REMOVAL
1. Disconnect the battery ground cable.

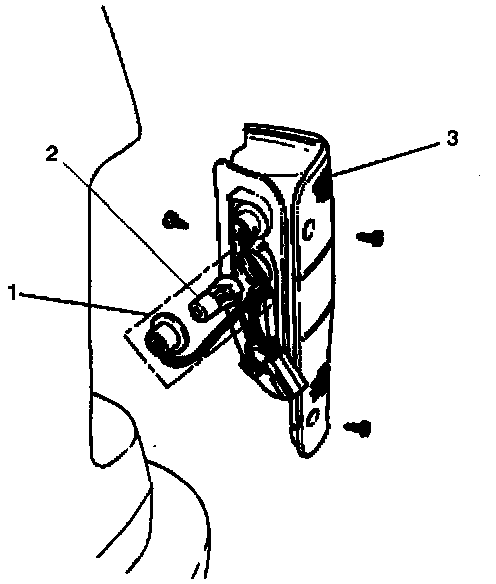

2. Remove three screws and release the lock at two positions.
3. Remove the rear combination light (3).
4. Remove the backup light socket/bulb by turning it counterclockwise.
5. Remove the bulb (2) by turning it counterclockwise while pushing it at the same time.

INSTALLATION
To install, follow the removal steps in the reverse order.
