Differential Assembly: Application and ID
Rear

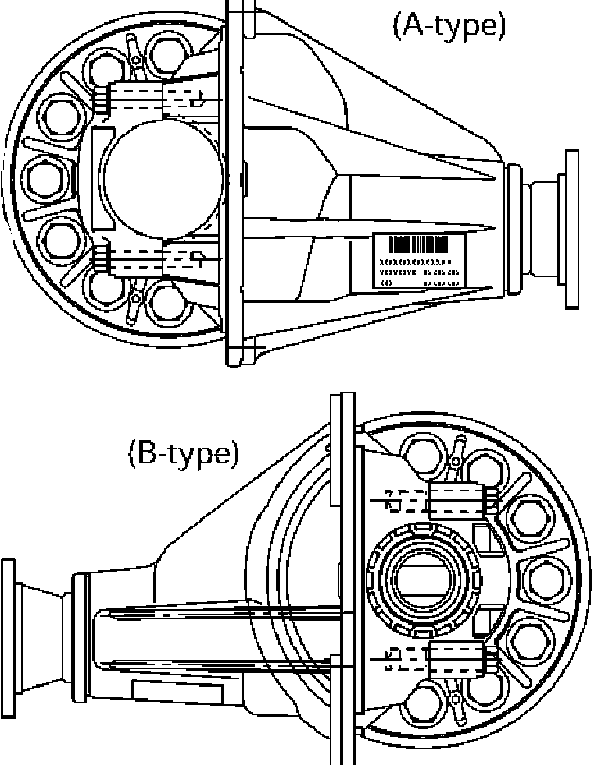

The 244 differential has two N types A-type and B-type.
A-type: the sticker with bar code is attached.
B-type: the sticker with no bar code on the lower part of carrier is attached.
