Body / Frame Mount Bushing: Service and Repair

Body Mounting

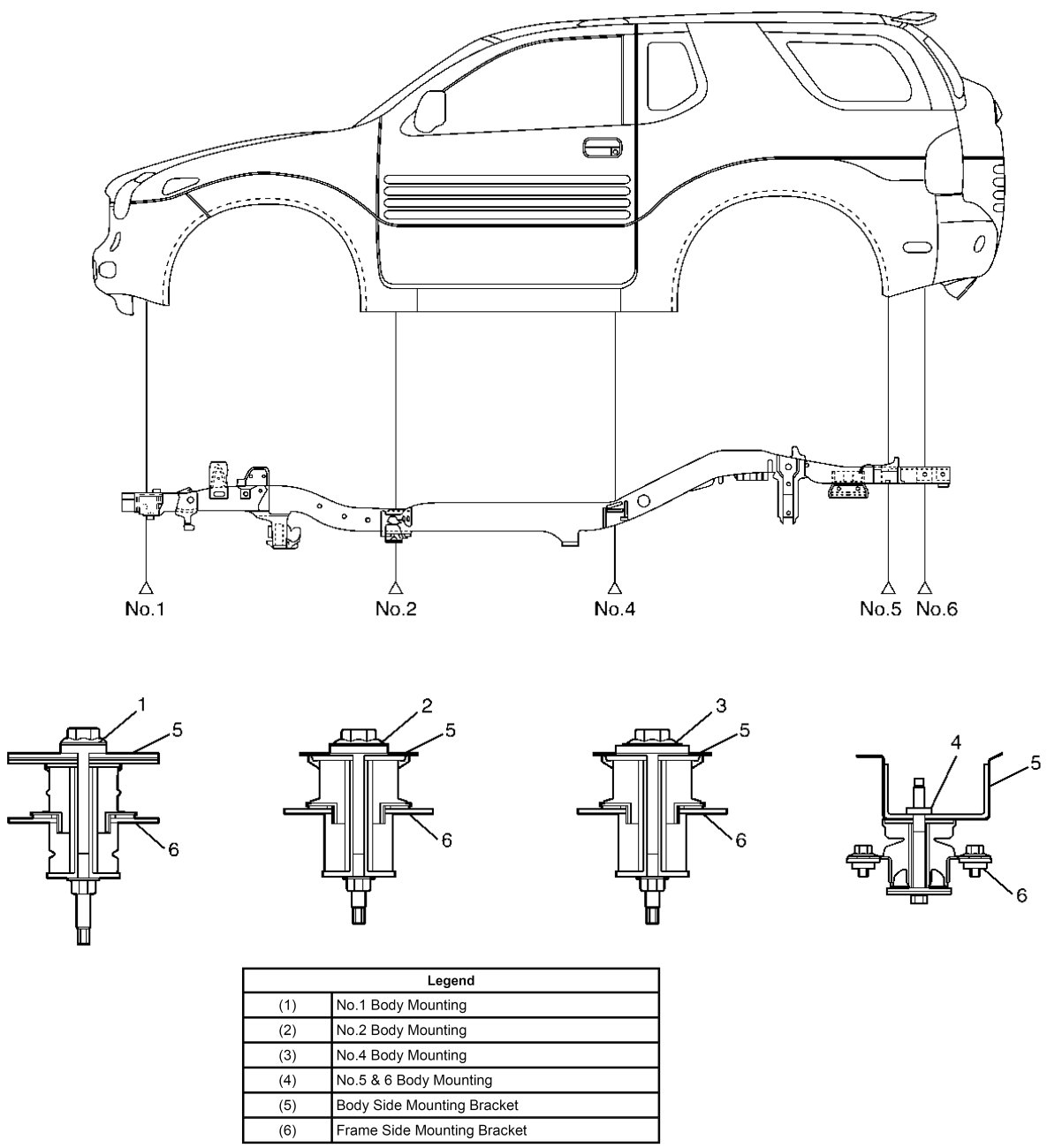

Parts Location







Tightening Torque

Tighten the body mounting bolts to specified torque.

Torque: 50 N.m (41 lb ft)
