Grille: Service and Repair

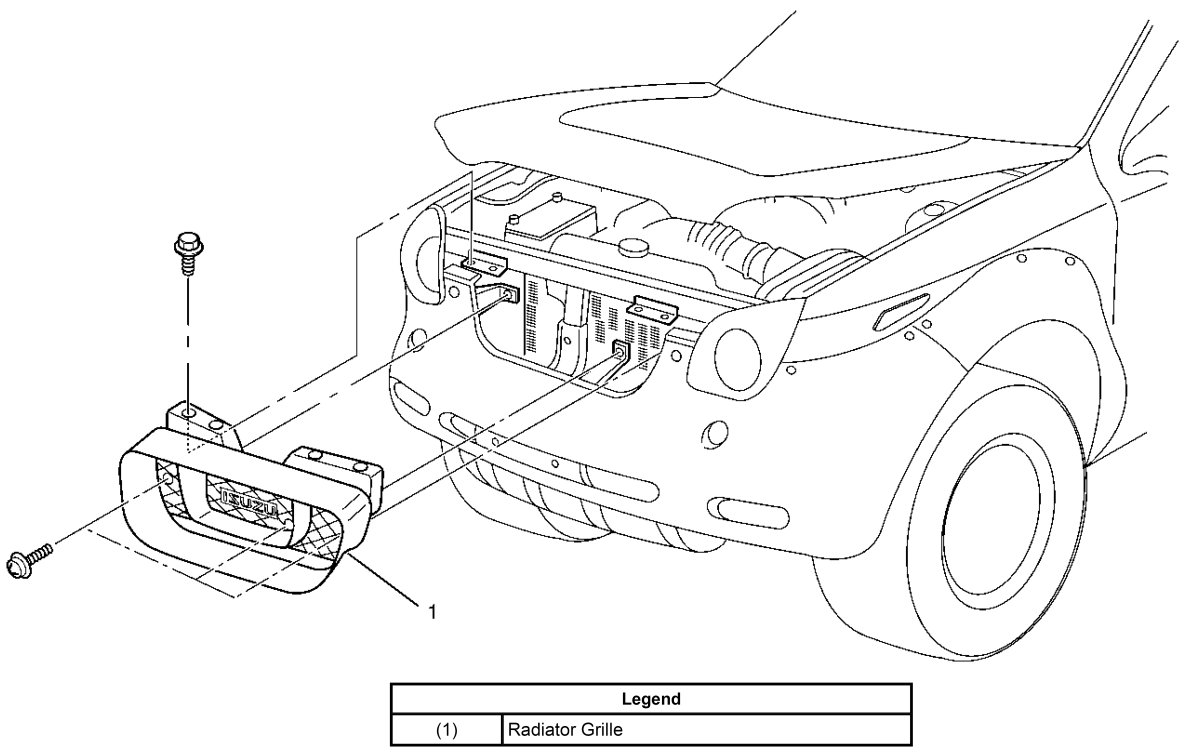

Radiator GrilleParts Location:
Removal 1.
Open and support the engine
hood.
2.
Disconnect the battery ground cable.
3.
Remove the radiator grille.
-
Remove the four fixing bolts and three fixing screws.
InstallationTo install, follow the removal steps in reverse order.
