Power Mirror Switch: Service and Repair

Door Mirror Control Switch and Door Mirror Defogger Switch Removal

1. Disconnect the battery ground cable.

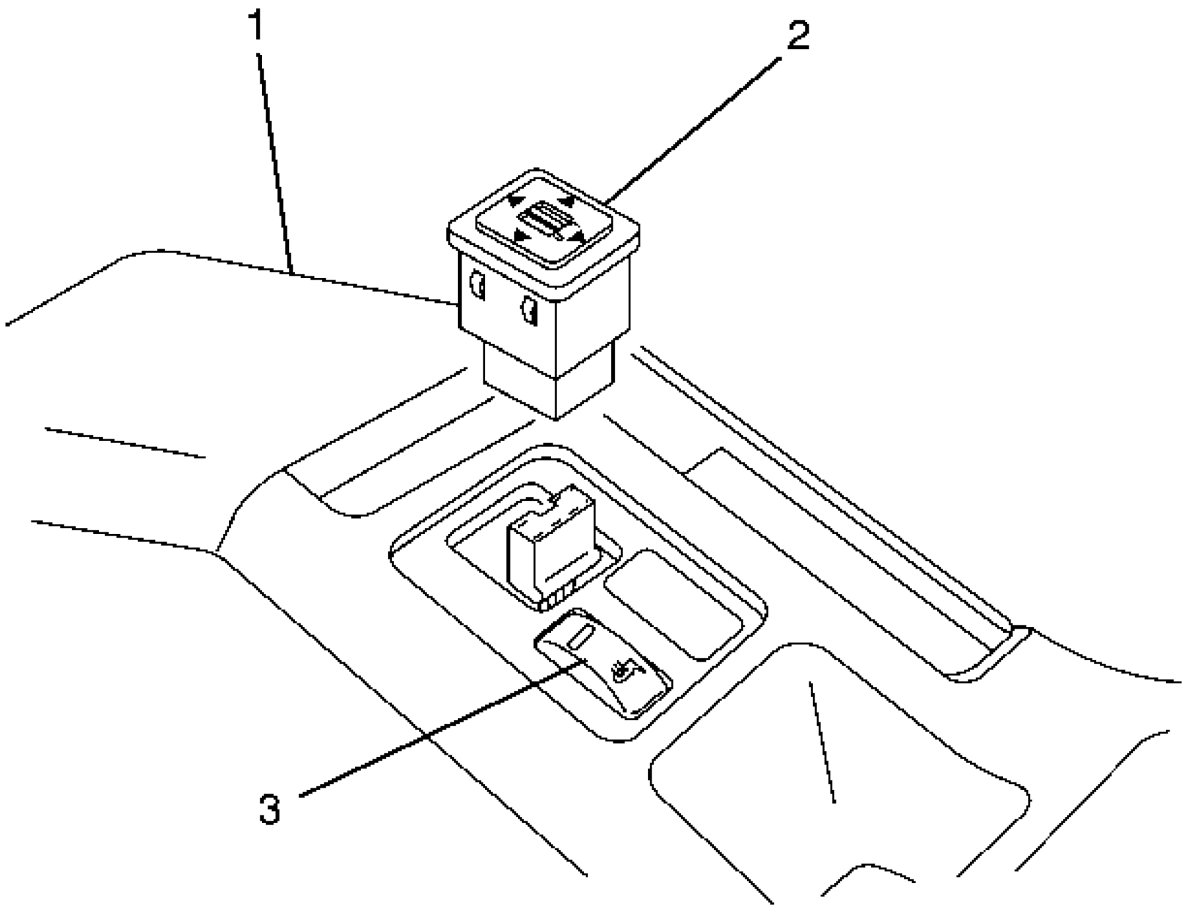

2. Remove rear console assembly (1).
- Remove the 4 screws.

3. Remove door mirror control switch (2).
- Push the lock from the back side of the rear console.

4. Remove door mirror defogger switch (3).
- Push the lock from the back side of the rear console.







Installation

To install, follow the removal steps in the reverse order, noting following points.
- Depress the each switch with your fingers until it lock securely.
