Mirrors: Service and Repair

Door Mirror

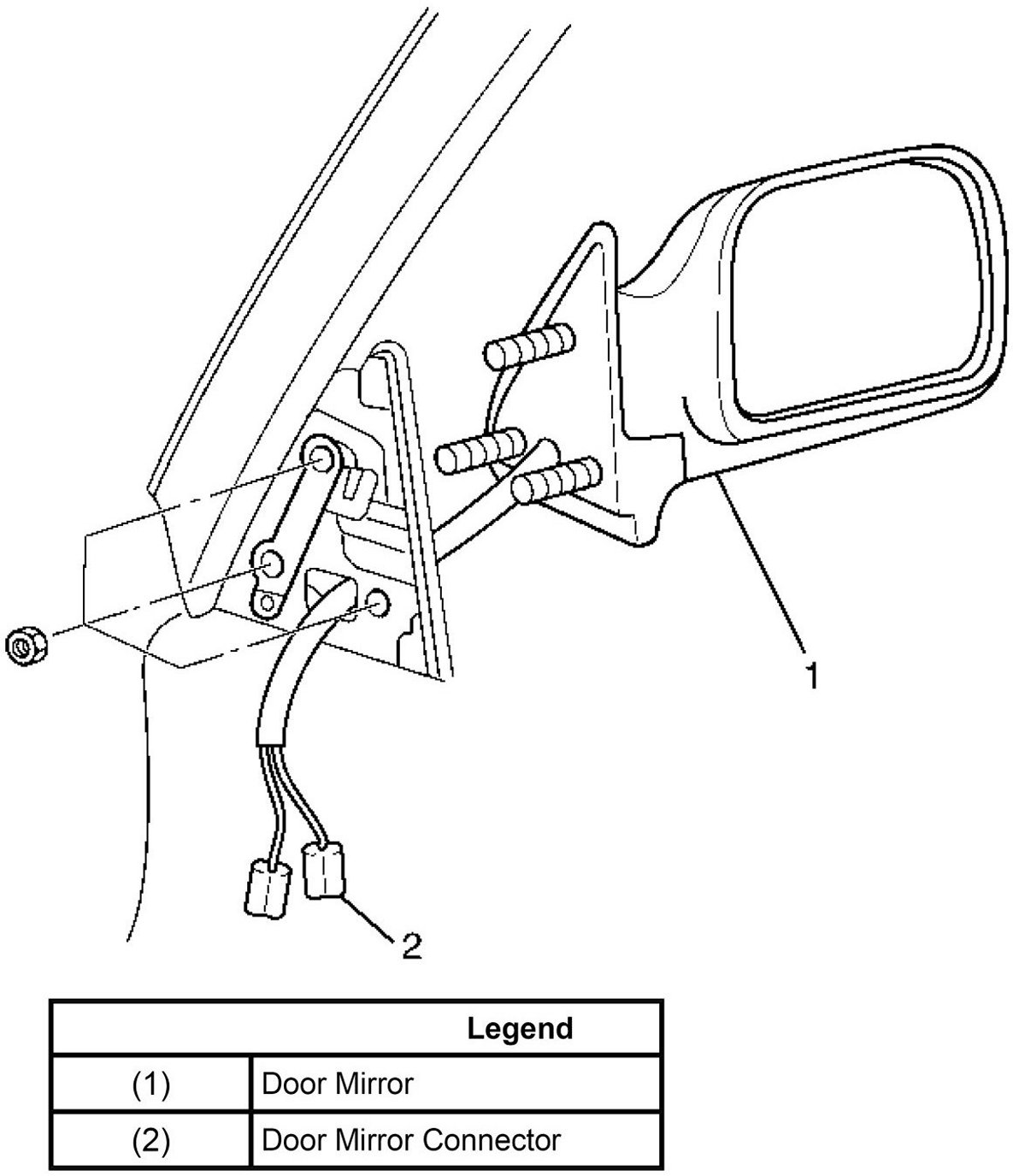

Door Mirror and Associated Parts:

Removal

1. Disconnect the battery ground cable.
2. Remove the tweeter assembly.
3. Remove door mirror.
- Remove the three fixing nuts and disconnect the connectors.

Installation

To install, follow the removal steps in the reverse order, nothing the following points.
- Tighten the door mirror fixing nuts to the specified torque.
Torque: 8 N.m (69 lb in)
