Front Seat Assembly

Front Seat Assembly

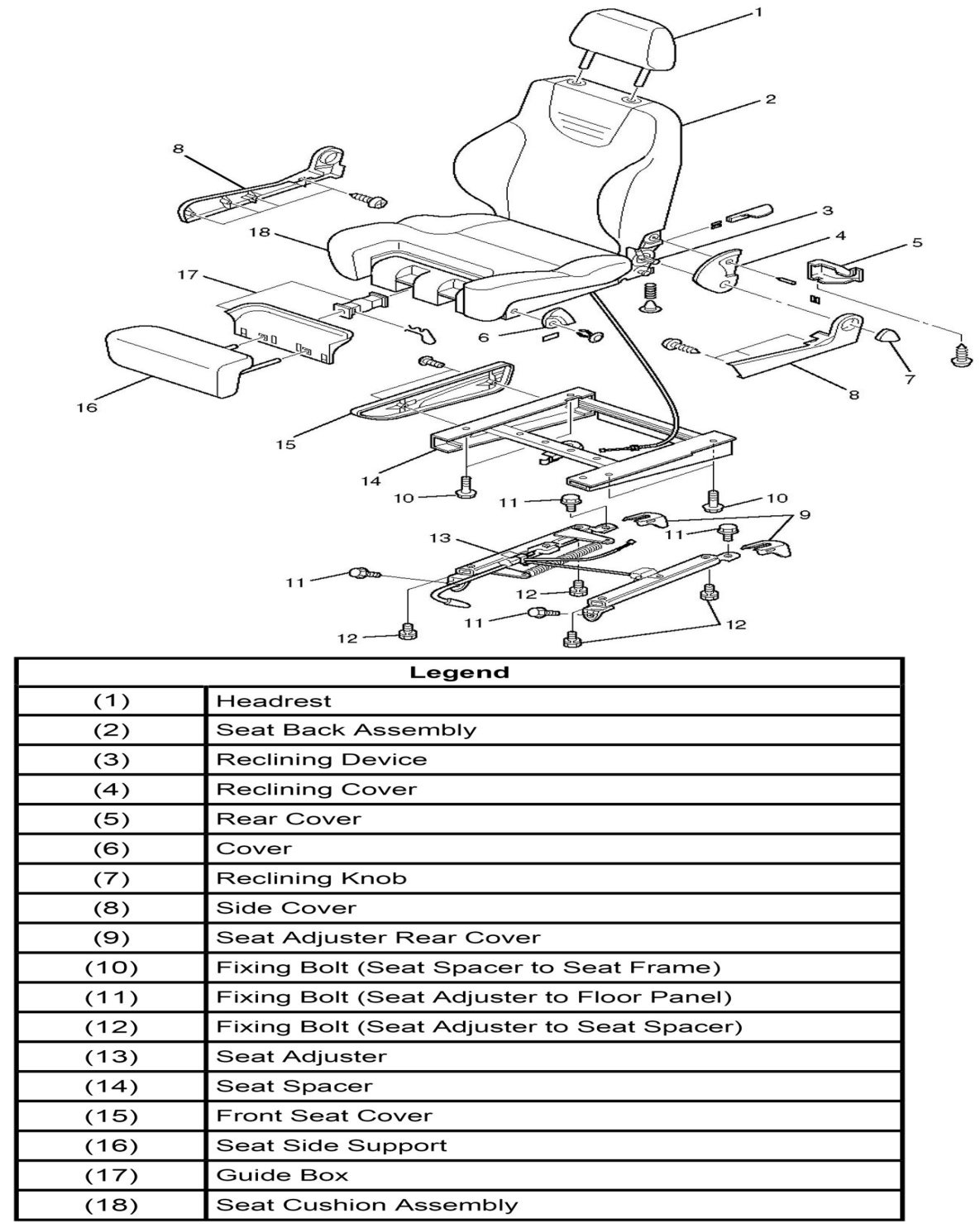

Disassembled View

This illustration is based on the passenger's side seat.

Disassembled View:

Disassembly

1. Remove the headrest.
2. Remove the front seat cover.
- Remove the two fixing screws.

3. Remove the reclining knob.
4. Remove the reclining cover.
5. Remove the cover.
6. Remove the side covers.
- Remove the four fixing screws.

7. Remove the rear cover.
8. Remove the reclining device.
- Remove the four bolts.
- Remove the walk-in cable from reclining device (Passenger seat side).

9. Remove the seat back assembly.
10. Remove the seat adjuster.
- Remove the four fixing bolts.
- Remove the walk-in cable from seat adjuster (Passenger seat side).

11. Remove the seat spacer.
- Remove the four fixing bolts.

12. Remove the seat cushion assembly.
13. Remove the seat side support.
14. Remove the guide box.

Reassembly
To reassembly, follow the removal steps in the reverse order.
