Cruise Control Switch: Service and Repair

Cruise Control Main Switch

Removal
1. Disconnect the battery ground cable.
2. Remove the meter cluster assembly.

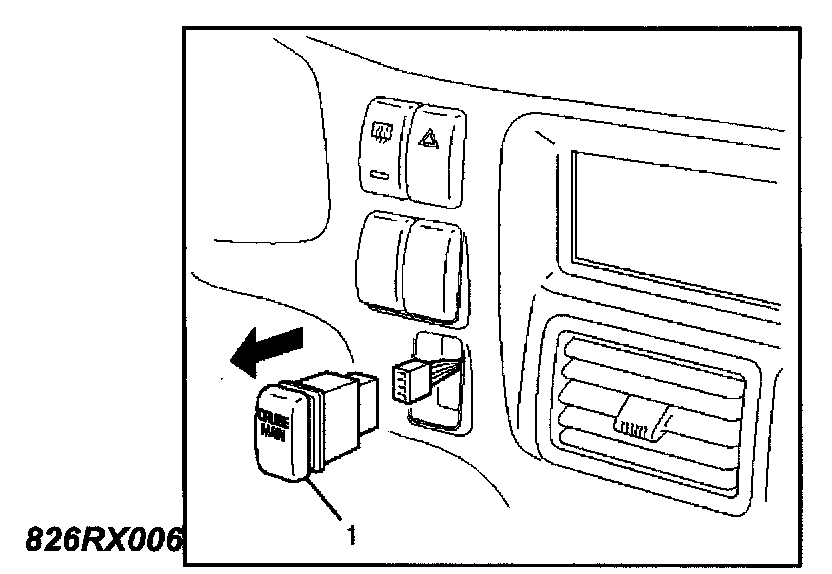

3. Remove the cruise control main switch (1).
- Disconnect the switch connector.
- Push the lock from the back side of the instrument panel cluster assembly.

Installation
To install, follow the removal steps in the reverse order.


Cruise Control Switch (Combination Switch)
Refer to Lighting Switch (Combination Switch) in Lighting System.
