Blower Assembly

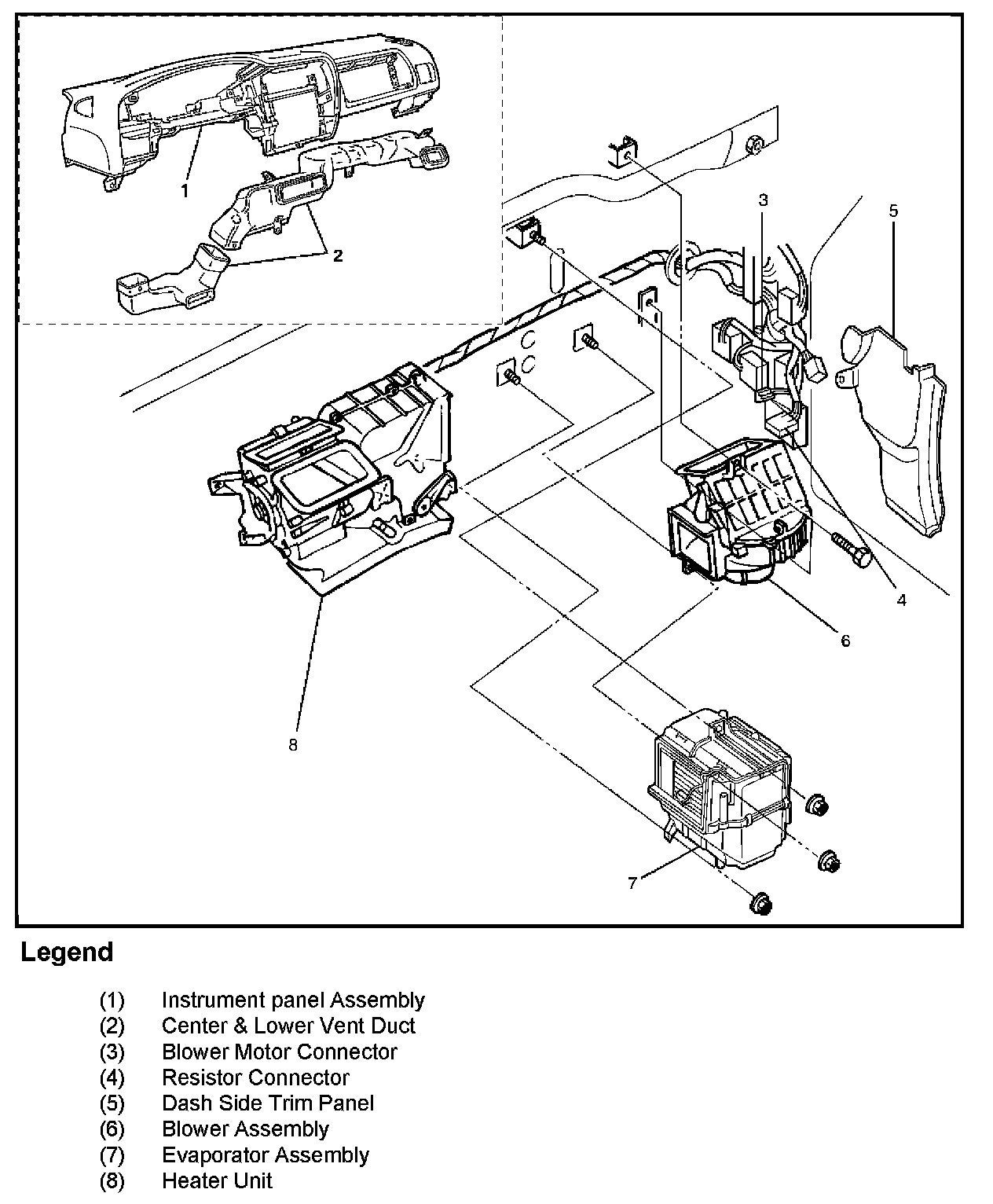

Blower Assembly And Associated Parts:

REMOVAL

1. Disconnect the battery ground cable

2. Discharge and recover refrigerant (with air conditioning).
- Refer to Refrigerant Recovery.

3. Remove instrument panel assembly.
- Refer to Instrument Panel Assembly in Body and Accessories.

4. Disconnect resistor connector.

5. Remove evaporator assembly.
- Refer to Evaporator Assembly.

6. Disconnect blower motor connector.
7. Remove blower assembly.

INSTALLATION

To install, follow the removal steps in the reverse order, noting the following point:
1. Adjust the control cables.
- Refer to Control Lever Assembly.
