Cabin Temperature Sensor / Switch: Service and Repair

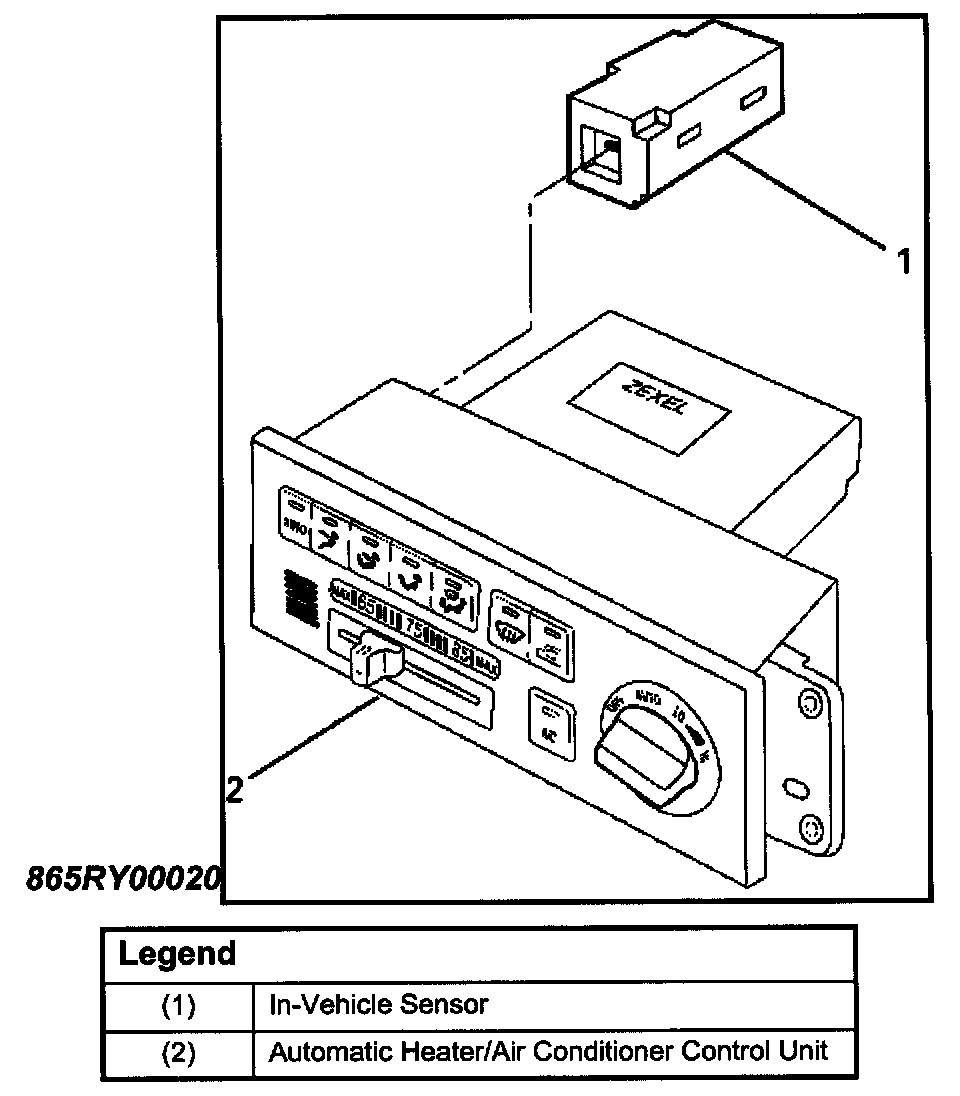

In-vehicle Sensor

In-Vehicle Sensor:

REMOVAL
1. Disconnect the battery ground cable.

2. Remove the automatic heater/air conditioner control unit.
- Refer to the automatic heater/air conditioner control unit.

3. Remove the in-vehicle sensor.

INSTALLATION
To install, follow the removal steps in reverse order.
