Condenser HVAC: Service and Repair

CONDENSER ASSEMBLY

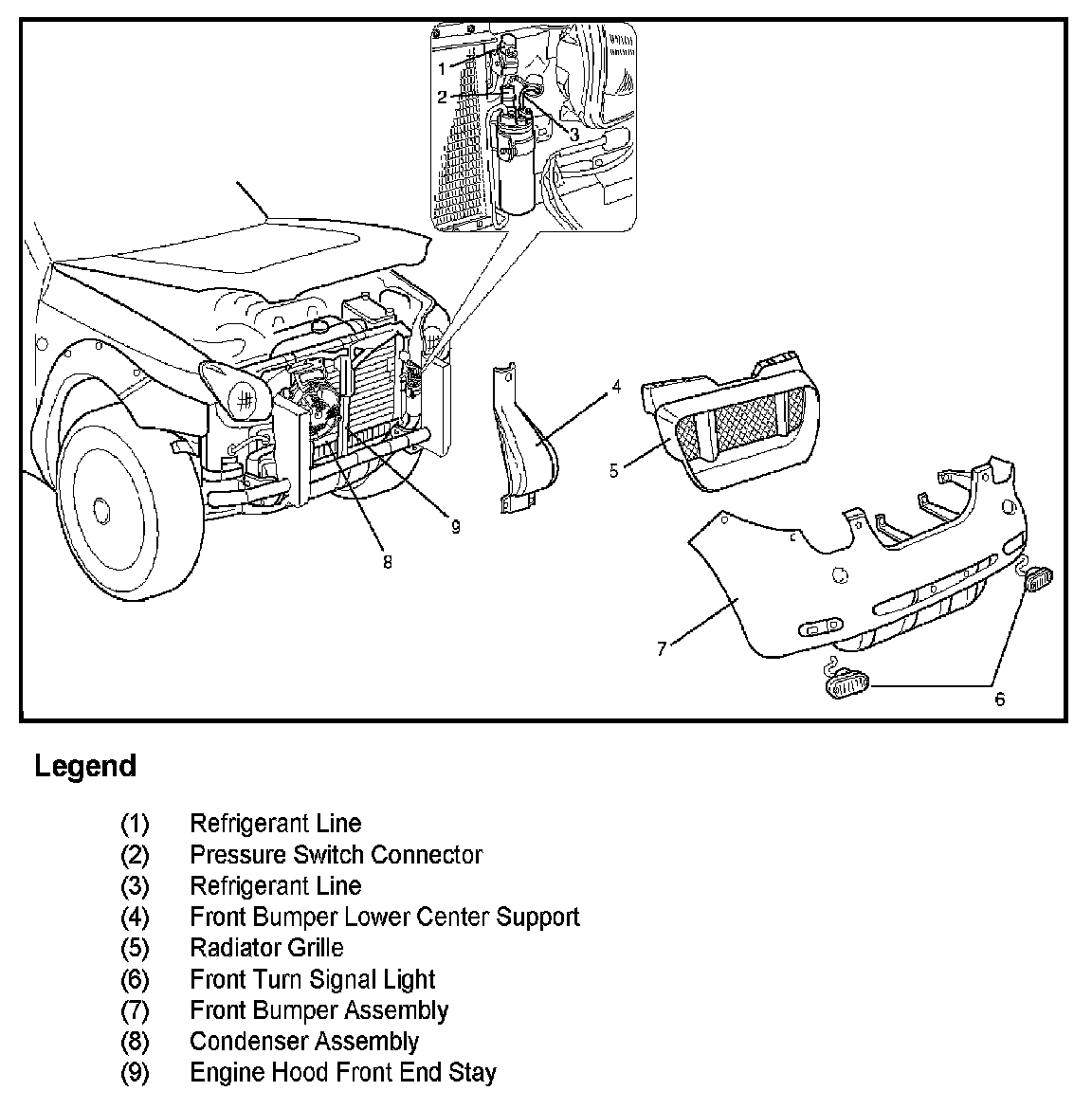

Condenser Assembly And Associated Parts:

REMOVAL
1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant.
- Refer to Refrigerant Recovery.

3. Remove radiator grille.
4. Remove front turn signal light.
5. Remove front bumper assembly.
6. Remove front bumper lower center support.

7. Remove engine hood front end stay.
- Apply setting mark to the engine hood lock fixing position before removing it.

8. Disconnect pressure switch connector.

9. Disconnect refrigerant line.
- When removing the line connector, the connecting part should immediately be plugged or capped to prevent foreign matter from being mixed into the line.

10. Remove condenser assembly.
- Handle with care to prevent damaging the condenser or radiator fin.

INSTALLATION

1. Install condenser assembly.
- If installing a new condenser, be sure to add 30 cc (1.0 fl. oz.) of new compressor oil to a new one.
- Tighten the condenser fixing bolts to the specified torque.

Torque: 6 N.m (52 lb.in)

2. Connect refrigerant line.
- Tighten the inlet line connector fixing bolt to the specified torque.

Torque: 15 N.m(11 lb.in)

- Tighten the outlet line connector fixing bolt to the specified torque.

Torque: 6 N.m (52 lb.in)

- O-rings can not be reused. Always replace with new ones.
- Be sure to apply new compressor oil to the O-rings when connecting the refrigerant line.

3. Connect pressure switch connector.
4. Install engine hood front end stay.
5. Install front bumper lower center.
6. Install front bumper assembly.
7. Install front turn signal light.
8. Install radiator grille.
