Control Assembly: Testing and Inspection

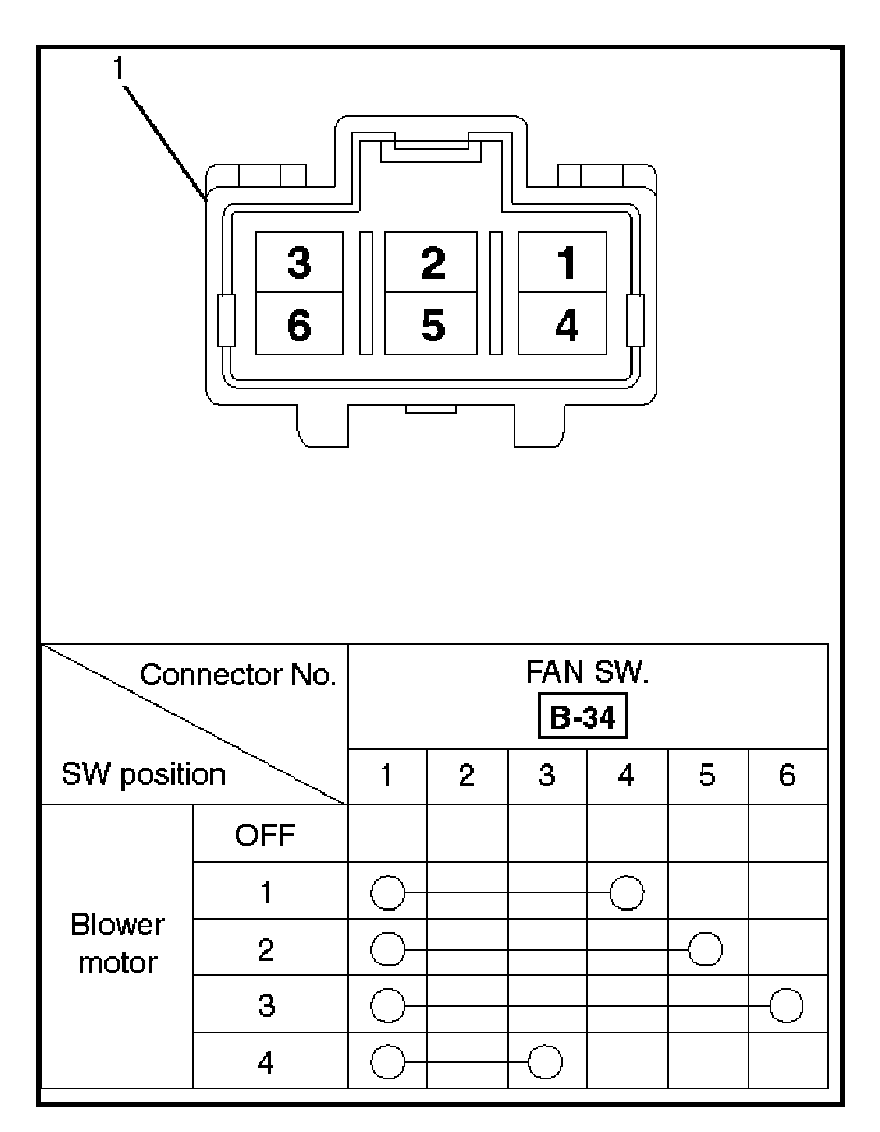

Fan Control Lever (Fan Switch)
1.
Check for continuity between the terminals of the fan control lever (1).
