Coolant Temperature Sensor / Switch HVAC: Service and Repair
Thermo UnitREMOVAL 1.
Disconnect the battery ground cable.
2.

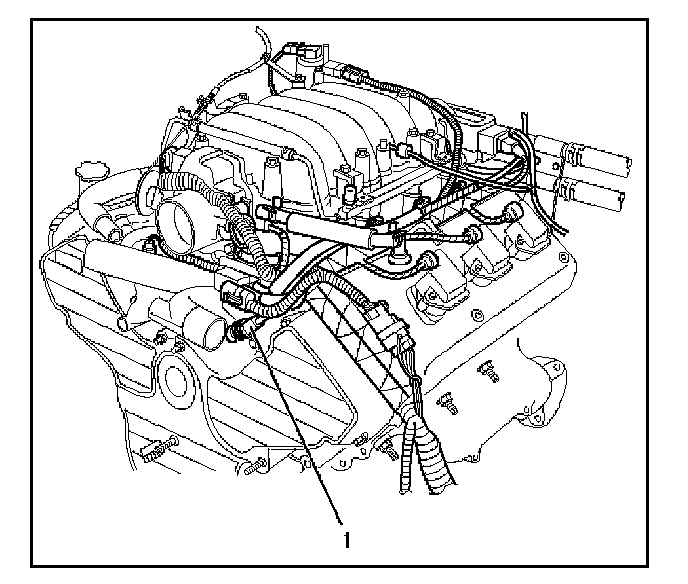

Remove the
thermo unit(1).
-
Disconnect the connector. Rotate the
thermo unit counterclockwise.
INSTALLATIONTo install, follow the removal steps in the reverse order, nothing the following point.
Tighten the
thermo unit to the specified torque.
Torque:
30 N.m (22 lb.ft)
