Heater Core: Locations

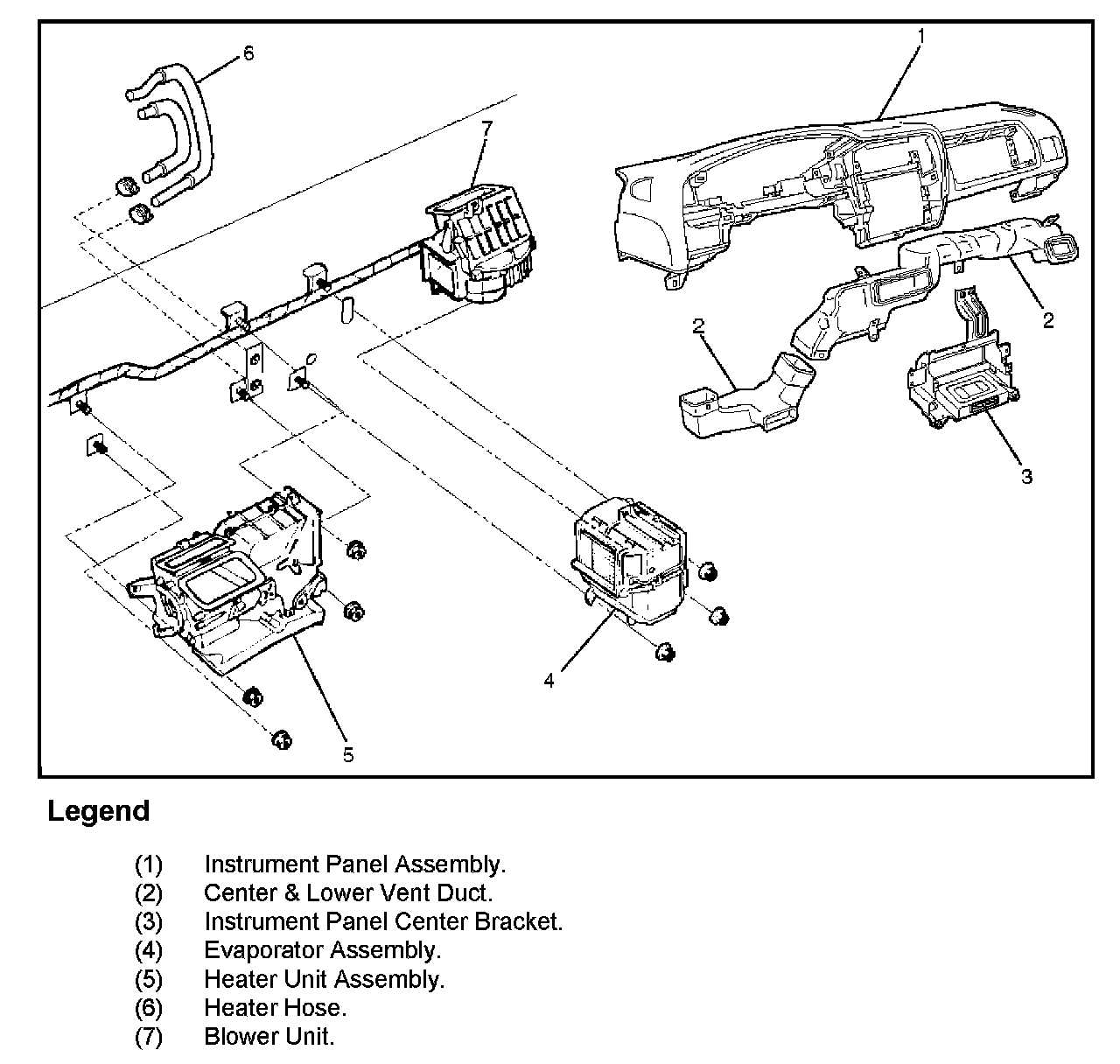

Heater Unit And Associated Parts:



Heater Core And/or Mode Door - Disassembled View:

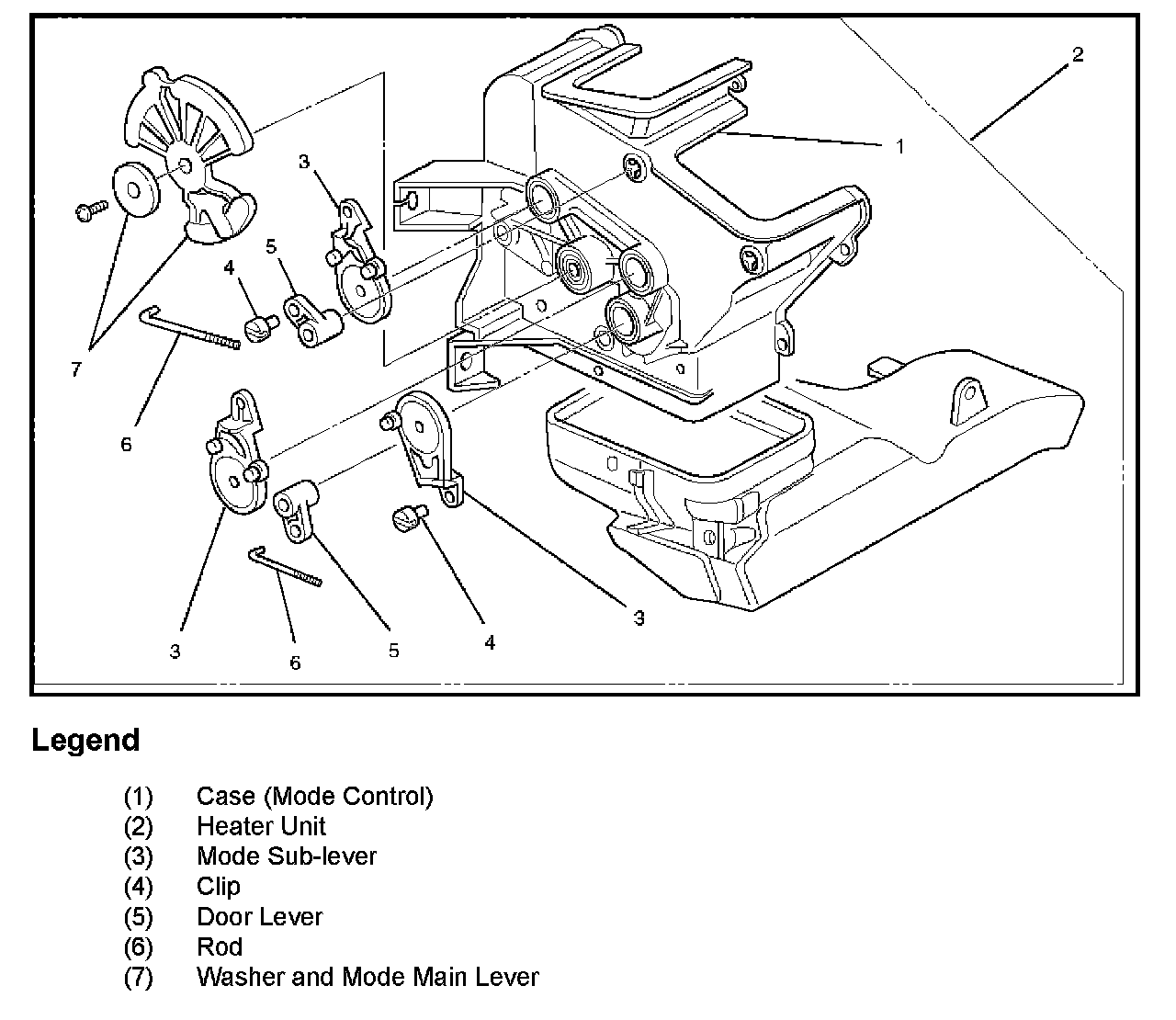

Heater Mode Control Link Unit:

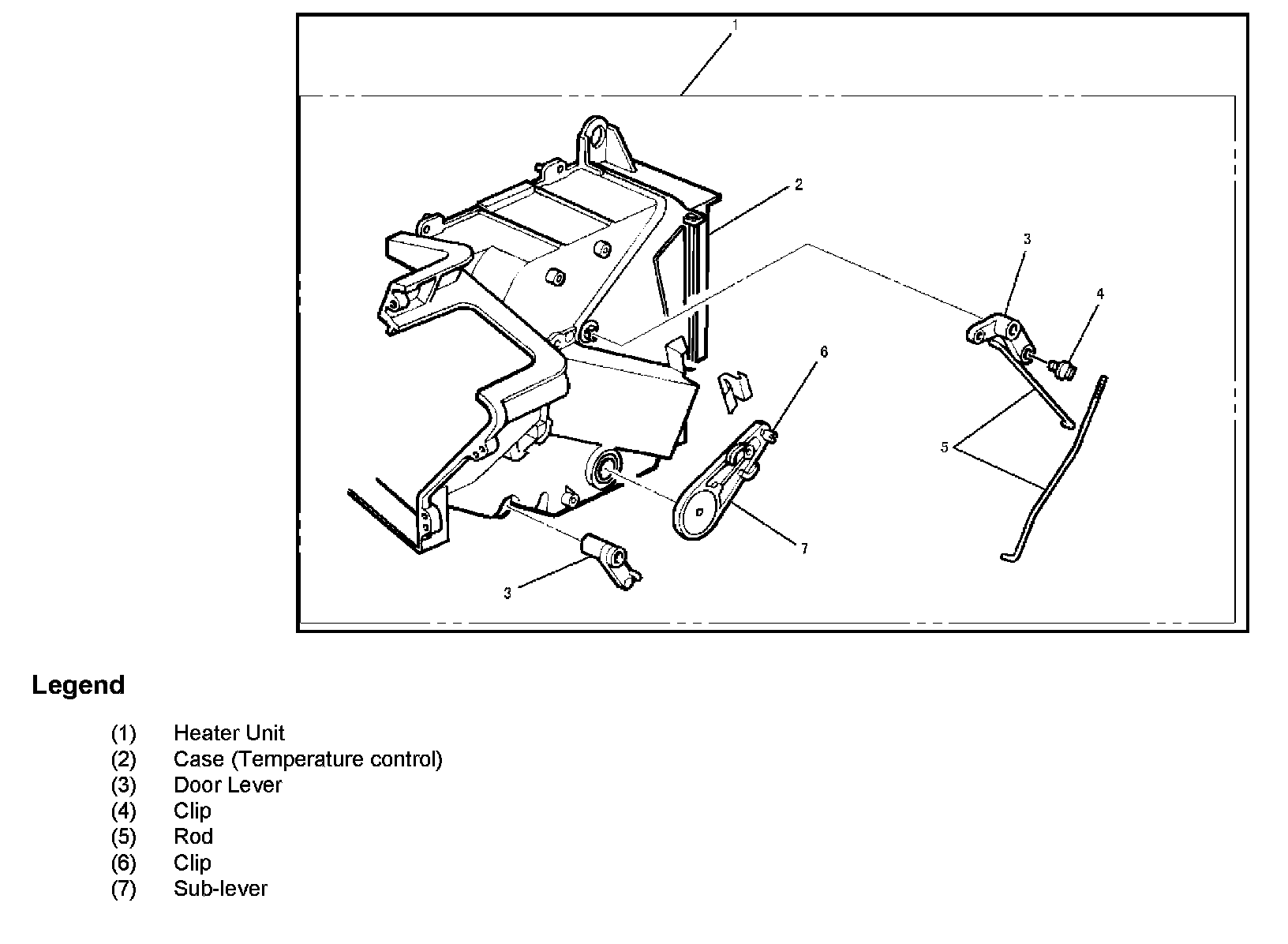

Heater Temperature Control Link Unit - Disassembled View:
