Power Transistor HVAC: Service and Repair

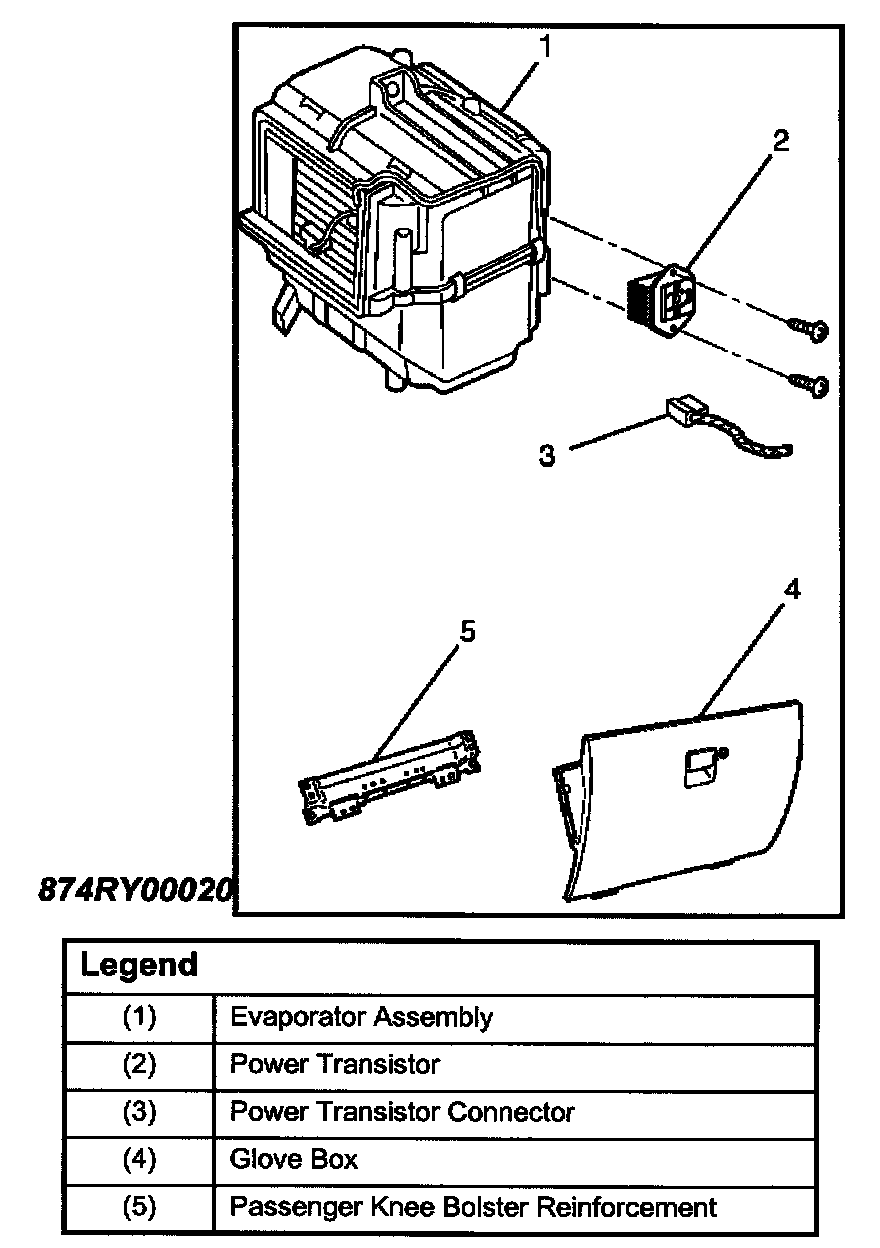

Power TransistorPower Transistor:
REMOVAL 1.
Remove glove box
2.
Remove passenger knee bolster reinforcement.
3.
Disconnect the power transistor connector
4.
Remove power transistor
INSTALLATIONTo install, follow the removal step in reverse order.
