Solar Sensor: Service and Repair

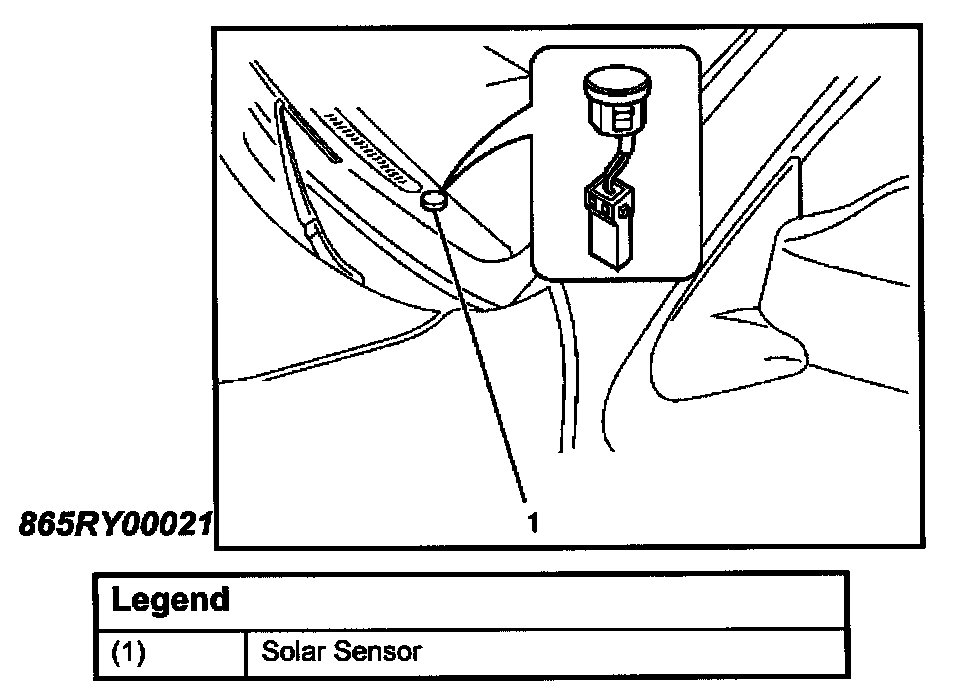

Solar Sensor

Solar Sensor:






REMOVAL
1. Disconnect the battery ground cable.
2. Remove the solar sensor.
3. Disconnect the solar sensor connector.

INSTALLATION
To install, follow the removal step in reverse order.
